M12SWA-TF User's Manual
2.6 Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specically for use
with Supermicro chassis. See the gure below for the location of JF1..
Power Button
UID LED
1
NIC1 Link LED
Reset Button
2
HDD LED
PWR LED
Reset
PWR
3.3V
3.3V Stby
3.3V Stby
Ground
Ground
1920
X
NMI
X
3.3V Stby
3.3 V
3.3V Stby
Power Fail LED
NIC2 Link LED
X

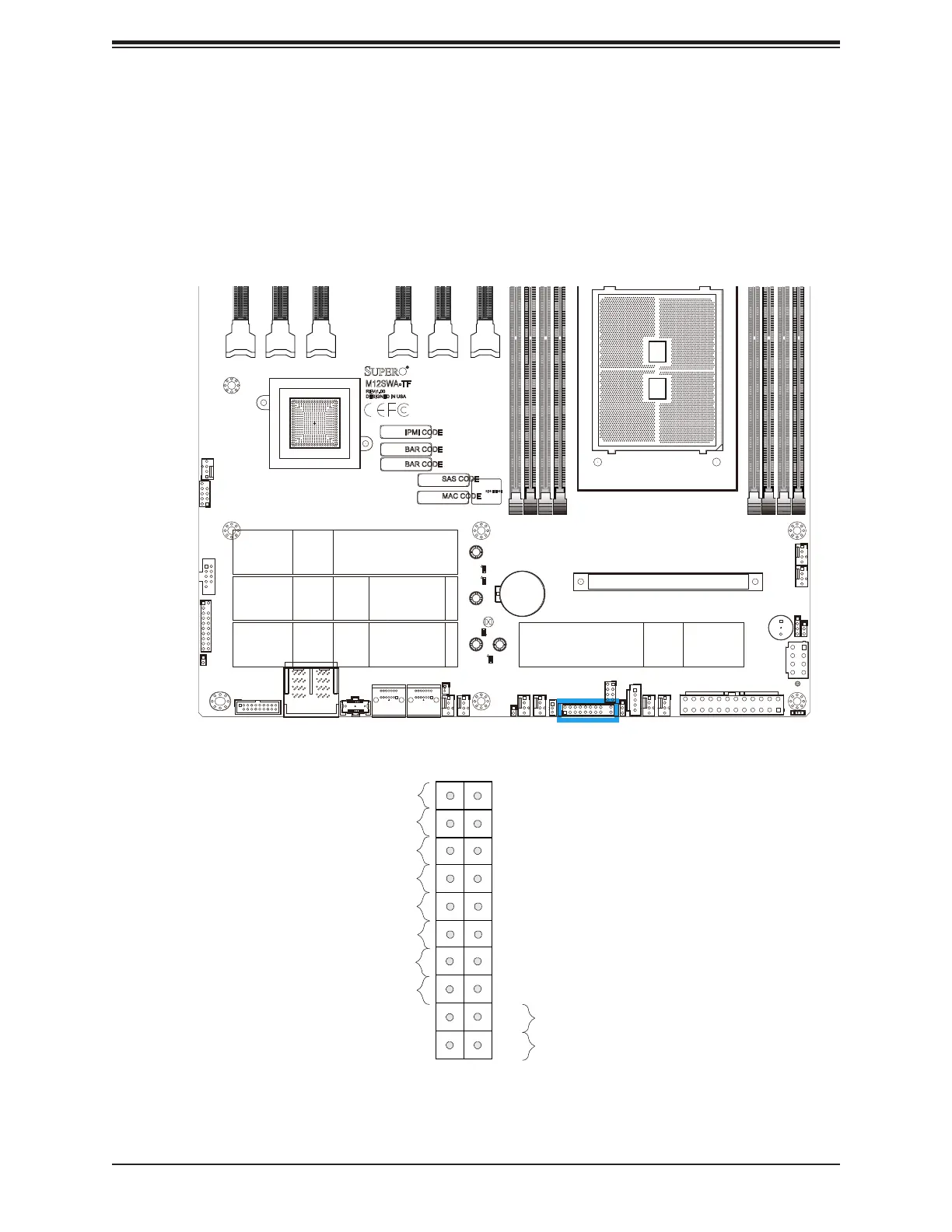

Figure 2-2. JF1 Pin Denitions
BAR CODE
BAR CODE
M12SWA-TF
REV:1.00
DESIGNED IN USA
BIOS LICENSE
IPMI CODE
MAC CODE
SAS CODE
