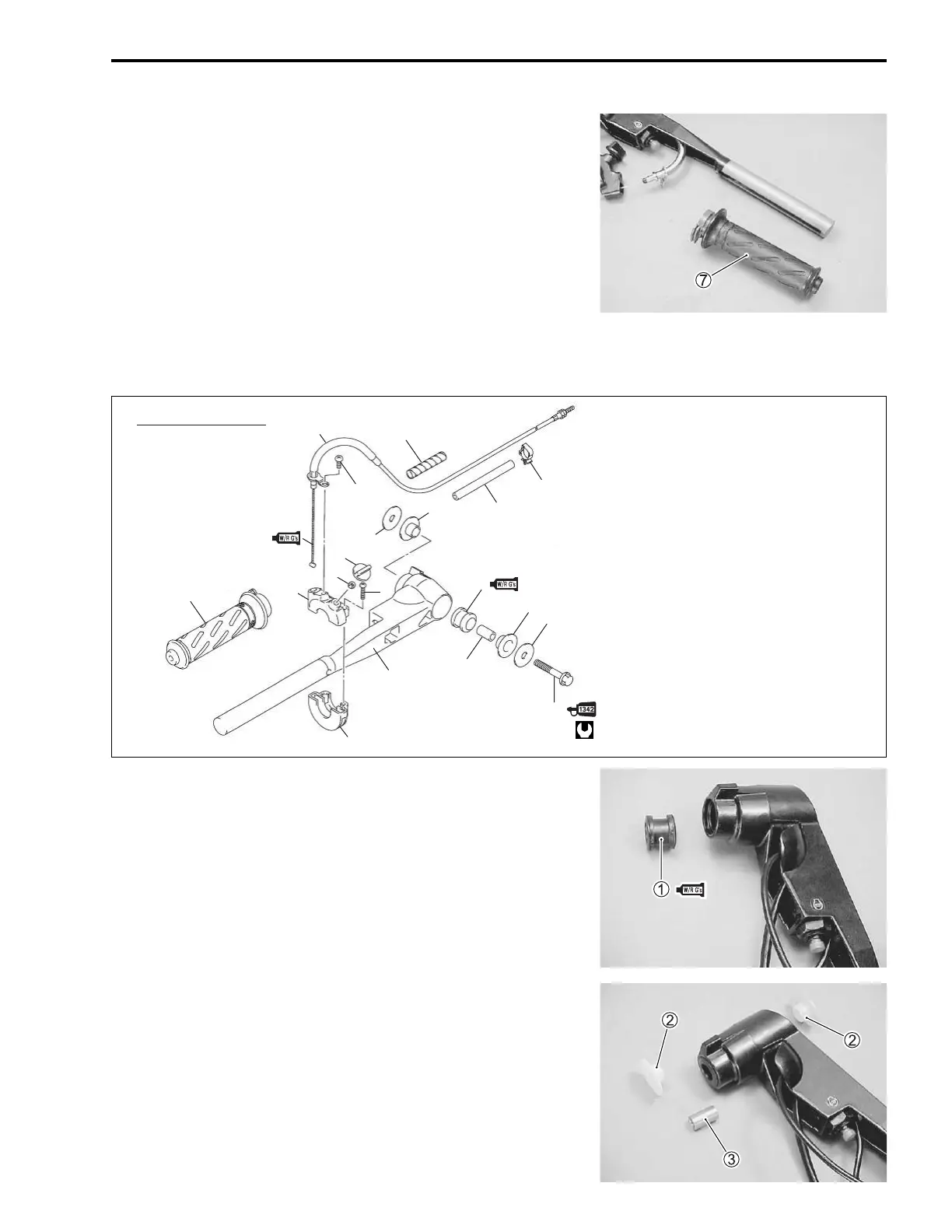

Suzuki DF 2.5 Service Manual

MID UNIT 7-13
• Remove the throttle grip 7 from the tiller handle.
REASSEMBLY
Reassembly is reverse order of disassembly with the special
attention to the following steps.
• Apply the Water Resistant Grease to the throttle handle
mount 1.
 99000-25161: SUZUKI WATER RESISTANT GREASE
• Install the throttle handle mount 1 in position.
• Install the throttle handle spacer 3 and the throttle handle
bushings 2.
2
4
1
9
12
8
16
6
5
7
10
11
14
13
11
10
15
17
3
Consisting parts
17 N
.
m
(1.7 kg-m, 12.5 lb-ft)
1. Tiller handle
2. Throttle grip
3. Throttle case upper
4. Throttle case lower
5. Throttle adjust knob
6. Throttle adjust knob nut
7. Throttle cable screw
8. Throttle handle mount
9. Throttle handle spacer
10. Throttle handle bush
11. Throttle handle washer
12. Handle pivot bolt
13. Throttle cable assy
14. Throttle cable screw
15. Throttle cable tube
16. Throttle cable protector
17. Throttle cable clamp

Suzuki DF 2.5 Specifications

General

Engine Type	OHV
Fuel System	Carburetor
Starting System	Manual
Engine Mounting	Bushing Type
Gear Ratio	2.15:1
Gear Shift	F-N
Exhaust	Above Prop Exhaust
Maximum Output	1.8 kW (2.5 PS)
Ignition System	CDI
Fuel Tank Capacity	1.0 L
Weight	13.5 kg
Full Throttle Operating Range	5, 250 rpm
Trim Method	Manual
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
