Suzuki DF 2.5 Service Manual

FUEL SYSTEM 4-11

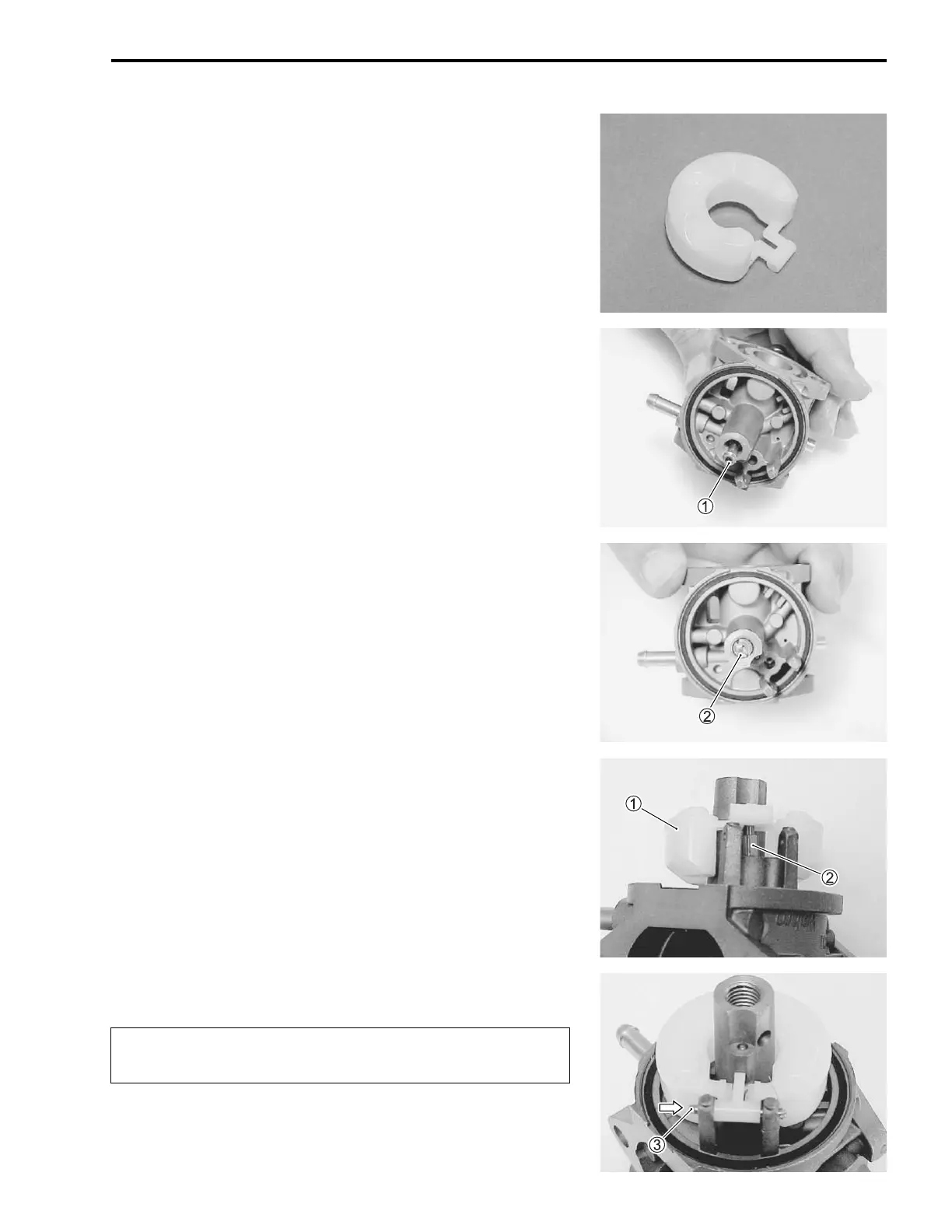

FLOAT
Inspect the float.
If crack or other damage is found, replace the float.
REASSEMBLY
Reassembly is reverse order of disassembly with the special
attention to the following steps.
MAIN JET AND MAIN NOZZLE
Install the main nozzle 1 to the carburetor body before installing
the main jet 2.
FLOAT
1. Install the float 1 with need valve 2.
2. Install the float pin 3.

Always install the float pin from the left side to the
right side. (See the figure.)

Suzuki DF 2.5 Specifications

General

Engine Type	OHV
Fuel System	Carburetor
Starting System	Manual
Engine Mounting	Bushing Type
Gear Ratio	2.15:1
Gear Shift	F-N
Exhaust	Above Prop Exhaust
Maximum Output	1.8 kW (2.5 PS)
Ignition System	CDI
Fuel Tank Capacity	1.0 L
Weight	13.5 kg
Full Throttle Operating Range	5, 250 rpm
Trim Method	Manual
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
