LOWER UNIT 8-3

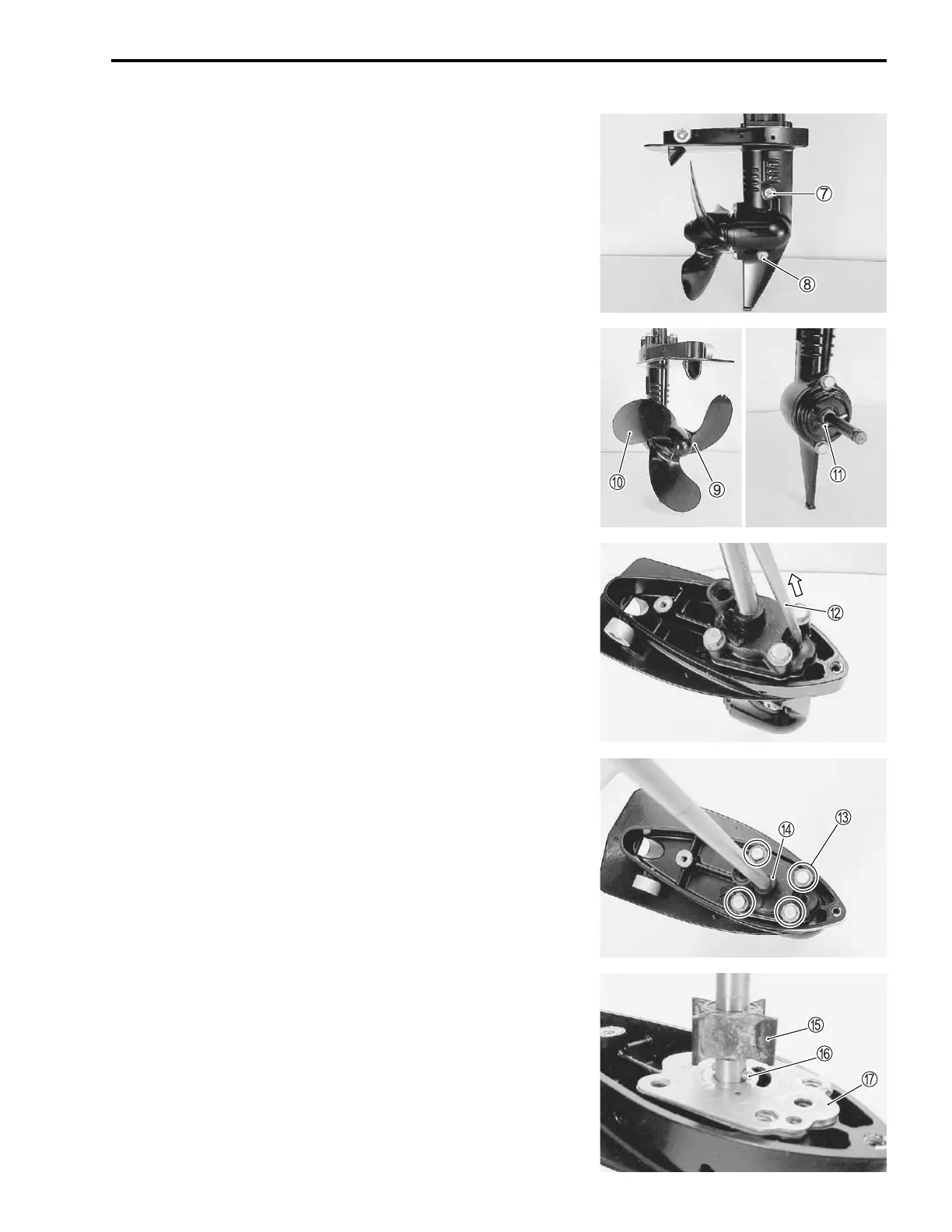

7. Remove the gear oil drain plug 8 before the gear oil level
plug 7 and drain the gear oil.
8. Remove the cotter pin 9 then detach the propeller 0.
9. Remove the shear pin A.
10. Pull out the shift rod B.
11. Remove the four bolts C.
12. Remove the pump case D.
13. Remove the following parts.
• Water pump impeller E
•Key F
• Pump under panel G

Suzuki DF 2.5 Specifications

General

Engine Type	OHV
Fuel System	Carburetor
Starting System	Manual
Engine Mounting	Bushing Type
Gear Ratio	2.15:1
Gear Shift	F-N
Exhaust	Above Prop Exhaust
Maximum Output	1.8 kW (2.5 PS)
Ignition System	CDI
Fuel Tank Capacity	1.0 L
Weight	13.5 kg
Full Throttle Operating Range	5, 250 rpm
Trim Method	Manual
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
