Suzuki DF 2.5 Service Manual

6-32 POWER UNIT

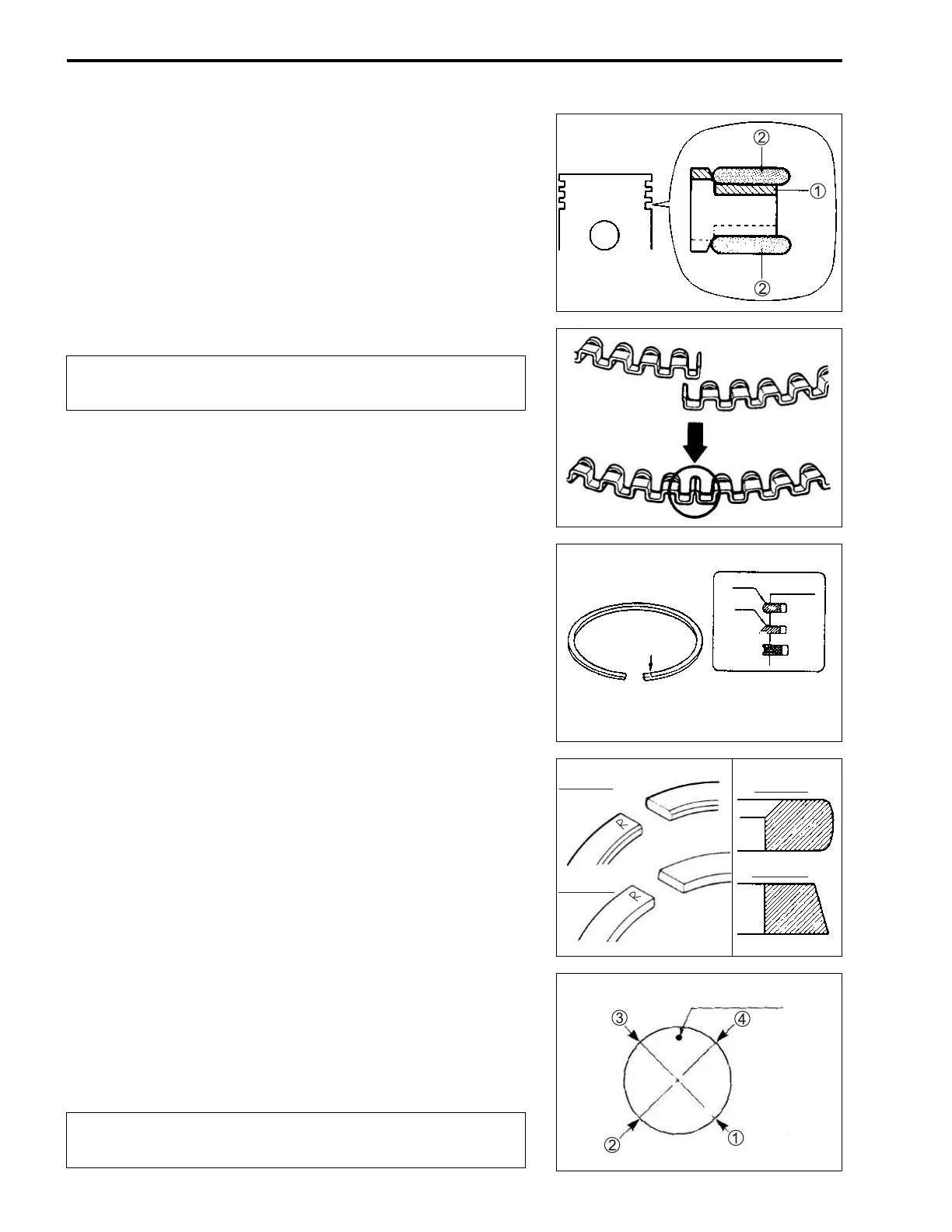

PISTON RING TO PISTON
Oil ring
1. Apply engine oil to the piston rings.
2. Install the spacer 1 first, then the side rails 2 to the piston.

1st ring and 2nd ring
1. Apply engine oil to the piston rings.
2. Install the 2nd ring and the 1st ring to the piston with the “R”
mark toward the piston head side.
NOTE:
The 1st ring differs from the 2nd ring in shape.
Distinguish the 1st ring from the 2nd ring by referring to the fig-
ure.
Ring gap direction
Position the piston rings so that the ring gaps are staggered at
approximately 90 degree angles as shown in the figure.
1 1st ring 3 2nd ring
2 Oil ring lower side rail 4 Oil ring upper side rail

When installing the spacer, do not allow the ends to
overlap in the groove.
Incorrect
Correct
“R”
“R”
1
2
3
Mark
1. 1st ring
2. 2nd ring
3. Oil ring
1st ring
1st ring
2nd ring
2nd ring
Failure to a stagger the piston ring gaps may result in
the crankcase oil dilution.
Up mark “O”

Suzuki DF 2.5 Specifications

General

Engine Type	OHV
Fuel System	Carburetor
Starting System	Manual
Engine Mounting	Bushing Type
Gear Ratio	2.15:1
Gear Shift	F-N
Exhaust	Above Prop Exhaust
Maximum Output	1.8 kW (2.5 PS)
Ignition System	CDI
Fuel Tank Capacity	1.0 L
Weight	13.5 kg
Full Throttle Operating Range	5, 250 rpm
Trim Method	Manual
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
