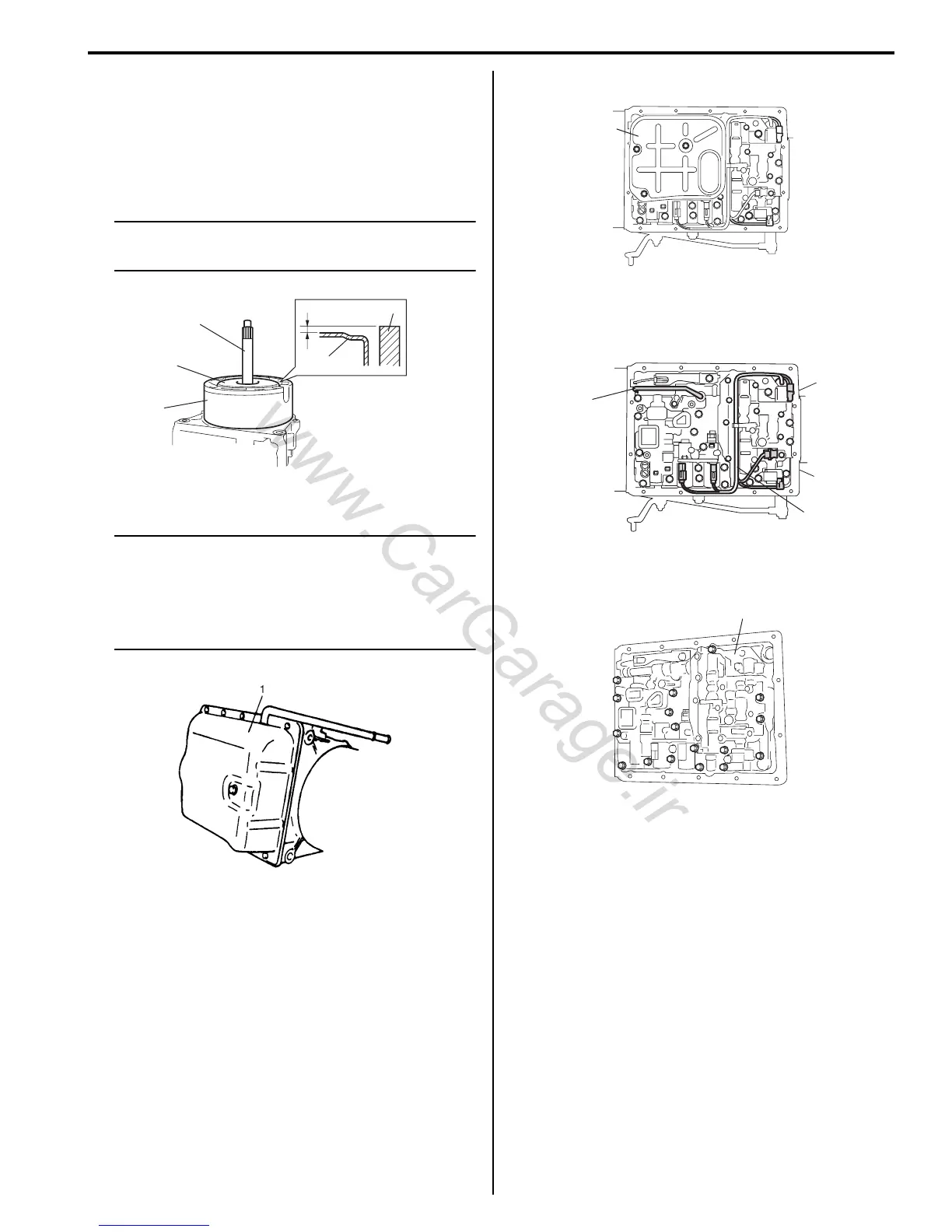

Automatic Transmission/Transaxle: 5A-99
10) Check dimensions of overdrive (O/D) case (1)
surface and clutch cylinder (2) surface for
reassembly.
11) Remove overdrive (O/D) clutch assembly by holding
input shaft (3).
12) Remove O/D case, bearing and bearing race.
NOTE
Confirm direction of bearing and bearing
race for reassembly.
13) Remove oil pan (1).
NOTE
• Hold oil pan with oil pan side down to
prevent foreign material in oil pan from
entering valve body.
• If iron powder is found, it is possible that
bearing, gear or clutch plate is worn.
14) Remove oil strainer (1).
15) Remove overdrive (O/D) brake apply tube (1).
16) Disconnect couplers, and then remove transmission
wire connector (2).
17) Remove valve body (1) mounting bolts as shown in
the figure.
1
2
3
2
1
I5JB0A510074-01
IYSQ01510094-01
1
I5JB0A510075-01
1
2
I5JB0A510077-02
1
I5JB0A510076-01
