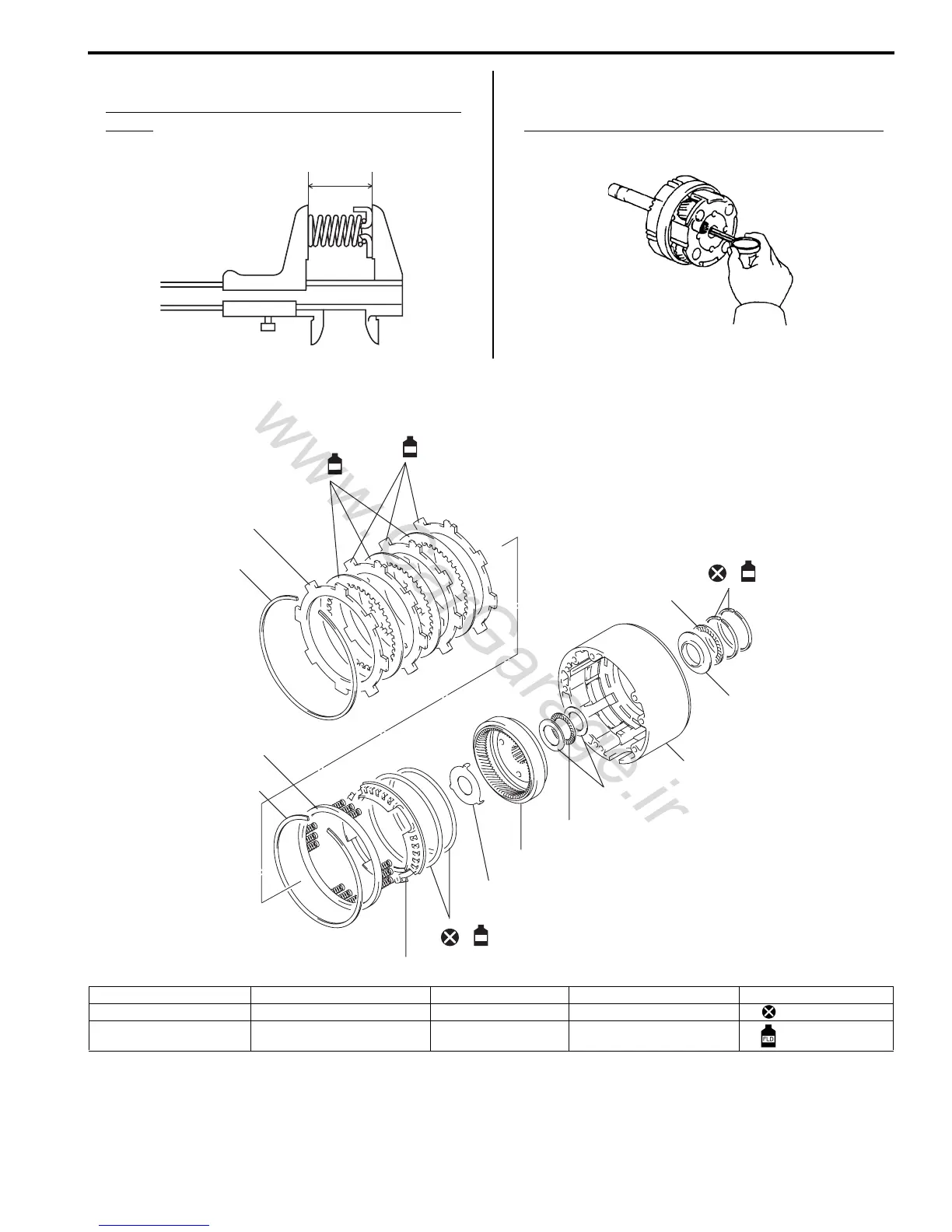

Automatic Transmission/Transaxle: 5A-109
• Measure free length of piston return spring.
Standard free length of O/D clutch piston return
spring
16.9 mm (0.665 in.)
• Measure inside diameter of planetary gear bushing. If
inside diameter exceeds limit, replace planetary gear.
Planetary gear bushing inside diameter standard
11.200 – 11.221 mm (0.4409 – 0.4418 in.)
Overdrive (Case Side) Components
S5JB0A5106074
I5JB0A510171-01
I5JB0A510149-01
1
FLD
13
FLD
12
FLD
6
FLD
8
7
9
5
2
3
4
3
2
10
11
10
I5JB0A510103-01
1. Sealing 4. O/D case 7. Brake piston 10. Retaining ring 13. Brake plate
2. Bearing 5. Planetary ring gear 8. Return spring 11. Brake backing plate : Do not reuse.
3. Bearing race 6. O-ring 9. Thrust washer 12. Brake disc : Apply A/T fluid.
