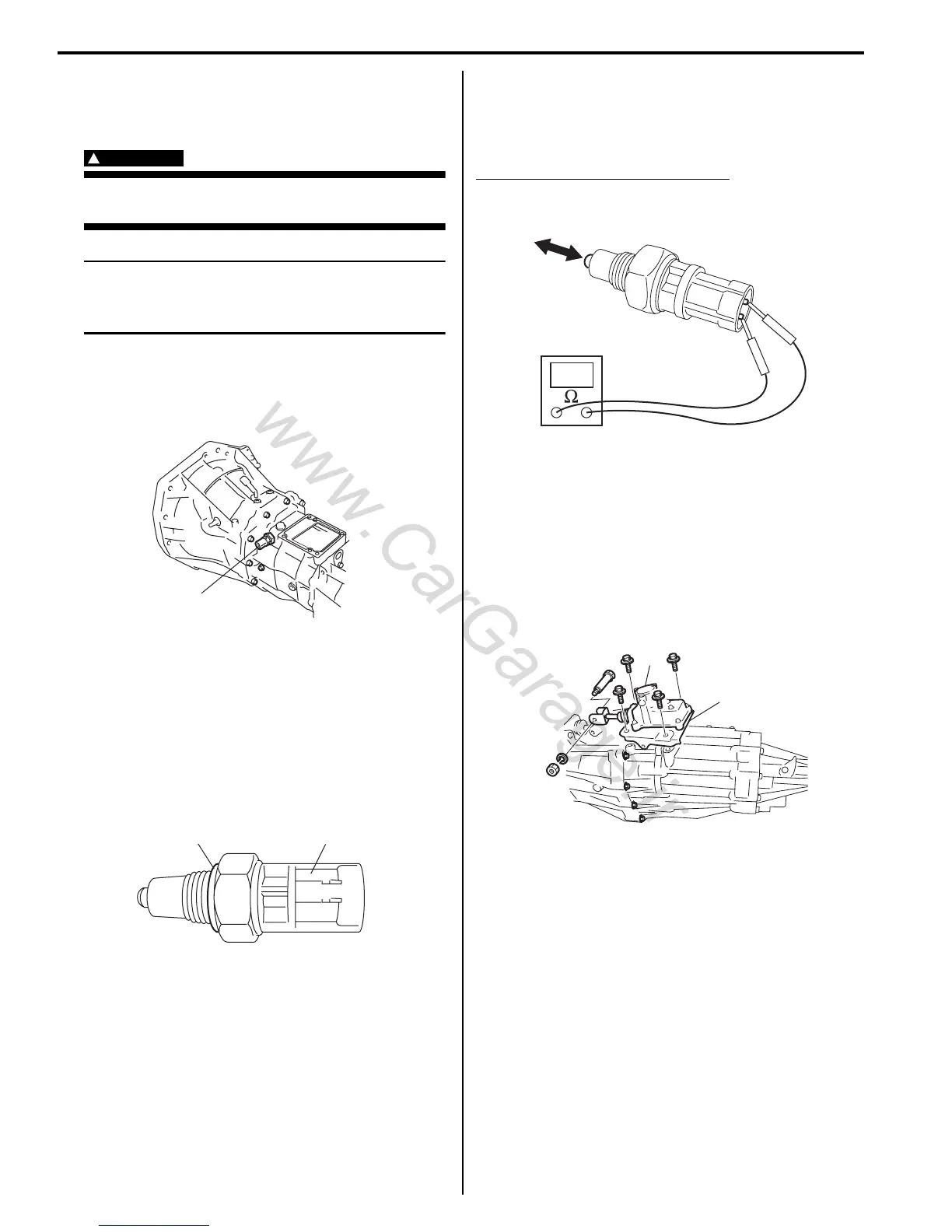

5B-11 Manual Transmission/Transaxle:
Back Up Light Switch Removal and Installation
S5JB0A5206007
Removal
WARNING
!
Refrain from work while exhaust No.2 pipe is
hot.
NOTE
• When replacing switch, use care not to let
dust enter transmission through switch
hole.
1) Hoist vehicle and disconnect connector from back up
light switch.
2) Remove back up light switch (1) from transmission
rear case.
Installation
Reverse removal procedure for installation noting the
following.
• Apply oil to new O-ring (1) and then install back up
light switch to transmission rear case.
Tightening torque
Back up light switch (a): 23 N·m (2.3 kgf-m, 17.0 lb-
ft)
• Check back up light for proper function with ignition
switch turned ON and reverse position.
Back Up Light Switch Inspection
S5JB0A5206008
Check back up light switch for function using ohmmeter.
If resistance is not as specified below, replace back up
light switch.
Back up lamp switch specification
Switch ON (Push): Continuity
Switch OFF (Release): No continuity
Gear Shift Control Lever Rear Case Assembly
Removal and Installation
S5JB0A5206028
Removal
1) Dismount transmission assembly from vehicle
referring to “Manual Transmission Assembly
Dismounting and Remounting: ”
2) Remove gear shift control lever rear case assembly
(1) with plate (2) from transfer case.
1
I5JB0A520005-01
1 2, (a)
I5JB0A520004-01
I5JB0A520006-01
1
2
I5JB0A520007-02
