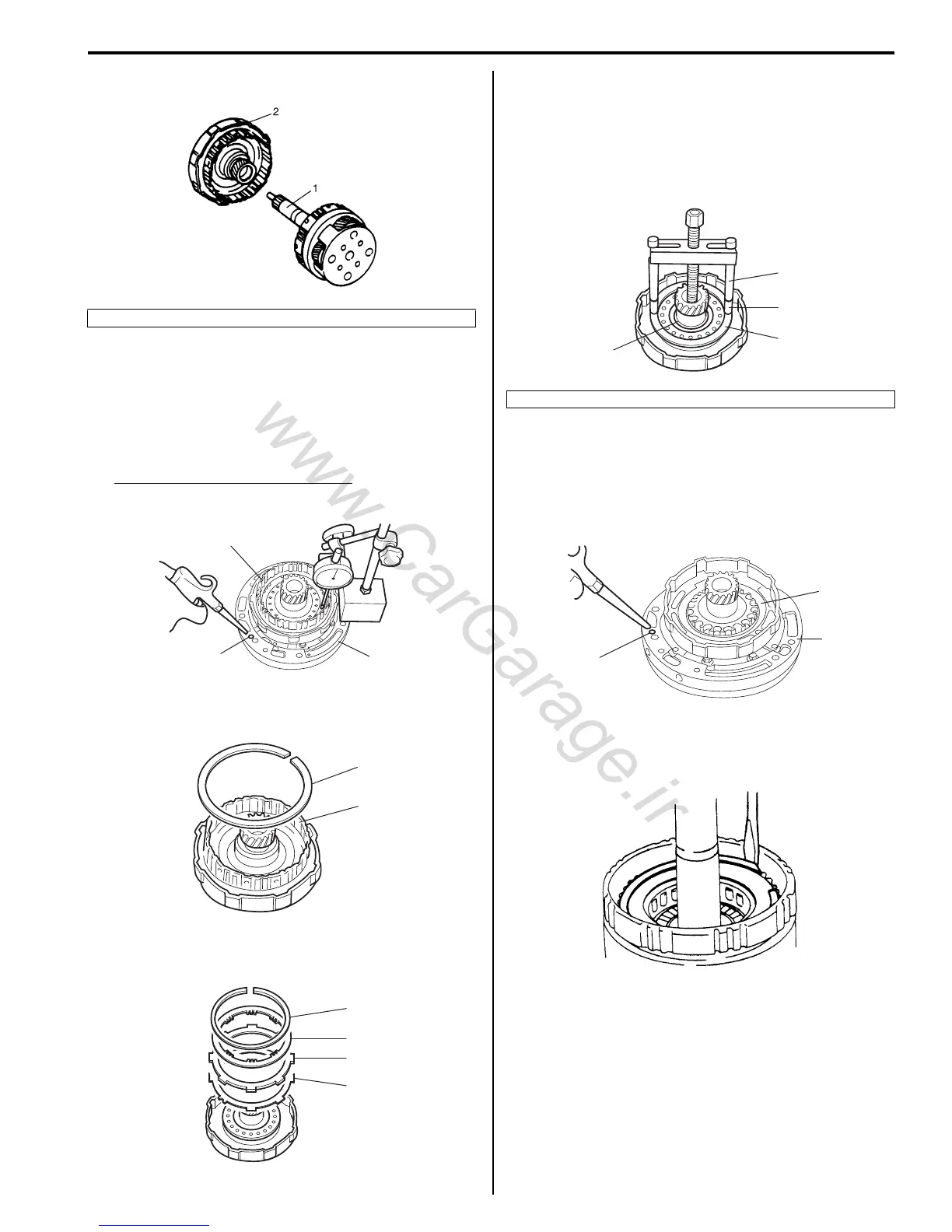

Automatic Transmission/Transaxle: 5A-107
2) Remove O/D planetary gear assembly (1).
3) With O/D clutch assembly (2) installed to oil pump,
apply compressed air (400 – 800 kPa, 4 – 8 kg/cm
2
,
57 – 113 psi) to oil hole (3) in oil pump (1) and
measure stroke of clutch piston. If it is not within
standard range, replace cushion clutch plate or
clutch disc.
Standard stroke of clutch piston
1.74 – 2.44 mm (0.069 – 0.096 in.)
4) Remove retaining ring (1) and then remove brake
hub (2).
5) Remove retaining ring (1) cushion plate (2), clutch
plate (3) and clutch disc (4) in that order.
6) With clutch piston return spring compressed with
special tools, remove clutch piston return spring.
Special tool
(A): 09918–48211
(B): 09926–98320
(C): 09918–48220
7) Install O/D clutch cylinder to oil pump (2). Apply
compression air into fluid hole (3) in oil pump (2) and
remove clutch piston (1).
8) Remove piston inner O-ring and piston outer O-ring
from clutch piston (1).
9) Remove retaining ring from O/D planetary gear and
then remove one-way clutch, thrust washer and
thrust bearing.
2. O/D clutch cylinder
IYSQ01510121-01
2
3
1
I5JB0A510097-01
1
2
I5JB0A510098-01
1
4
3
2
I5JB0A510099-01
1. Snap ring
(C)
1
(A)
(B)
I5JB0A510100-01
1
2
3
I5JB0A510101-01
IYSQ01510127-01
