Automatic Transmission/Transaxle: 5A-113

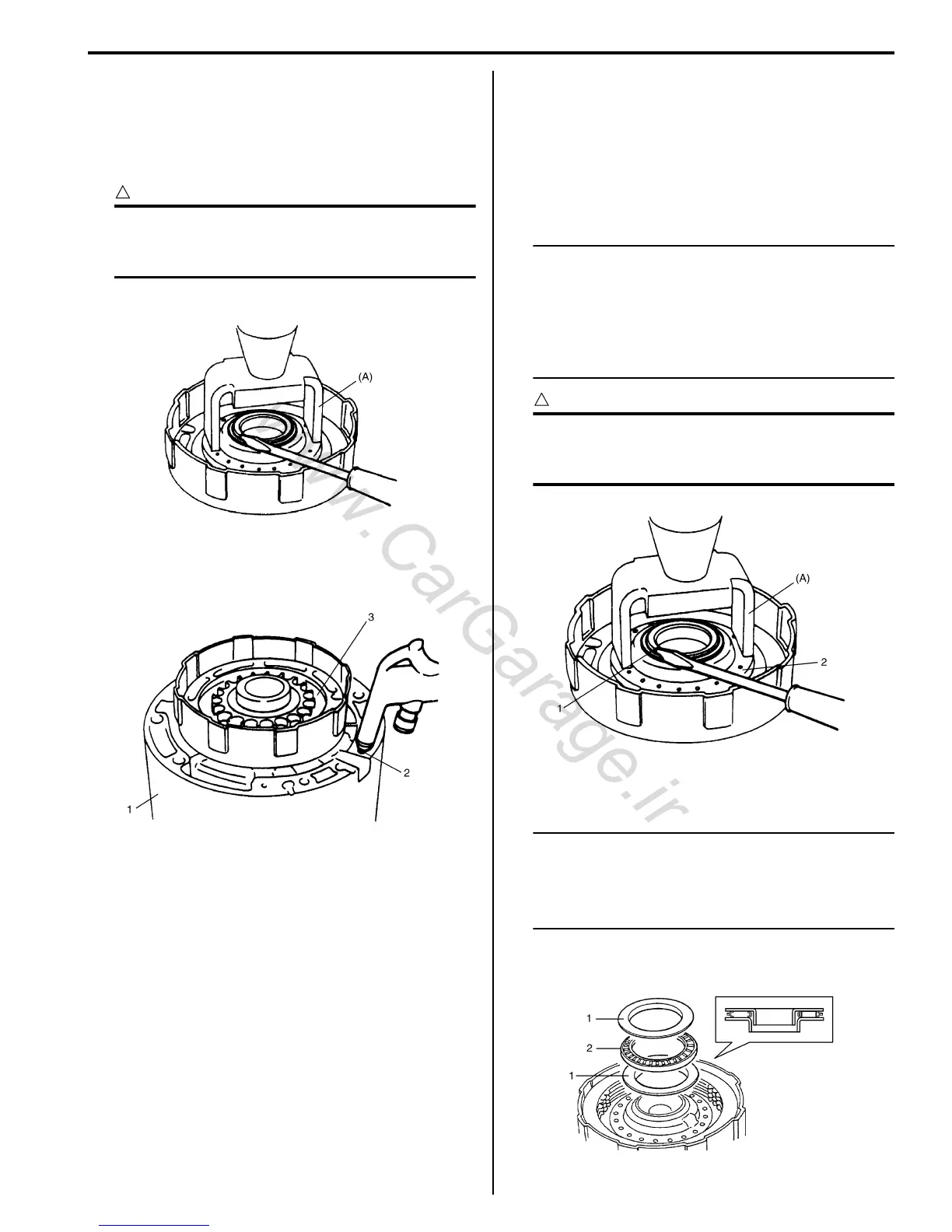

4) Using special tool and hydraulic press, compress
forward clutch piston return spring and remove
retaining return spring.
Special tool
(A): 09926–98310
CAUTION
!
Be careful when applying pressure, for
overpressure will cause plate section of
piston return spring to deform.
5) Remove forward clutch piston return spring.
6) Install forward clutch to O/D case (1). Blow low
pressure air into fluid hole (2) at the right of cut in O/
D case to remove forward clutch piston (3).
Assembly
1) Apply A/T fluid to forward input shaft O-rings, install
forward clutch piston and piston return spring (2) to
forward input shaft and then install return spring ring
with special tool and hydraulic press.
Special tool
(A): 09926–98310
NOTE
• When installing return spring (2), be
careful so that return spring will not fall or
tilt.
• Do not align opening in retaining ring (1)
with lug of forward clutch piston return
spring at its retainer section.
CAUTION
!
Be careful when applying pressure, for
overpressure will cause plate section of
piston return spring to deform.
2) Install clutch discs and plates and then install
retaining clutch ring.
NOTE
• Refer to “Forward Clutch Components: ”
when installing each component.
• Do not match opening in retaining clutch
ring and dent in forward clutch input shaft.
3) Install bearing races (1) and thrust bearing (2).
IYSQ01510148-01
I5JB0A510110-01
IYSQ01510150-01
I5JB0A510111-01
