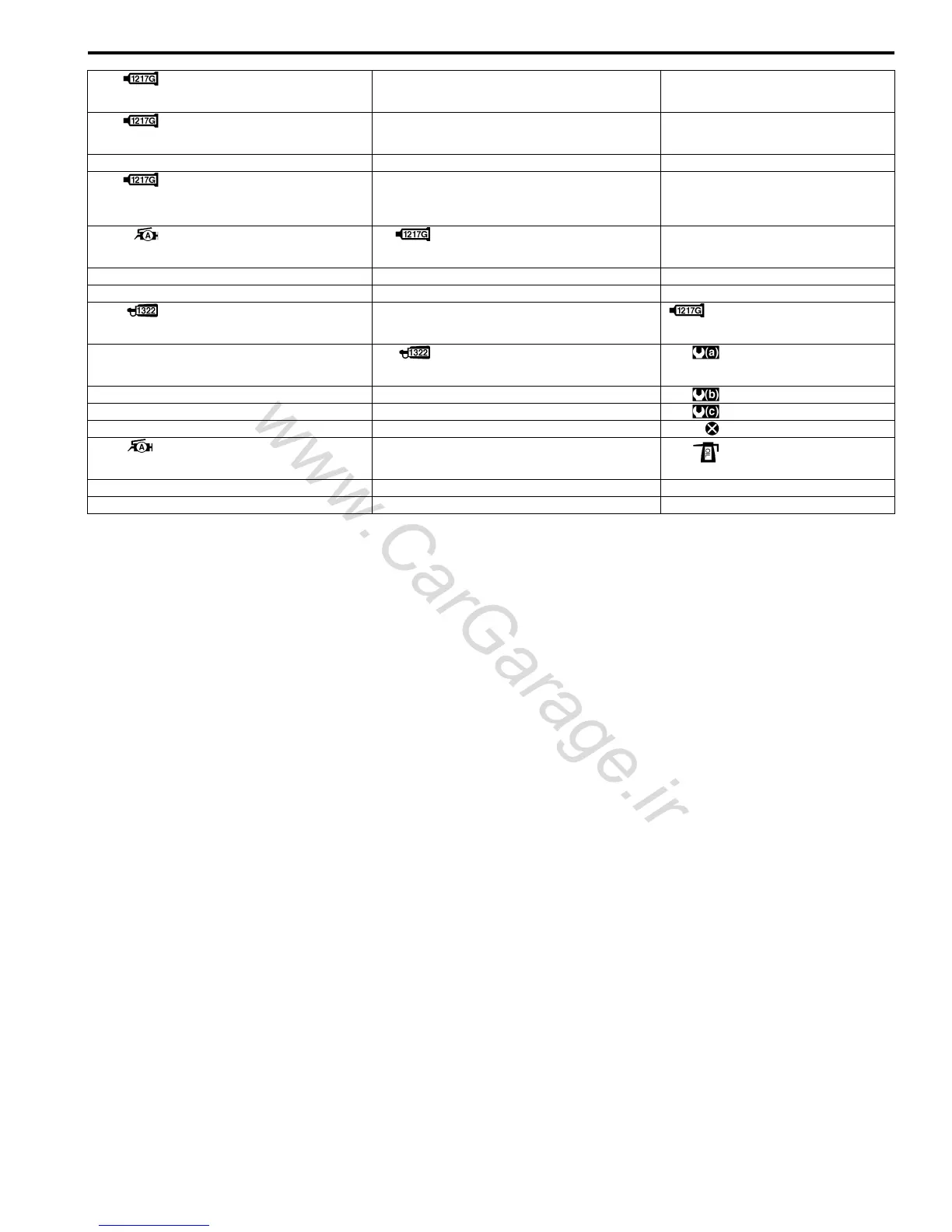

Manual Transmission/Transaxle: 5B-4
1. Transmission front case
: Apply sealant 99000-31260 to mating
surface of front case and rear case.
16. Reverse gear shift lever 31. 5th speed synchronizer ring
2. Transmission rear case
: Apply sealant 99000-31260 to mating
surface of rear case and adapter case.
17. Reverse shift locating 32. Input shaft needle bearing
3. Adapter case 18. O-ring 33. Output shaft assembly
4. Gear shift lever front case assembly
: Apply sealant 99000-31260 to mating
surface of rear case and gear shift
lever front case assembly.
19. Back up light switch 34. Transmission to engine bolt
5. Adapter case oil seal
: Apply grease 99000-25010 to oil seal
lip.
20. Oil filler plug
: Apply sealant 99000-31260 to all
around thread part of bolt.
35. Transmission to engine nut
6. Adapter case bolt 21. Transmission case bolt 36. Pump seal
7. Knock pin 22. Reverse gear shaft 37. Output shaft shim
8. Gear shift lever case bolt
: Apply thread lock 99000-32110 to all
around thread part of bolt.
23. Reverse shaft bolt washer 38. Drain plug
: Apply sealant 99000-31260 to
all around thread part of bolt.
9. Oil hole plug 24. Reverse shaft bolt
: Apply thread lock 99000-32110 to all
around thread part of bolt.
:23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
10. Oil hole gasket 25. Reverse gear shaft washer : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
11. Oil gutter 26. Reverse idler gear : 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
12. Knock pin 27. Countershaft shim : Do not reuse.
13. Input shaft oil seal
: Apply grease 99000-25010 to oil seal
lip.
28. Input shaft & countershaft assembly : Apply transmission oil.
14. Low gear shift inverse lever bolt 29. 5th speed synchronizer lever
15. Low gear shift inverse lever 30. 5th speed synchronizer sleeve
