FUEL SYSTEM 5-9
•

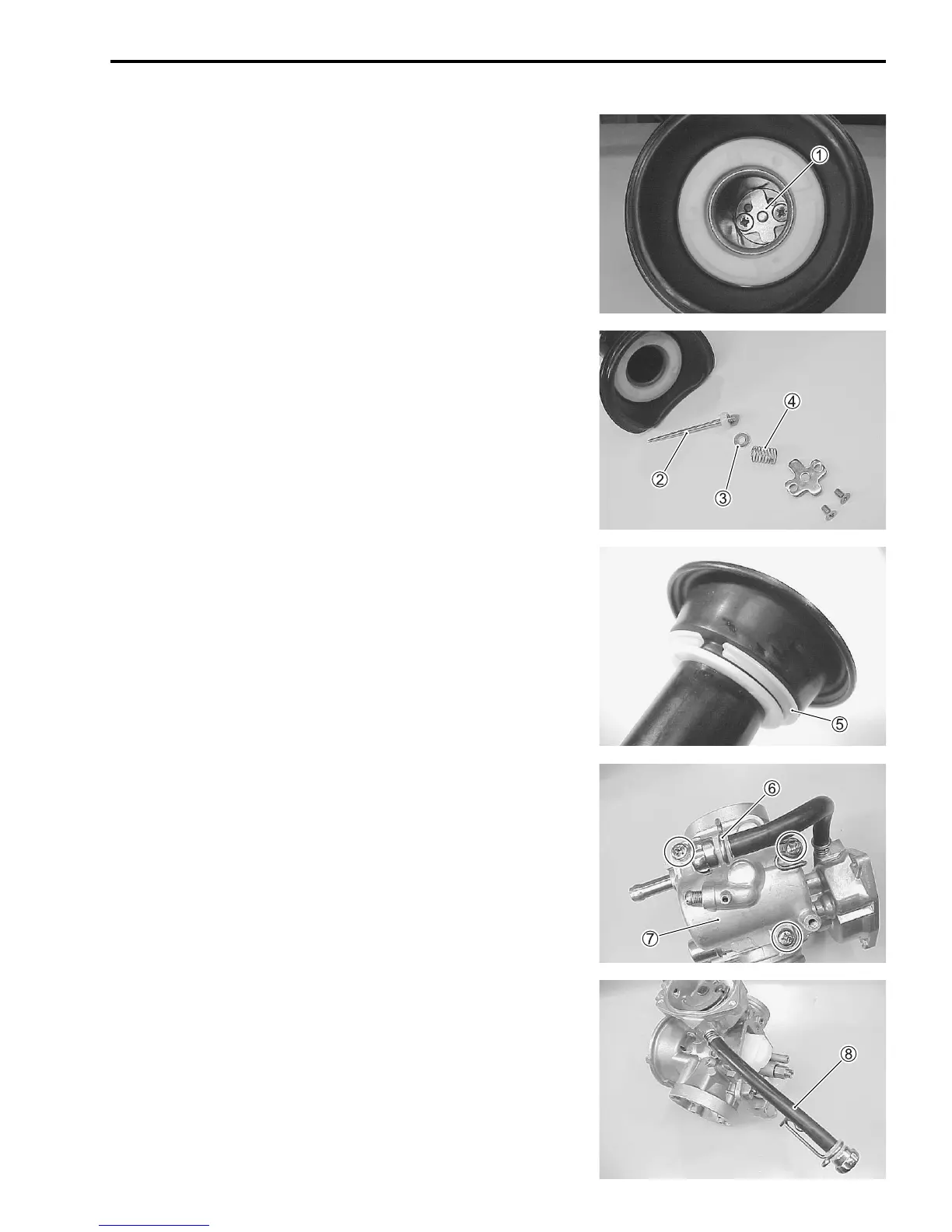

Remove the stopper plate
1
.
•
Remove the following parts.
2
Jet needle
3
Washer
4
Spring
•
Remove the diaphragm by removing the ring
5
.
•
Remove the throttle stop screw holder
6
.
•
Remove the float chamber
7
.
•
Remove the throttle stop screw
8
.
150
152
