SERVICING INFORMATION 9-19

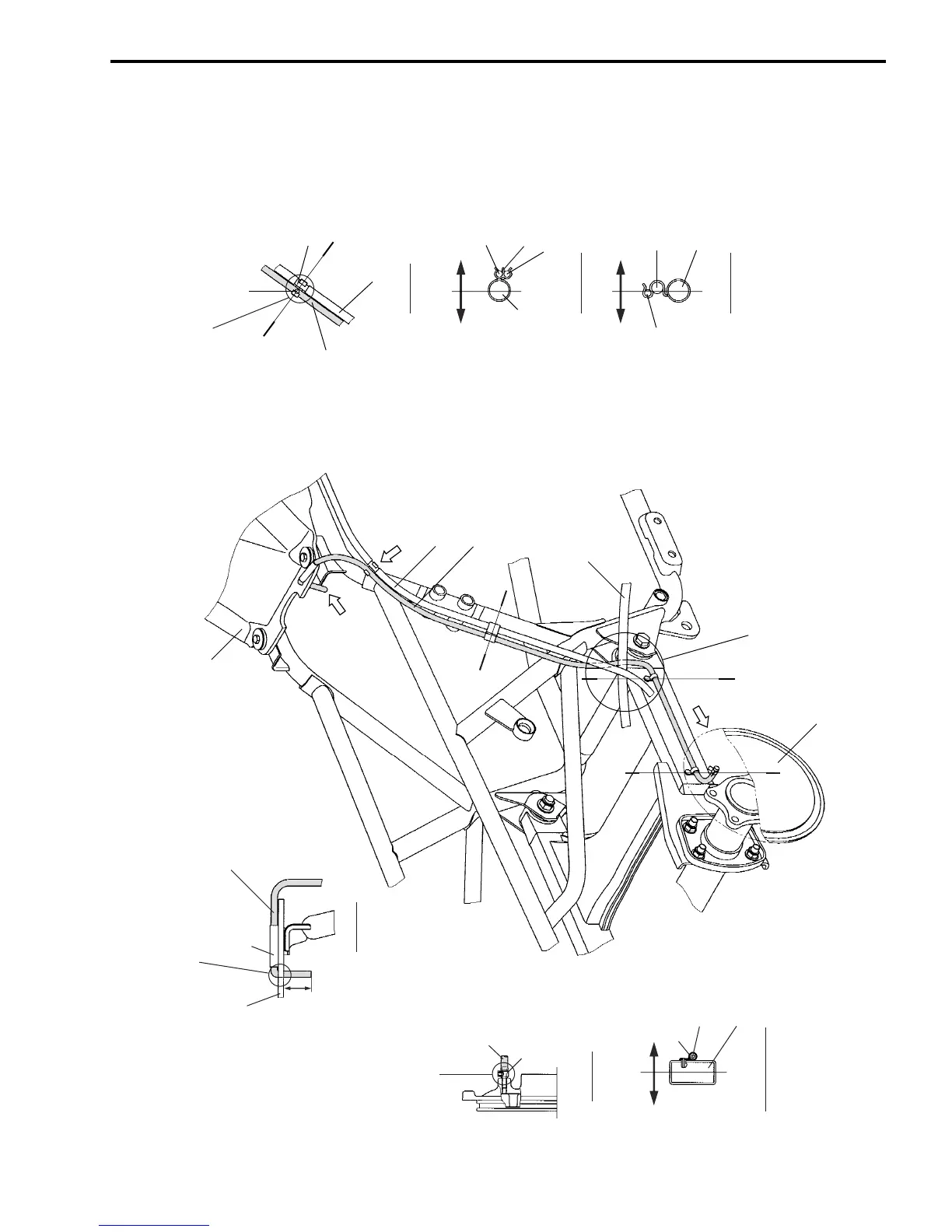

REAR BRAKE BREATHER HOSE ROUTING
Rear brake breather hose
Fuel tank
Pass through the rear brake breather hose into the hole of the fuel tank.
Cover
Rear brake breather hose
VIEW A
VIEW B SECT DD SECT EE
VIEW C
SECT FF, GG
Insert the rear brake breather hose to the breather hose union correctly.
Rear brake breather hose
Clip
Inside Outside
Clamp
Rear brake breather hose
Swingarm
G G
F F
E
B
D
A
E
C
Fuel tank
Rear brake cable
Parking brake cable Rear brake breather hose
Rear brake anchor panel
Pass the rear brake breather hose inside the rear brake cable and parking brake cable.
Align the clip with the white mark on the rear brake breather hose.
White mark
Rear brake breather hose
D
Clip
Parking brake cable
Inside Outside Inside Outside
Frame
Clip
Parking brake cable
Rear brake breather hose
Parking brake cable
Frame
20 – 30 mm
