CHASSIS 7-55
REASSEMBLY AND REMOUNTING

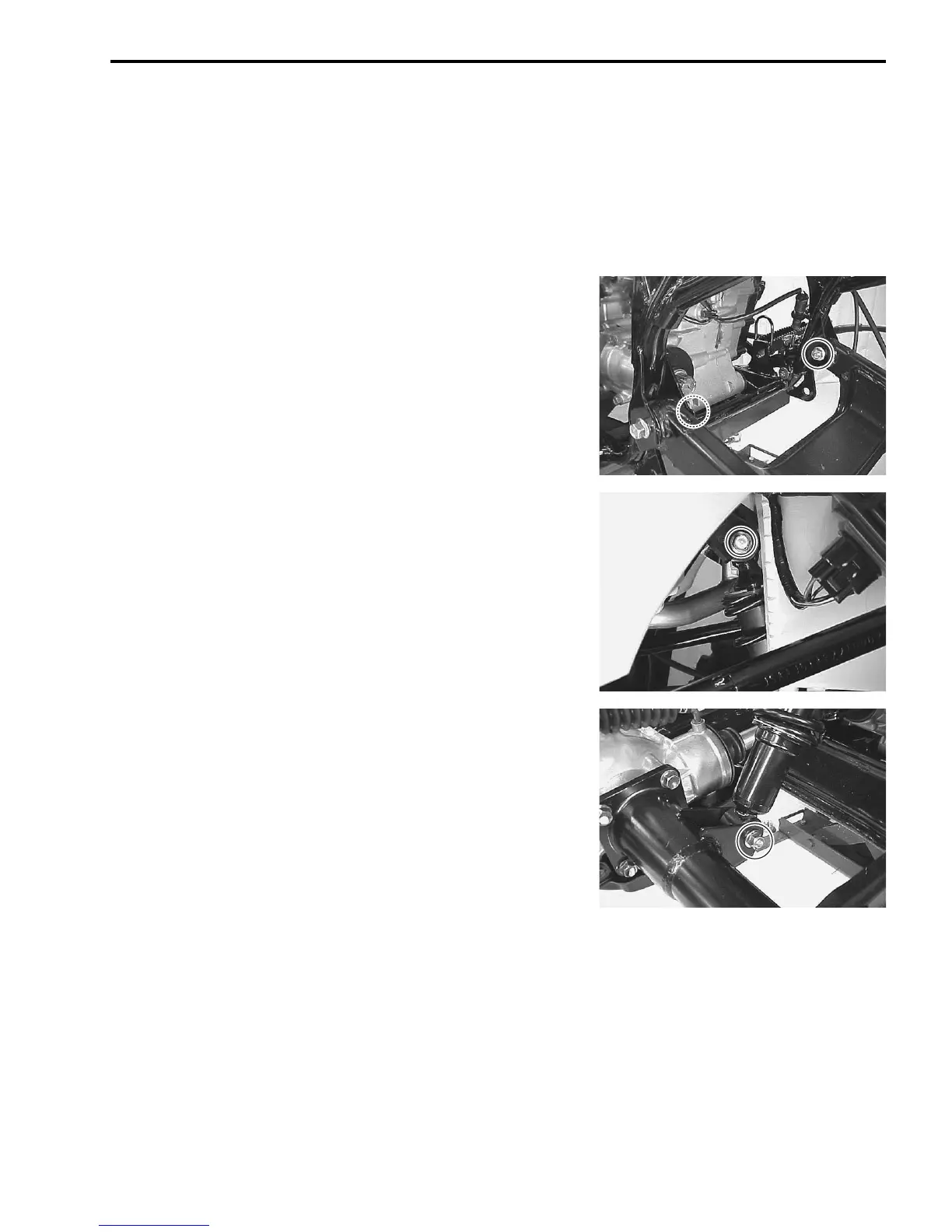

Reassembly and remount the rear swingarm and suspension in
the reverse order of removal and disassembly. Pay attention to
the following points:
• Install the swingarm and rear shock absorber.
• Tighten the swingarm pivot bolts and shock absorber mount-
ing bolts temporarily.
• Tighten the swingarm pivot nut to the specified torque.
Swingarm pivot nut: 85 N·m (8.5 kgf-m, 61.5 lb-ft)
• Tighten the rear shock absorber mounting bolt/nut.
Rear shock absorber mounting bolt (upper):
55 N·m (5.5 kgf-m, 40.0 lb-ft)
Rear shock absorber mounting nut (lower):
60 N·m (6.0 kgf-m, 43.5 lb-ft)
