3-42 ENGINE
TRANSMISSION
DISASSEMBLY
•

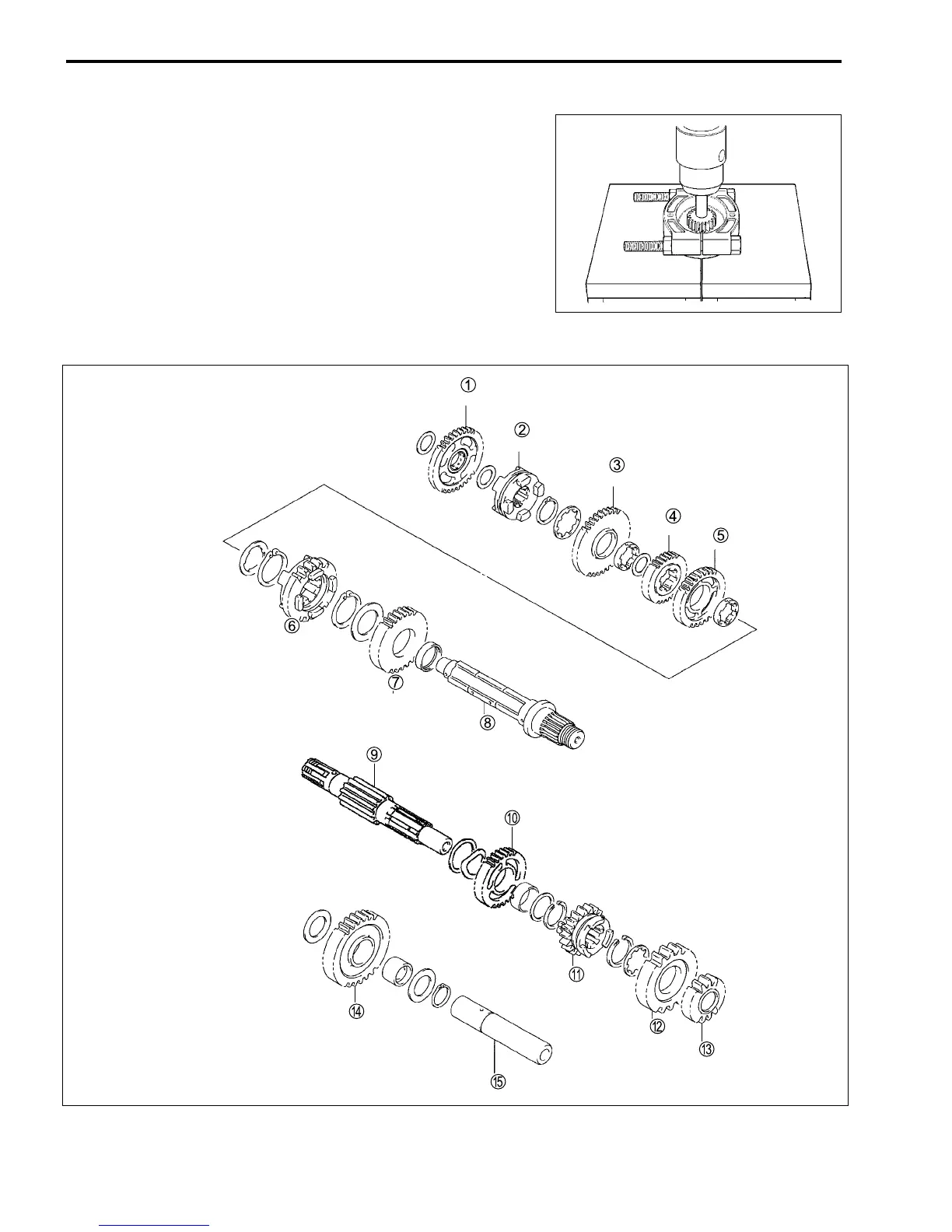

Insert the special tool between the 2nd drive gear and 4th
drive gear.
•
Remove the 2nd drive gear by a hydraulic press.
09950-81910: Remover
•
Disassemble the transmission as shown.
1
Rev
erse dr
iven gear
2
Rev
erse gear dog
3
1st dr
iven gear
4
5th dr
iven gear
5
3rd dr
iven gear
6
4th dr
iven gear
7
2nd dr
iven gear
8
Dr
iveshaft
9
Countershaft
0
5th dr
ive gear
A
3rd dr
ive gear
B
4th dr
ive gear
C
2nd dr
ive gear
D
Rev
erse idle gear
E
Rev
erse idle shaft
81
83
