FUEL SYSTEM 5-15

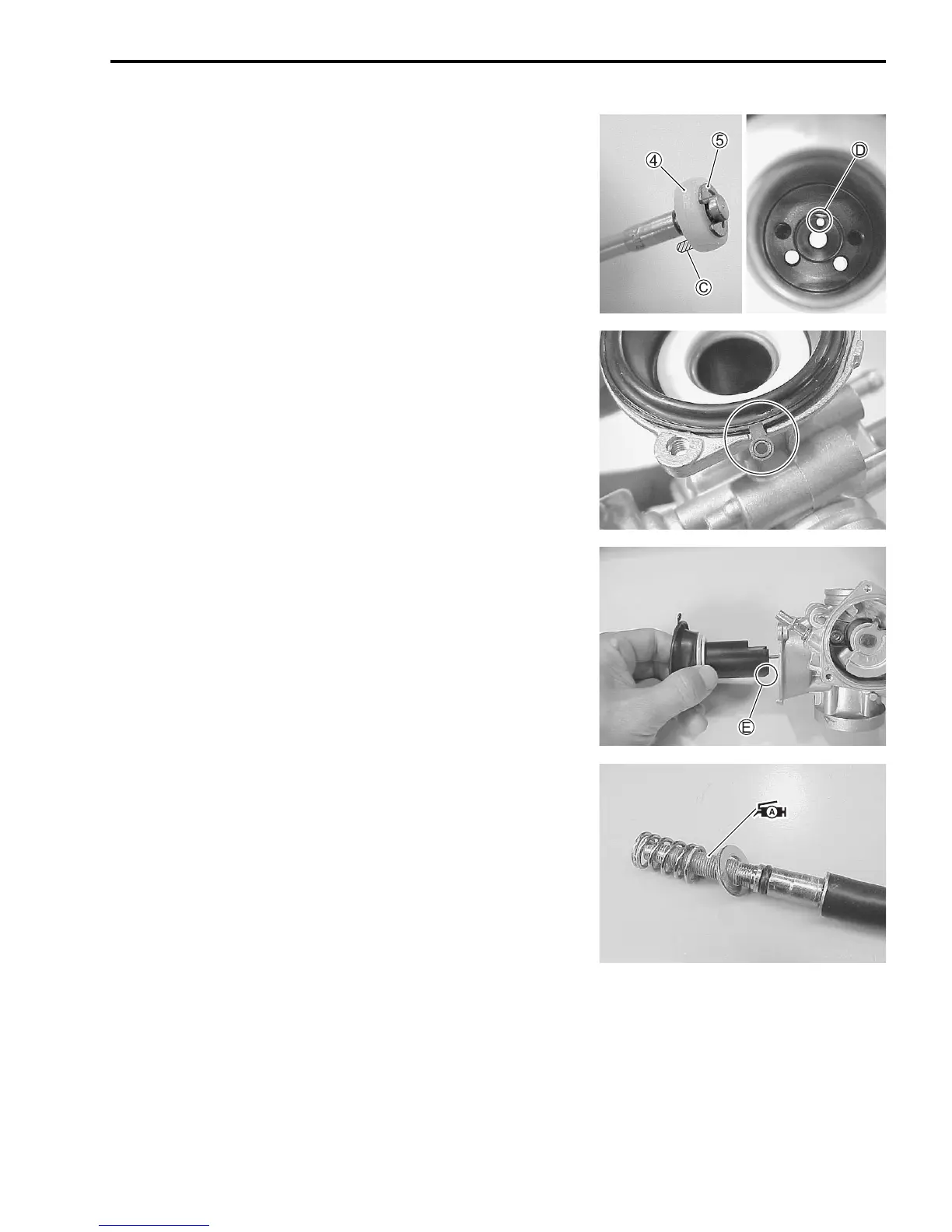

• Install the jet needle to the piston valve with the projection C
on the jet needle ring inserted in the hole D on the piston
valve.
NOTE:
Touch the spacer 4 with the E-ring 5.
• Install the diaphragm assembly to the carburetor.
NOTE:
When installing the piston vaIve, make sure the tab of the dia-
phragm is aligned with the concave section of the carburetor
body’s rim, so that the cut-away E on the piston vaIve faces the
air cIeaner box.
THROTTLE STOP SCREW
• Apply the SUZUKI SUPER GREASE “A” to thread part of the
throttle stop screw, then install the throttle stop screw to the
carburetor.
99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
