7-20 CHASSIS

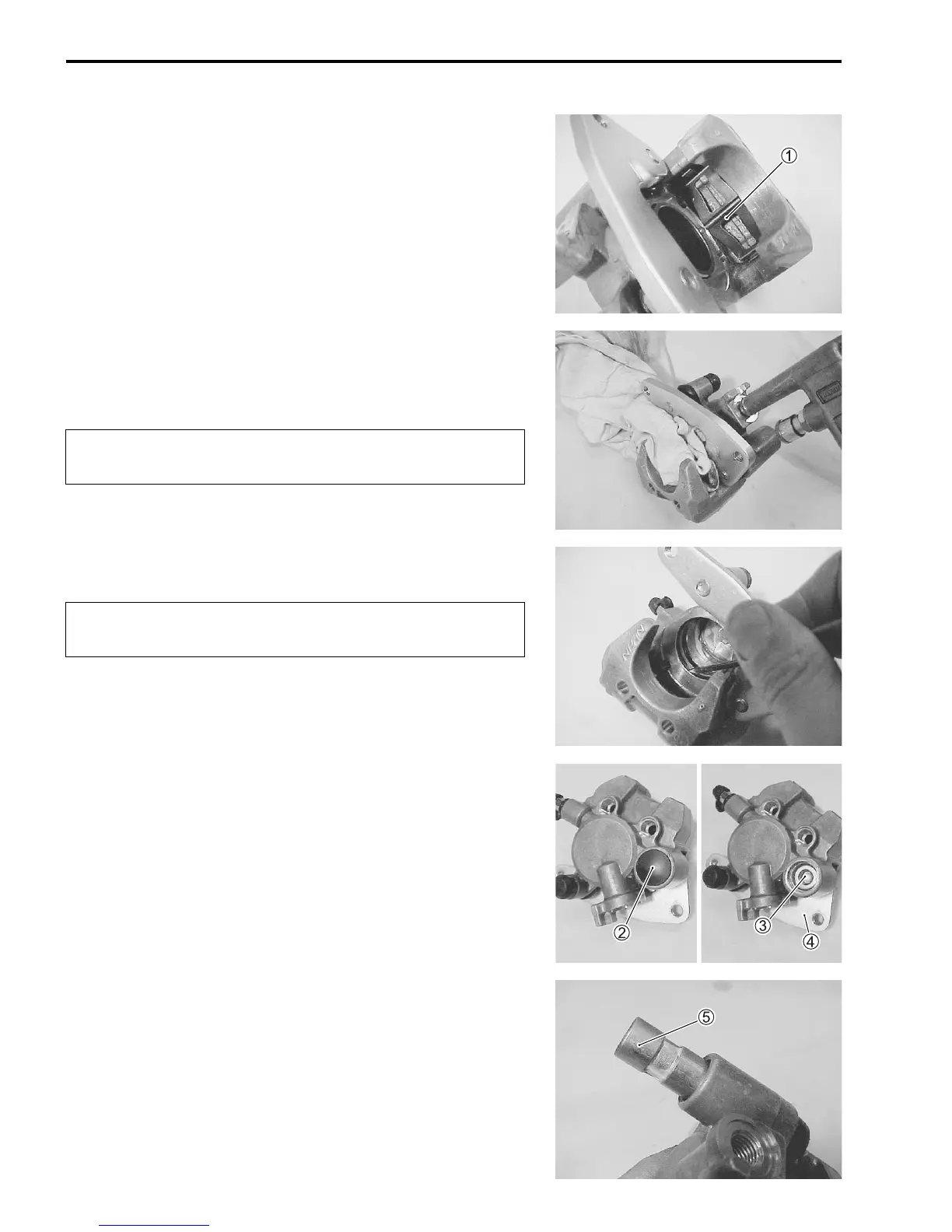

• Remove the spring 1.
• Place a rag over the brake caliper piston to prevent the piston
from popping out and then force out the piston using com-
pressed air.

• Remove the dust seal and piston seal.

• Remove the cap 2 and loosen the brake caliper holder slide
pin 3.
• Remove the brake caliper holder 4.
• Remove the brake caliper holder slide pin 5.
Do not use high pressure air to prevent brake caliper
piston damage.
Do not reuse the dust seal and piston seal to prevent
fluid leakage.
To Next Page
