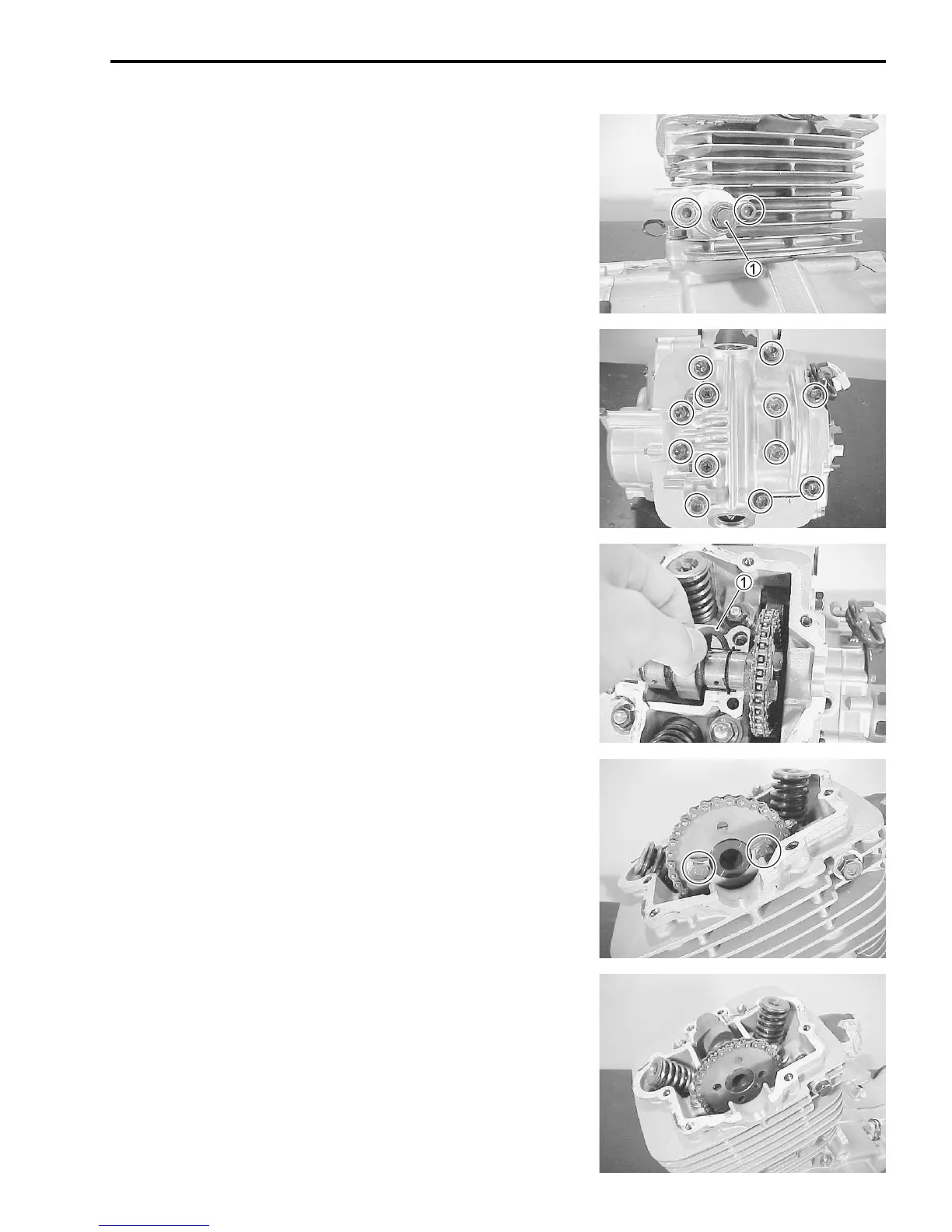

ENGINE 3-13
CAM CHAIN TENSION ADJUSTER
•
After removing the spring holder bolt
1
, remove the cam
chain tension adjuster.
CYLINDER HEAD COVER
•
Remove the cylinder head cover.
CAMSHAFT
•
Remove the C-ring
1
.
•
Flatten the lock washer.
•
Remove the cam chain sprocket bolts and lock washer.
•
Remove the camshaft and sprocket.
52
54
