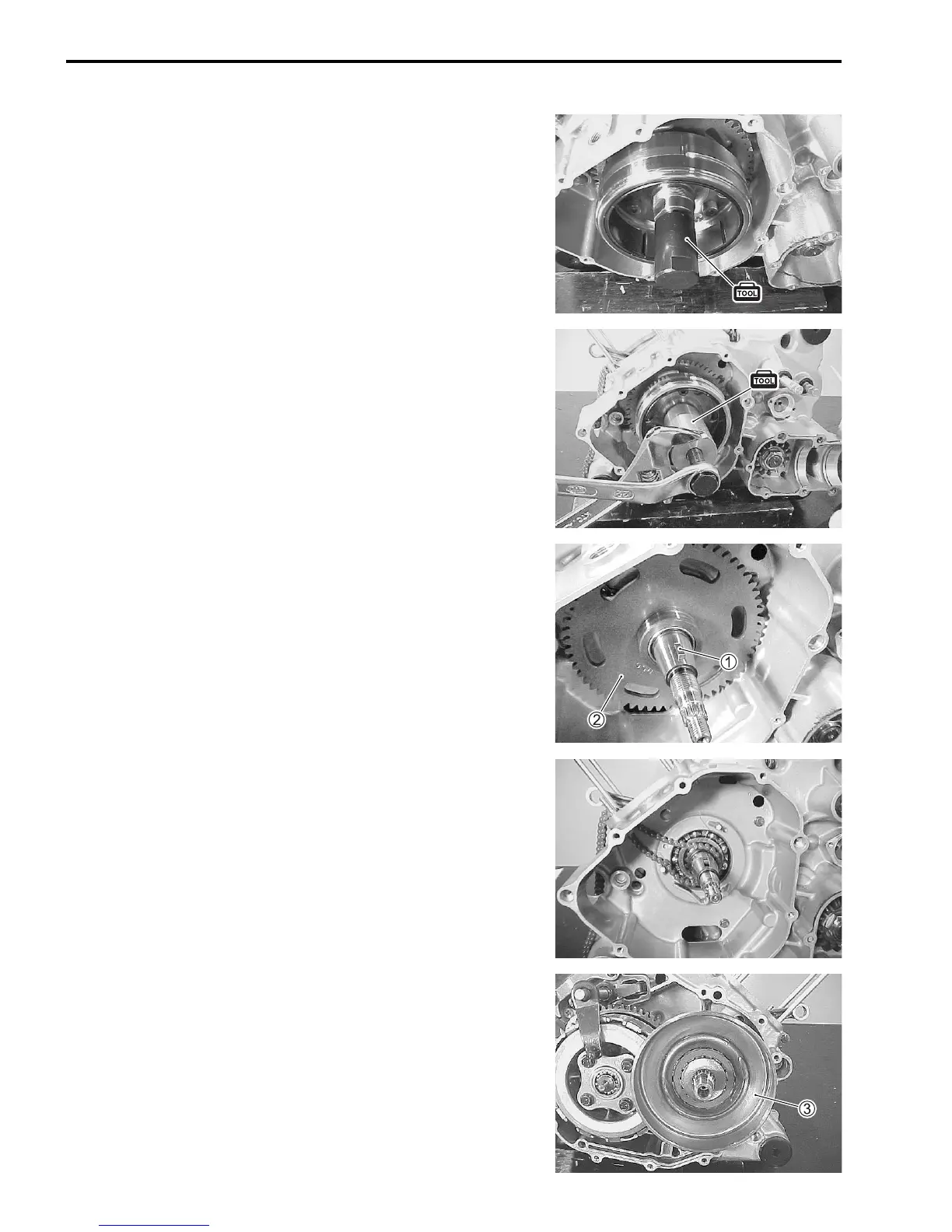

3-18 ENGINE
•
Install the generator rotor attachment to the crankshaft end.
09930-31921: Rotor remover attachment
•
Remove the generator rotor with the special tool.
09930-35010: Rotor remover
•
Remove the key
1
.
•
Remove the starter driven gear
2
.
CAM CHAIN
•
Remove the cam chain.
•
Remove the primary drive gear assembly
3
.
57
59
