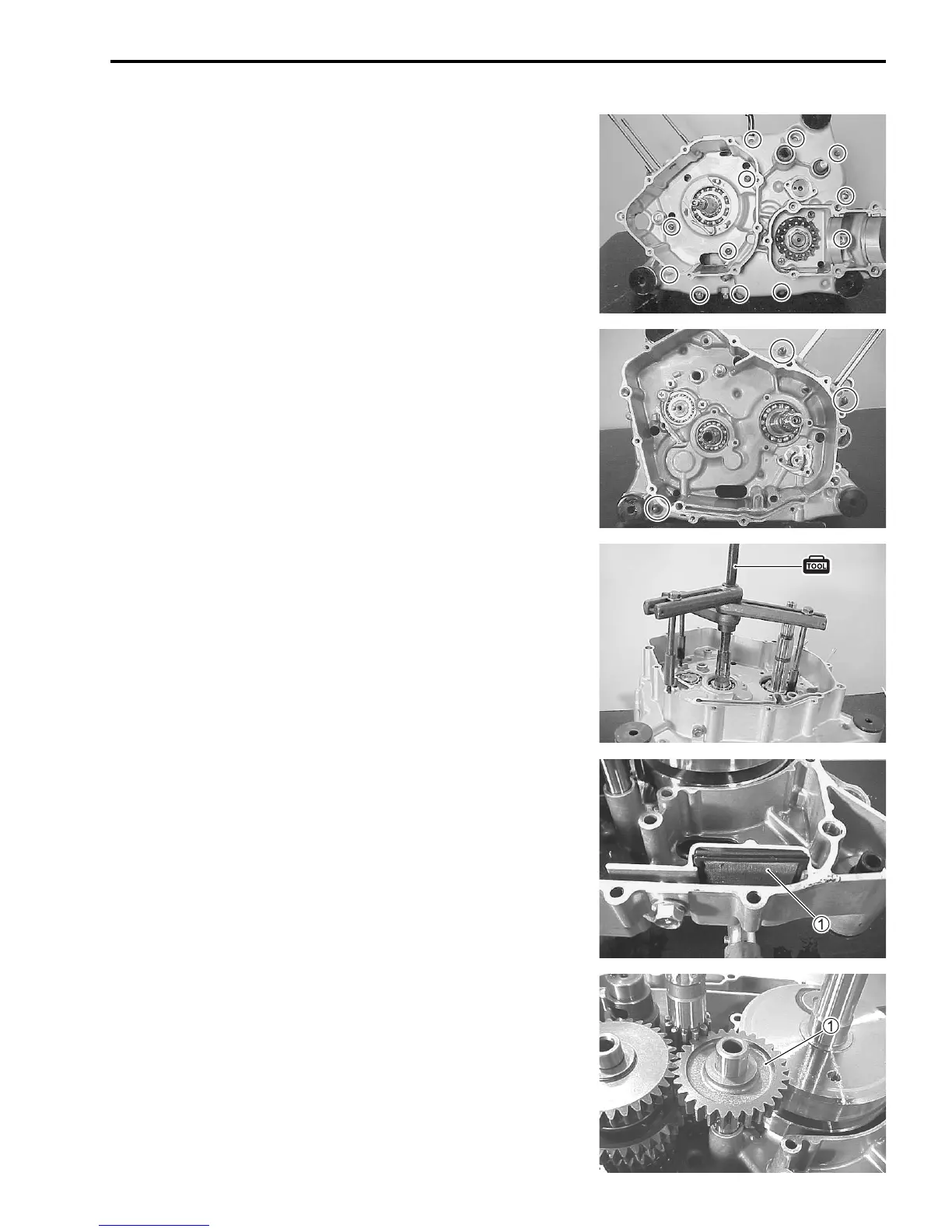

ENGINE 3-21
•
Remove the left crankcase bolts.
•
Remove the right crankcase bolts.
•
Separate the crankcase with the special tool.
NOTE:
*
The crankcase separator plate is parallel with the end face of
the crankcase.
*
The crankshaft must remain in the left crankcase half.
09920-13120: Crankcase separator
OIL SUMP FILTER
•
Remove the oil sump filter
1
.
DRIVE TRAIN/GEARSHIFT CAM
•
Remove the reverse idle gear
1
.
60
62
