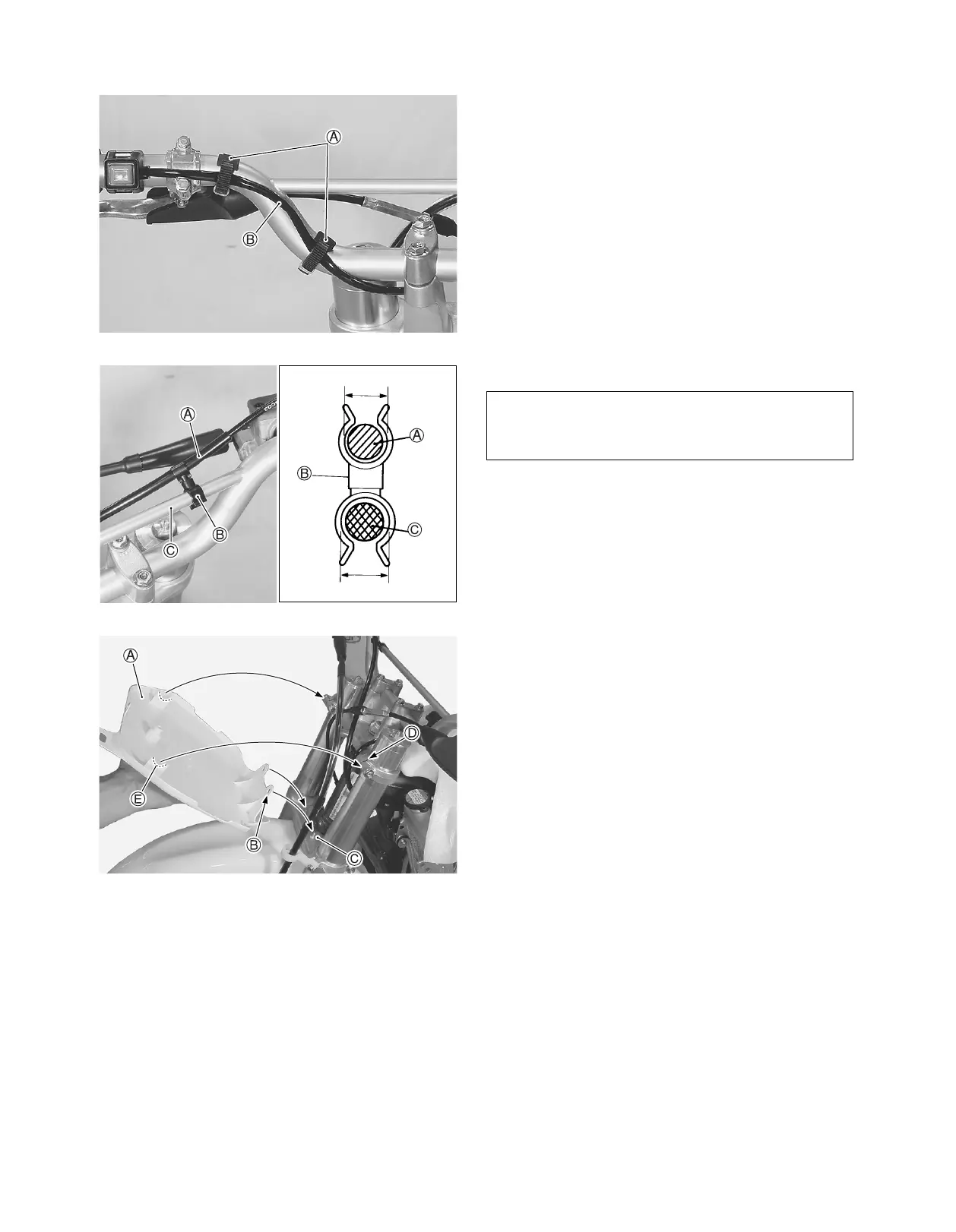

CLAMP
Clamp the engine stop switch wiring harness with har-
ness straps.
A: Strap L:120 mm
B: Engine stop switch wiring harness
Clamp the throttle cable to the handlebar bridge pipe.
A: Throttle cable
B: Clamp
C: Handlebars
FRONT NUMBER PLATE
Insert the hole of front number plate to the boss of
front fork lower bracket.
Align the recess of front number plate on the front fork
upper bracket.
A: Front number plate
B: Hole
C: Boss
D: Slit
E: Recess
NOTE:
The larger diameter side of the cable clamp
should be connected to the handlebars.
