8

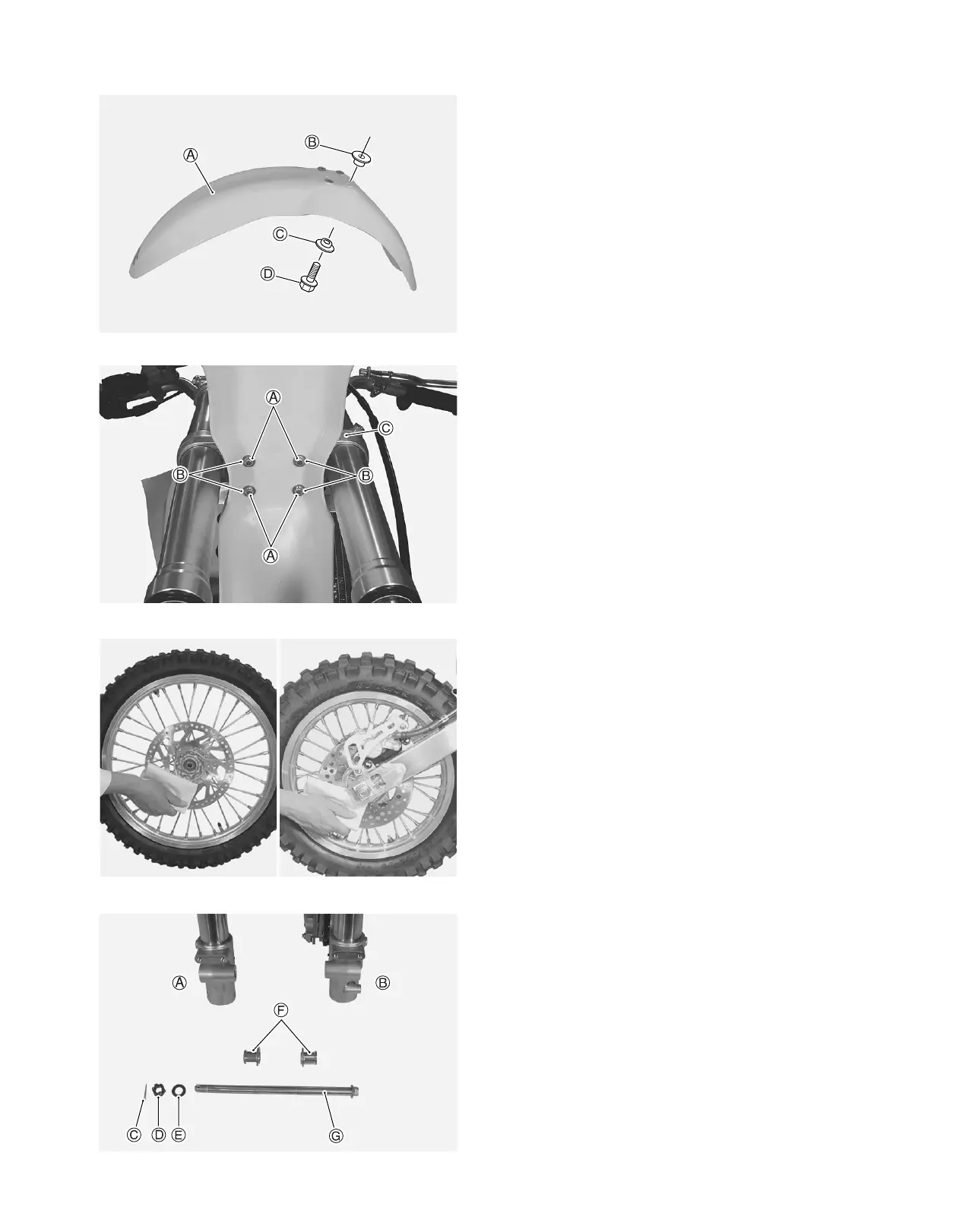

FRONT FENDER
Install the front fender with four sets of mounting parts
as shown.
Each of the four mounting bolts requires two stepped
washers.
A: Front fender
B: Stepped washer OD:17.0 mm ID:6.5 mm T:7.0 mm
C: Stepped washer OD:16.0 mm ID:6.5 mm T:3.5 mm
D: 6 × 20 mm flange bolt
Install the front fender to the front fork lower bracket.
A: 6 × 20 mm flange bolt
B: Stepped washer OD:16.0 mm ID:6.5 mm T:3.5 mm
C: Front fork lower bracket
FRONT REAR
BRAKE DISC
To prevent brake squeaking and pad contamination,
carefully clean the front and rear brake disc plates with
alcohol or other non-petroleum based solvent.
This will remove the rust-preventive coating and dirt.
Mount the front wheel assembly properly.
A: Right fork leg
B: Left fork leg
C: Cotter pin L:27.0 mm
D: Axle nut
E: Washer OD:20.0 mm ID:12.5 mm
F: Spacer
G: Front axle
