4
Before assembling the motorcycle, thoroughly
understand the “Safety Check Out” described on
page 27.
After completion of assembly, carefully check the
motorcycle referring to the “Safety Check Out”,
then deliver the motorcycle to the customer.
ASSEMBLY

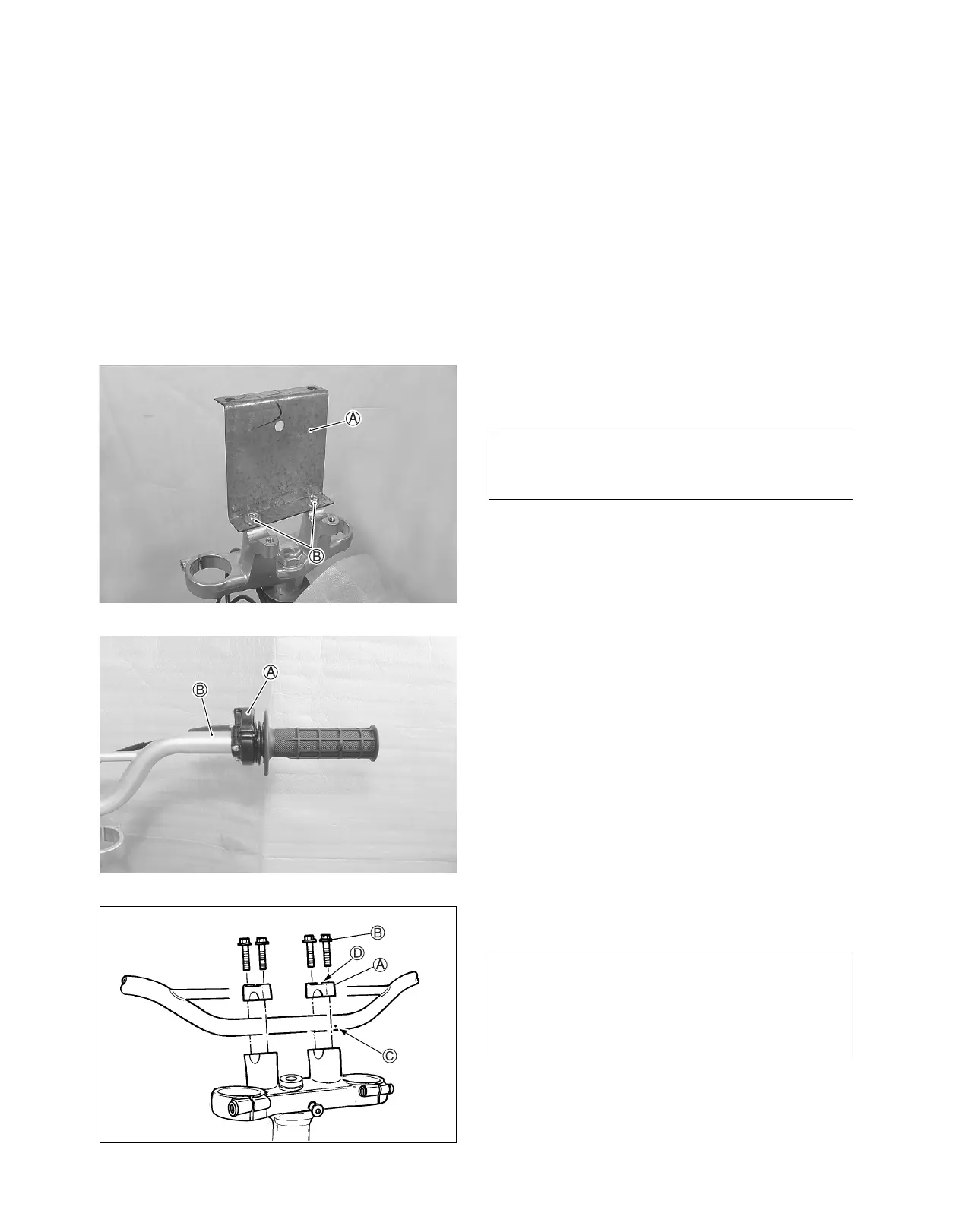

REMOVING THE BRACKET
Remove the bracket from the handlebar mounting
position.
A: Bracket
B: Bolt
HANDLEBARS
Loosen the throttle housing retaining screws.
Insert the throttle assembly onto the handlebars.
A: Throttle assembly
B: Handlebars
Install the handlebars assembly using the two clamps
and the four bolts.
A: Clamp
B: 8 × 35 mm flange bolt
C: Dot mark
D: Punch mark
NOTE:
The bracket and bolts are no longer needed
and these may be discarded.
NOTE:
The punch mark on the clamps shows front
side.
Align the dot mark on the handlebars with the
mating surface of the front side of left clamp.
To Next Page
