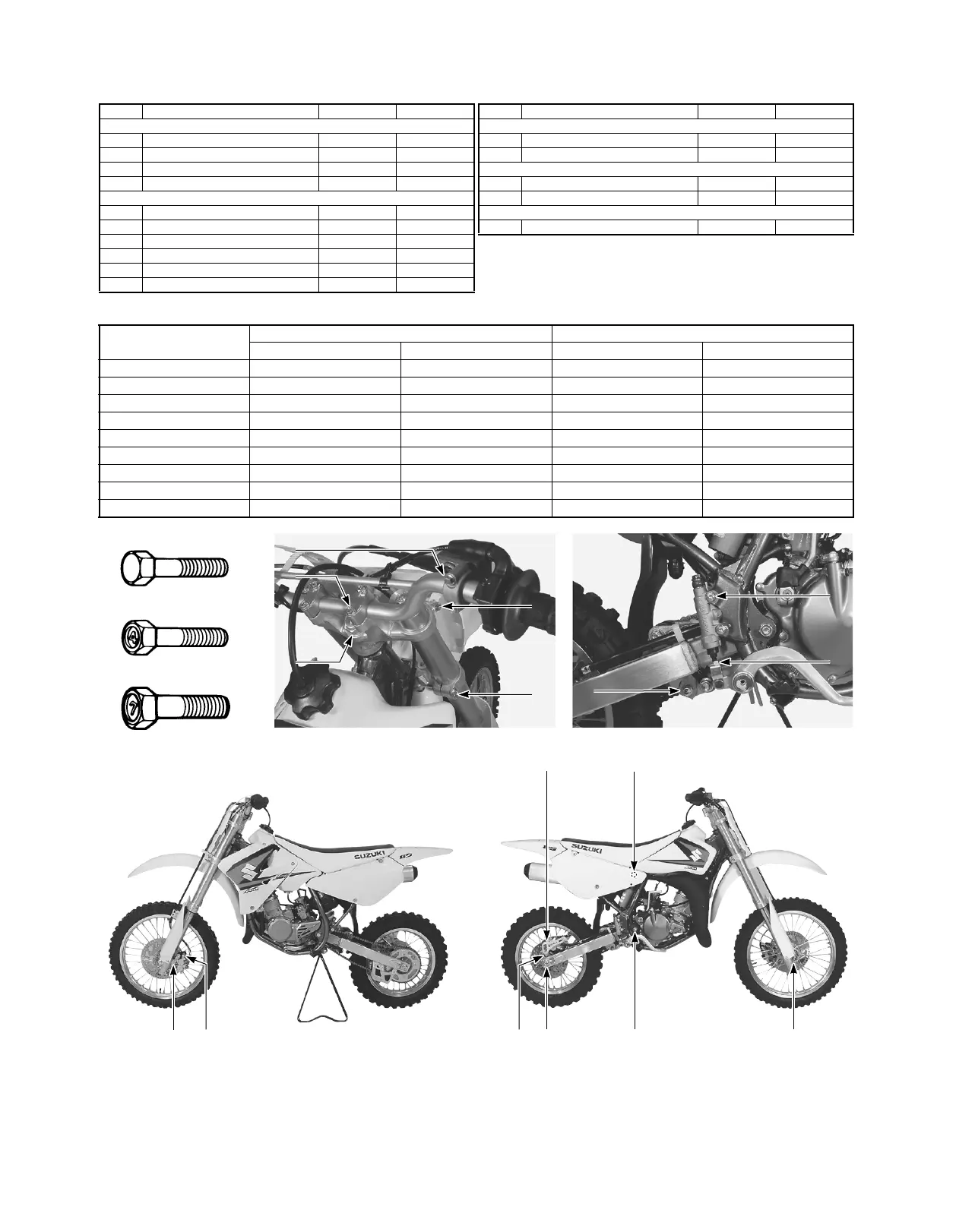

TIGHTENING TORQUE
For other bolts and nuts not listed, refer to this chart.
Item Part Name N·m kgf-m
FRONT FORK
A Handlebar clamp bolt 26 2.6
B Steering stem head nut 65 6.5
C Front fork upper bracket bolt 23 2.3
D Front fork lower bracket bolt 23 2.3
BRAKE
E Front brake caliper mounting bolt 23 2.3
F Front brake master cylinder mounting bolt 10 1.0
G Rear brake caliper mounting bolt 23 2.3
H Rear brake master cylinder mounting bolt 10 1.0
I Rear brake push rod lock nut 18 1.8
J Brake caliper air bleeder 7.5 0.75
Item Part Name N·m kgf-m
AXLE
K Front axle nut 44 4.4
L Rear axle nut 72 7.2
ABSORBER
M Rear shock absorber nut (Upper) 60 6.0
N Rear shock absorber nut (Lower) 60 6.0
OTHERS
O Rear swing arm pivot nut 58 5.8
Bolt Diameter (mm)
Conventional or “4” marked bolt “7” marked bolt
N·mkgf-mN·mkgf-m
4 1.5 0.15 2.3 0.23
5 3 0.3 4.5 0.45
6 5.5 0.55 10 1.0
8 13 1.3 23 2.3
10 29 2.9 50 5.0
12 45 4.5 85 8.5
14 65 6.5 135 13.5
16 105 10.5 210 21.0
18 160 16.0 240 24.0
Conventional bot
“4” marked bolt
“7” marked bolt
AA
B
B
F
CC
DD
F
II
N
N
H
H
E
J
GK
MJ
O
L
