6
FRONT FORK (RM85L)

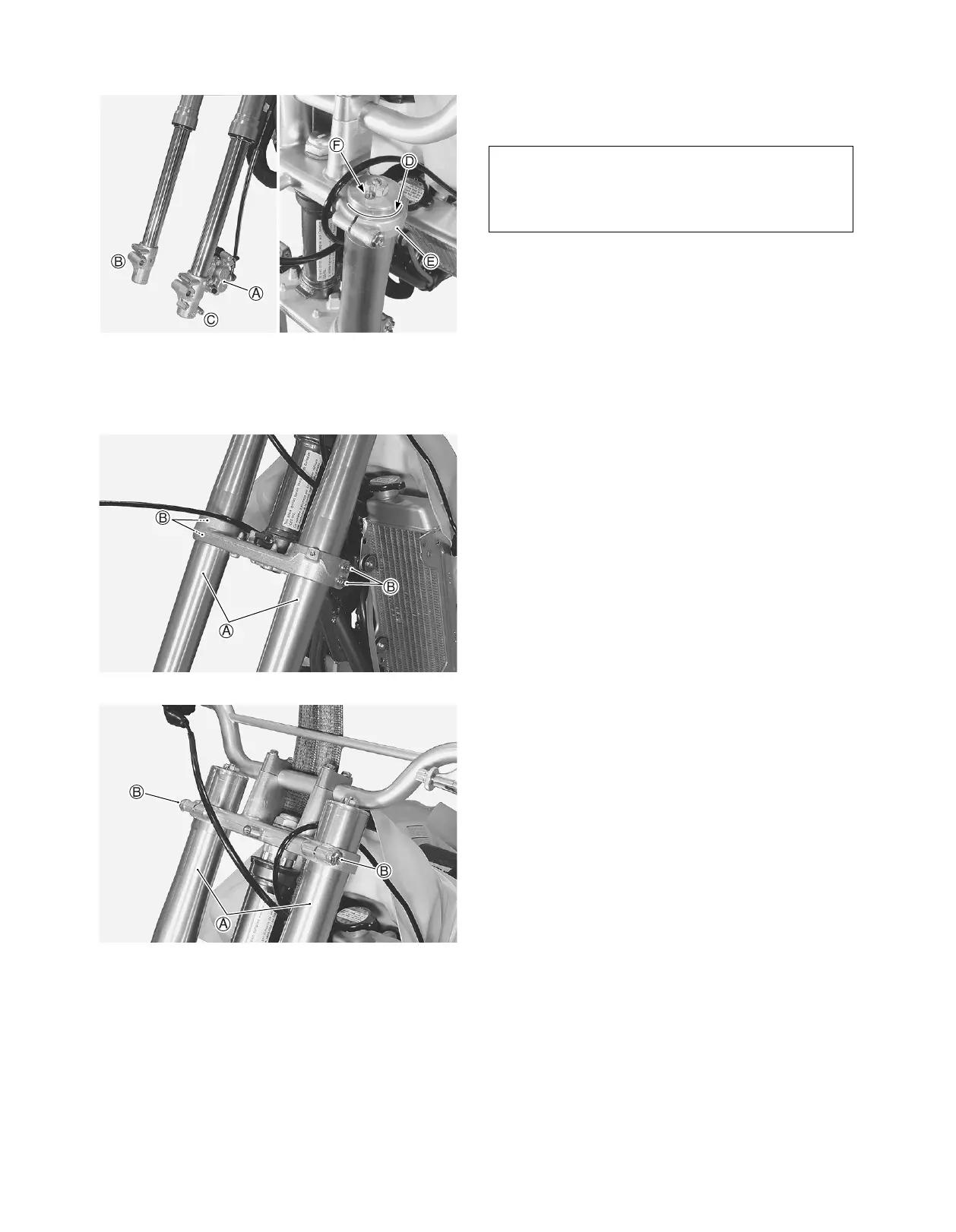

Insert each fork leg assembly into the lower and upper
brackets.
Adjust the line of front fork to the top face of the upper
bracket and air valve is positioned at the front.
A: Caliper
B: Right fork leg
C: Left fork leg
D: Line
E: Front fork upper bracket
F: Air pressure
Tighten the lower bracket side bolts to the specified
torque.
"
""
"
Front fork lower bracket bolt: 23 N·m (2.3 kgf-m)
A: Front fork assembly
B: 8 × 40 mm flange bolt
Tighten the upper bracket side bolts to the specified
torque.
"
""
" Front fork upper bracket bolt: 23 N·m (2.3 kgf-m)
A: Front fork assembly
B: 8 × 40 mm flange bolt
Keep the position of front brake master cylinder
with its cap facing upwards until it is installed.
Install the front fork assembly with front brake
caliper to the left side.
