HYDRAULIC SYSTEM

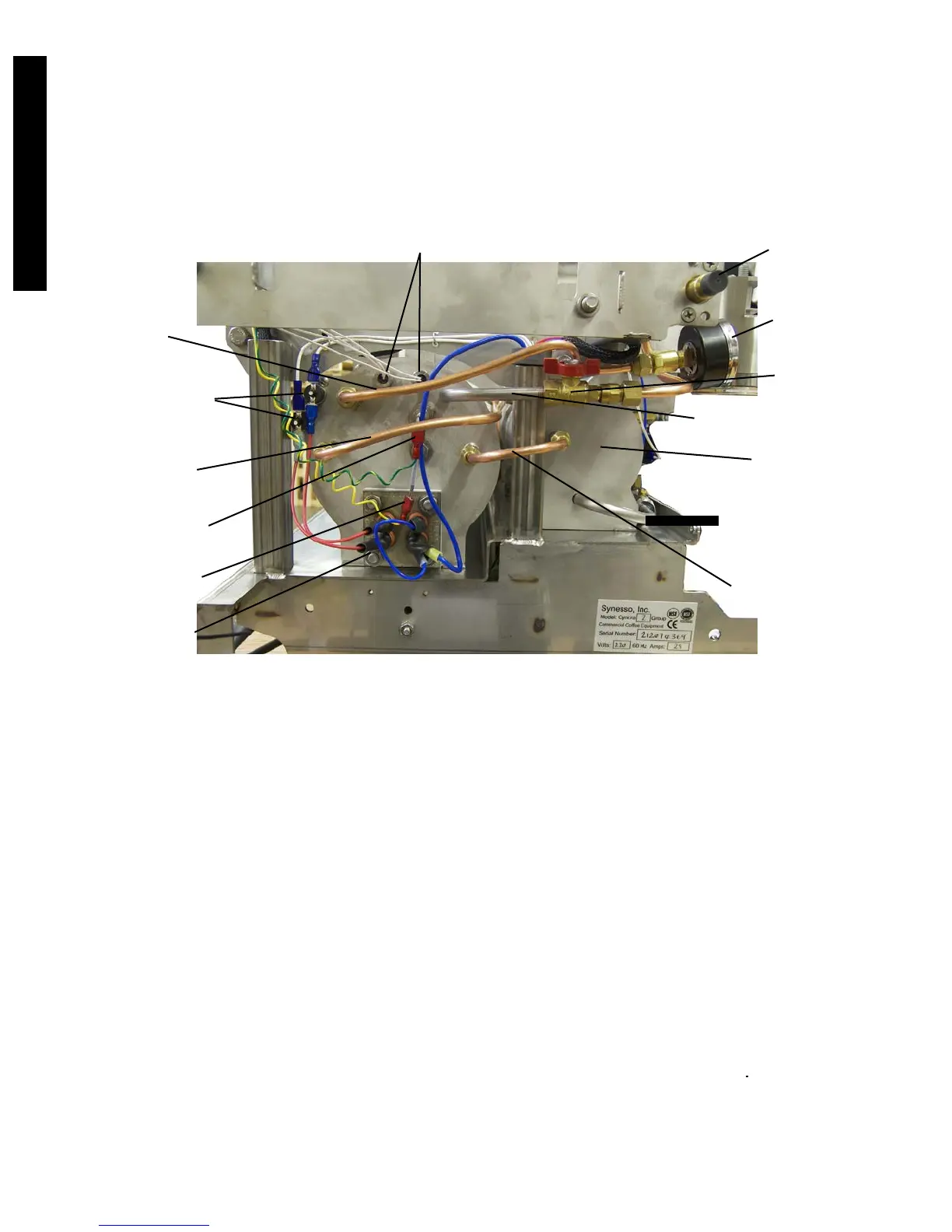

MAJOR COMPONENTS OF THE WATER OUTLET (LEFT) SIDE
Cyncra prior to 2011
Steam Gauge
Tube
Steam Tank
Thermal Overload
Switches
2nd Position
Brew Tank
Fill Tube
Upper Level
Probe
Temperature Probes
Steam
Actuator
Rod
Steam
Gauge
Steam Shut-
off Valve
Steam Tube
Brew
T
ank
Brew Tank
Drain Tube
Low Level Probe
Heating
Element
1st Position Brew
Tank Fill Tube
Brew Tank Fill Tubes: (there will be one per group, the picture above shows a 2 group)
Heat exchangers exit on the left side of the steam tank and tubes (currently copper, were
stainless steel until serial number 352) deliver the water to the brew tanks.
Brew Tank:
Synesso’s™ brew tanks are entirely stainless steel, welded internally and externally to be
water tight and thermally stable. Each brew tank has its own temperature probe and element which
allows the user to set different temperatures on each group, as well as operate without a group if a
serious service issue arises. Attached to each group is a 3-way brew valve which controls the flow of
water from the group head to the brew chamber.
Brew Tank Drain Tube:
Each group head is fitted with a drain tube to easily drain the tank. Early machines use
a stainless steel tube with a ball valve attached. The first brew group drain was attached to the
drain manifold line. 2nd generation machines use a brass fitting with a copper seal. These are not
connected to the drain manifold.
Heating Element:
A 2-leg incoloy and stainless steel heating element which provides the heat for the steam
boiler. It is controlled by the thermal probes and will be shut off in the case of over-heating
or low water levels.
