2
ELECTRICAL SYSTEM
ELECTRICAL
BOX
located underneath the machine, the electrical box contains all the power and signal wiring running
to and from the Synesso™ machine. Since the 2 boxes represented below have many of the same
components, they have been labeled with numbers for matching components and the descriptions
follow in the next pages.

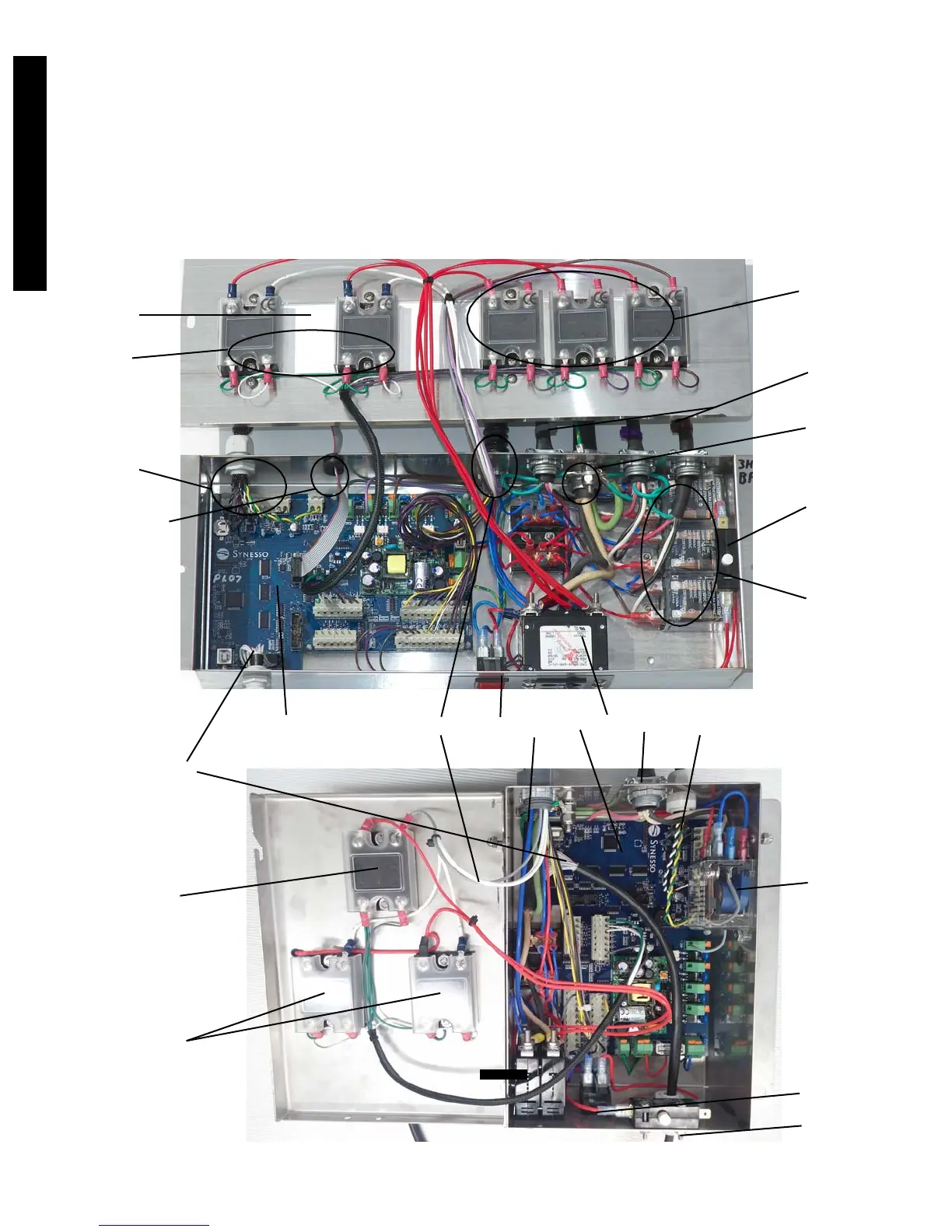

3 Group Hydra Electrical Box
1
14 top
of lid
13
2
3
12
4
11
5
9 8 7 3
9 6
2
12
10
1
5
13
6
7
4
1 Group Electrical Box
