Bilag8—1



Installationofsteelroofinthesizes10‐150

Annex8.

8.1Overview

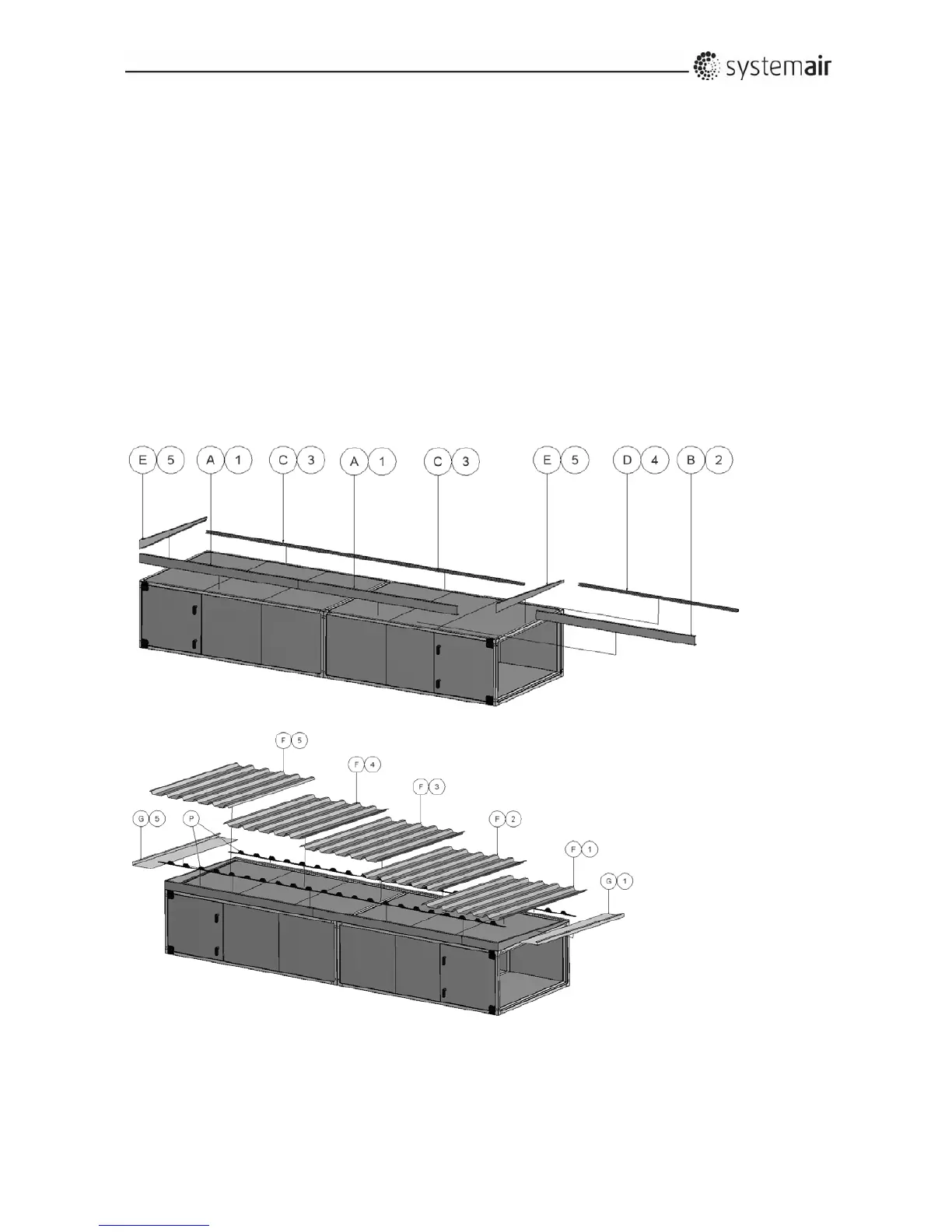

 MountrailsA1,B2,C3,D4,E5 ontheunitforsupportoftrapezoidalroofplates(mountalsorailsY

andZonunitsofthesize30andonunitsthatarelargerthansize30longitudinallyatthecentre‐

lineoftheunits).

 Placefoambands–

P–onthehorizontalrailsA1,B2,C3andD4forsupportofroofplates.

 Calculateoverhangoftheroofatbothendsoftheunitandmountroofoverhangprofile–G1on

thefirsttrapezoidalroofplate–F1beforetheroofplateismounted.



PlaceandmountroofplatesF1,F2,F3andsoon.

 Rememberfoambandsonthesidelapsbetweenroofplatestopreventrainwaterfrompassing

through.

 Placeroofoverhangprofile–G5attheotherendoftheunitbeforethelastroofplateismounted.

 Mount

sidesandcornersontheroof.

 Applysealingwhereplatesarejoinedtoensurewaterresistance‐eveninstormyweather.


