Bilag8—6

8.6Foambandsbetweenrailsandroofplates–mountroofplates.

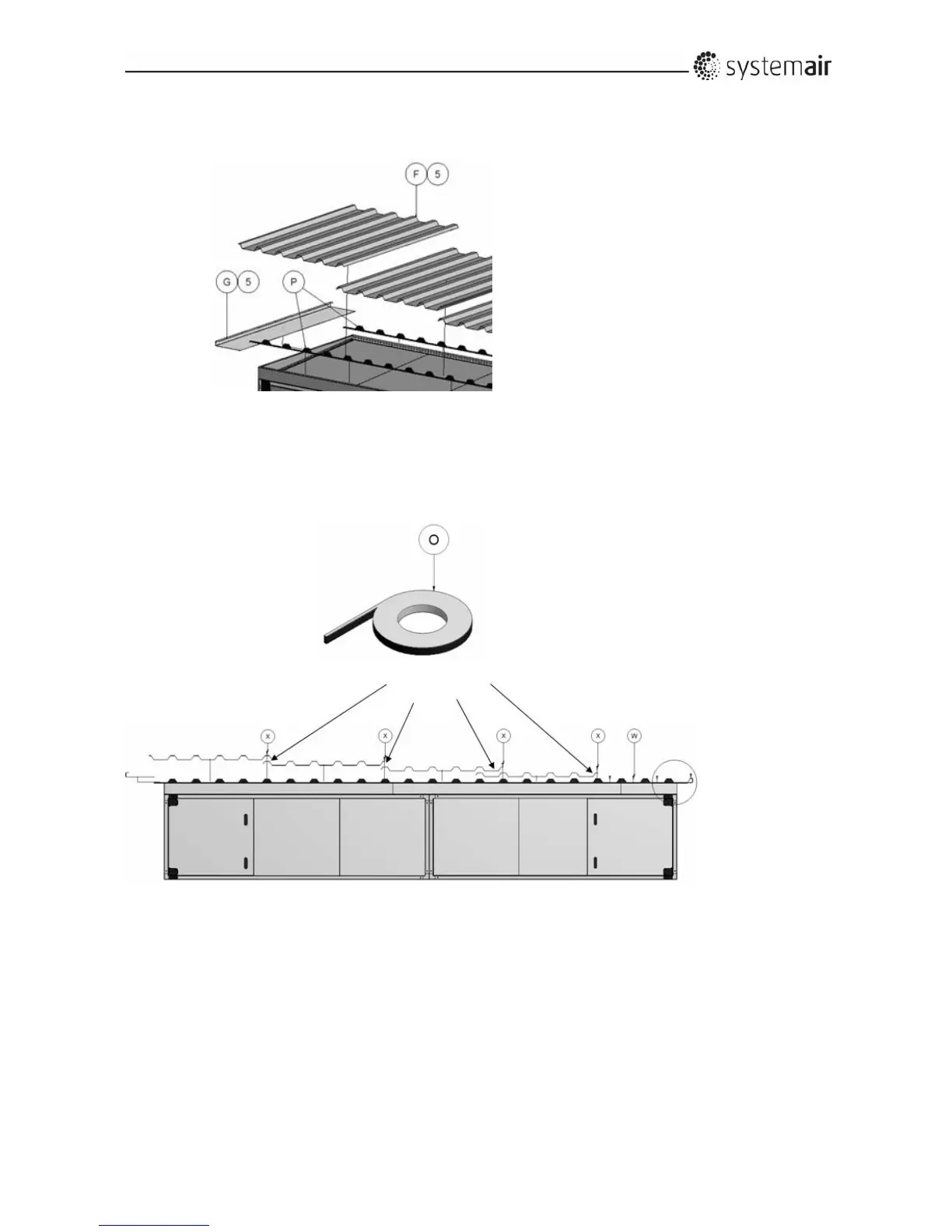

PlacefoambandsPbetweenprofilesA1,B2,C3,D4androofplates.

Thetrapezoidalroofplatesaremountedwiththeself‐drilling,paintedscrewssuppliedwithsealingwasher.
8.7Foambandsbetweenroofplates
Mounttheself‐adhesivefoamband–O‐ontheunderlappingribforwaterresistantandeffectivesealing
duetothesmallslopeoftheroof.

8.8Mountroofplates–someofthemareoverlappingby2ribs
Thewidthofeachplateisalways1.035mmandsomeoftheplateshavetooverlapby2ribstoachievethe
optimaltotallengthofthewholeroof—seetheillustrationabove.
8.9Mountoverhangprofile–G5ontheotherendoftheunit.
Whenthelasttrapezoidalplate(inthisexampleF5)hasbeenplacedontheunit,thesecondroofoverhang
profileG5mustbepushedunderthetrapezoidalroofplateandmountedwiththeself‐drilling,painted
screwwithsealingwasher.Mountingmustbesimilartothemountingofroofoverhangprofile
underthe
trapezoidalroofplateattheotherendoftheunit.
