SystemAir MUB Series User Manual

GB Description
|
11

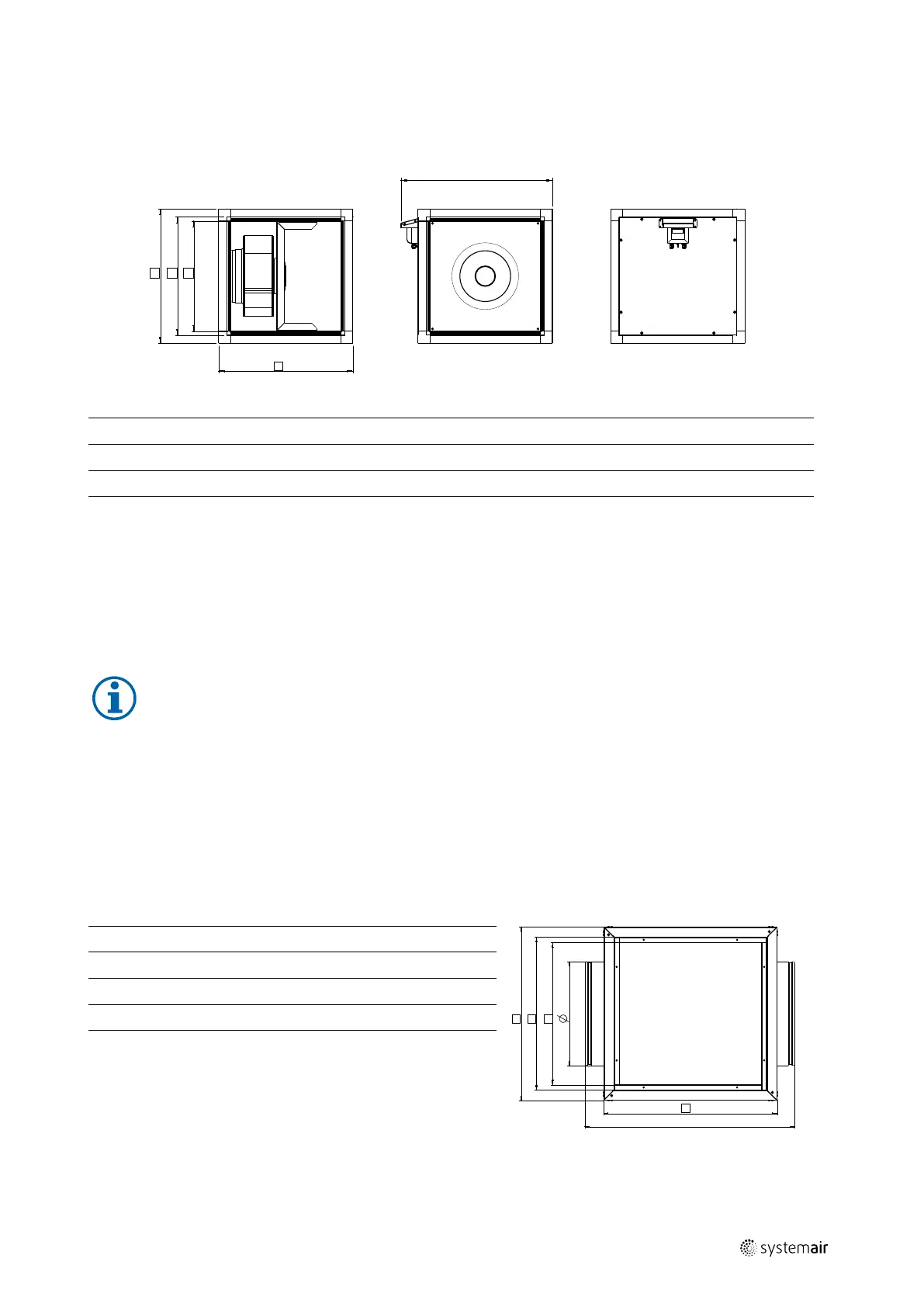

5.3.4 Dimensions
Table 5 Dimensions MUB-CAV/VAV
D C
B
A
E
[mm]
A B C D E
MUB–CAV/VAV 025...
500 500 420 378 586
MUB–CAV/VAV 042...
670 670 590 548 756
MUB–CAV/VAV 062...
800 800 720 678 886
MUB–CAV/VAV 100...
1000 1000 920 878 1086
5.3.5 Technical data
• Temperature range [°C] of transported air = -20 to 60 (This is the maximum range. For the temperature range of
your fan, please check the data sheet.)
• Voltage/current/enclosure class/weight/impeller diameter = see name plate
• Sound pressure [dB(A)] = see data sheet
Note:
Further technical data can be found on the data sheet of your fan.
5.4 Description MUB/F
The fan is equipped with high-temperature motors for temperature classification F400/120 min, in single and two-
speed versions.
5.4.1 Dimensions
Table 6 Dimensions
[mm]
A B C D E F
A
F
E
C
B
D
MUB/F 042 400
670 670 590 548 400 783
MUB/F 042 450
670 670 590 548 400 783
MUB/F 062 500
800 800 720 676 560 915
MUB/F 062 560
800 800 720 676 560 915
MUB/F 062 630
800 800 720 676 630 915
5.4.2 Technical data
• Temperature range [°C] of transported air = -20 to 55°C or up to 400°C/120 min (once)
