Installation |
17
Legend

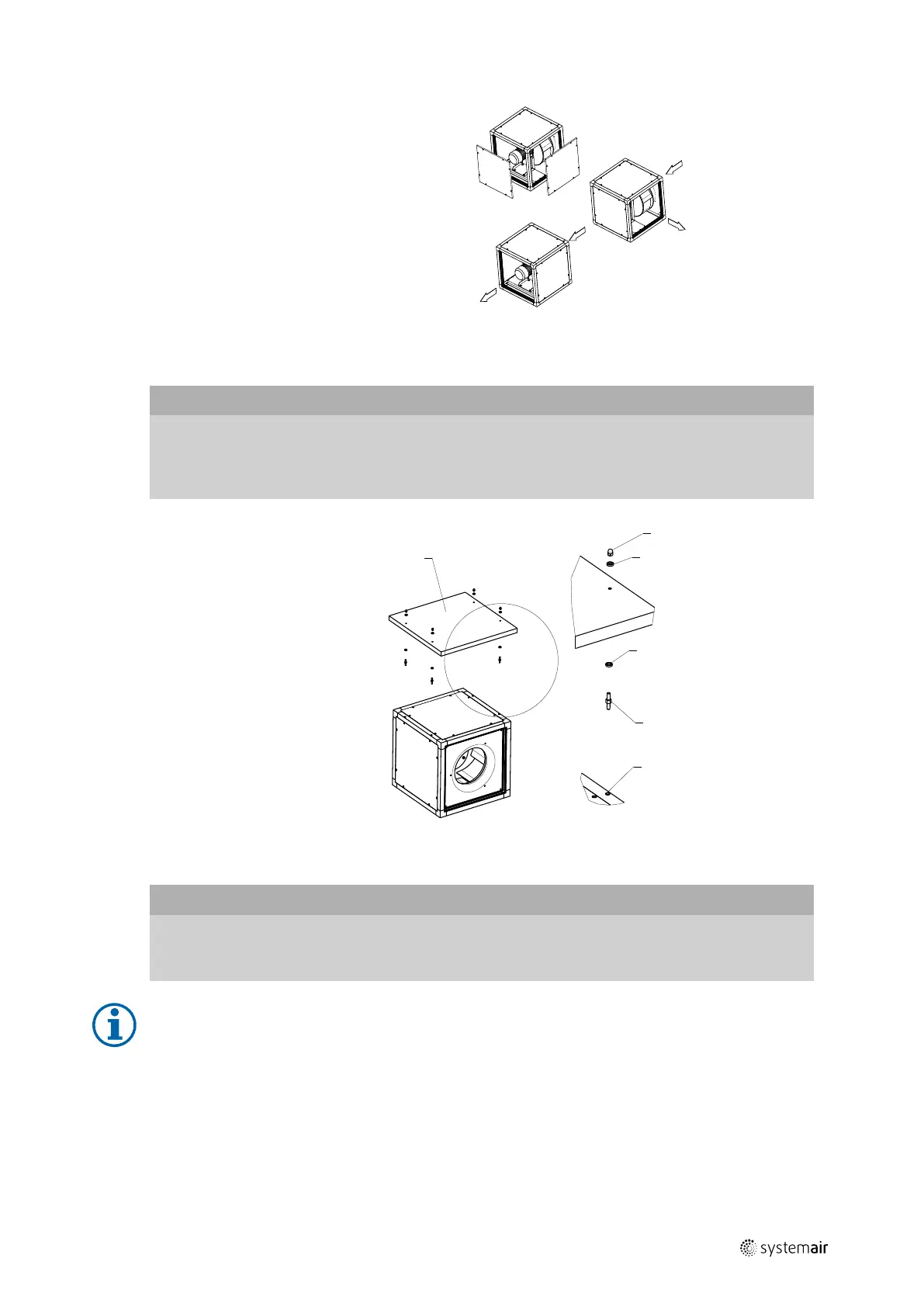

1. Multibox with direct air direction
(factory assembly)
2. Multibox with 90° air direction
3. Change of air direction
1.
2.
3.
8.7 Weather protection roof (WSD)
Important
Damage to the motor due to moisture.
♦ Only install outdoors with the weather protection roof from our accessory range, see chapter
Accessories.
♦ Install the weather protection roof as described below.
1
Weather protection roof (WSD)
1
2
3
4
5
6
2 Cap nut
3
Washer
4
Washer
5
Distance bolt
6
Clinch nut
8.8 Shaft extensions
Important
Damage to the motor and rotor.
The ball bearing of the motor and the balanced rotor may be damaged by forceful impacts.
♦ Attach the rotor and/or the shaft extension to the shaft or the rotor without forceful impacts.
Note:
The hub can be heated for easier assembly and dismantling, for example with a hot-air blower.
• Precondition for assembly: the wedge is in the intended groove.
• Tools: matching hexagonal wrench and suitable tool for removal, torque wrench for the taper clamping
bush.
8.8.1 Steel shaft extension
8.8.1.1 Disassembly
1. Loosen the screws of the sleeve with the hexagonal wrench.
| 001
