20
|
Access

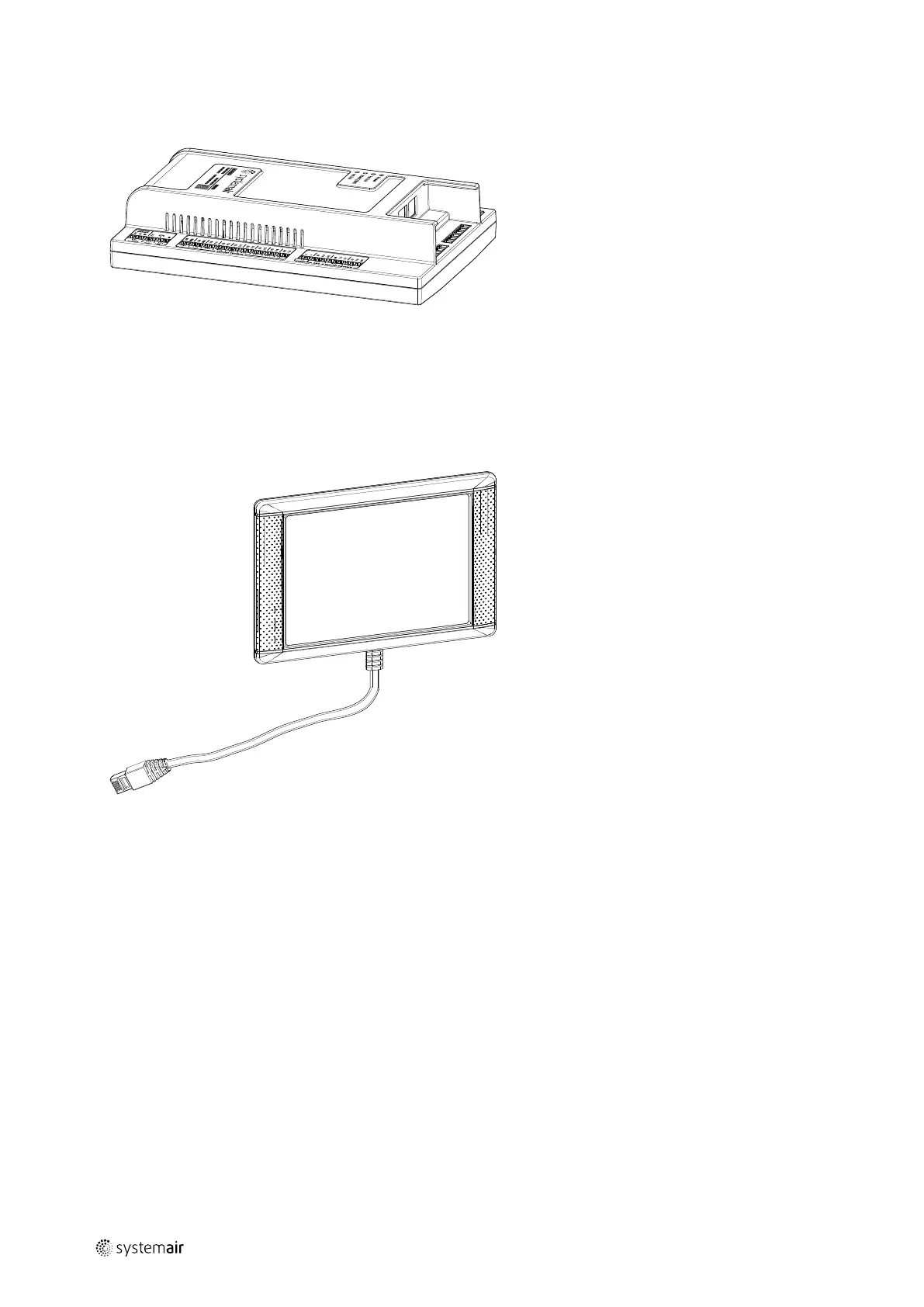

13.2 Control unit CU27-C
Connect NaviPad control panel and all accessories to control unit CU27-C, see chapter 13.3.1 and table 14.
Fig. 26
13.3 NaviPad control panel
NaviPad is the control panel for Systemair's air handling units and contains several selectable languages.
NaviPad is not for outdoor mounting. The protection class of the NaviPad control panel is IP54 and permitted tempera-
ture is 0-50° C. Communication between the panel and the control unit in Access control cabinet is possible with up to
100 meters of cable.
Fig. 27
254050 | A001
