28
| Technical data

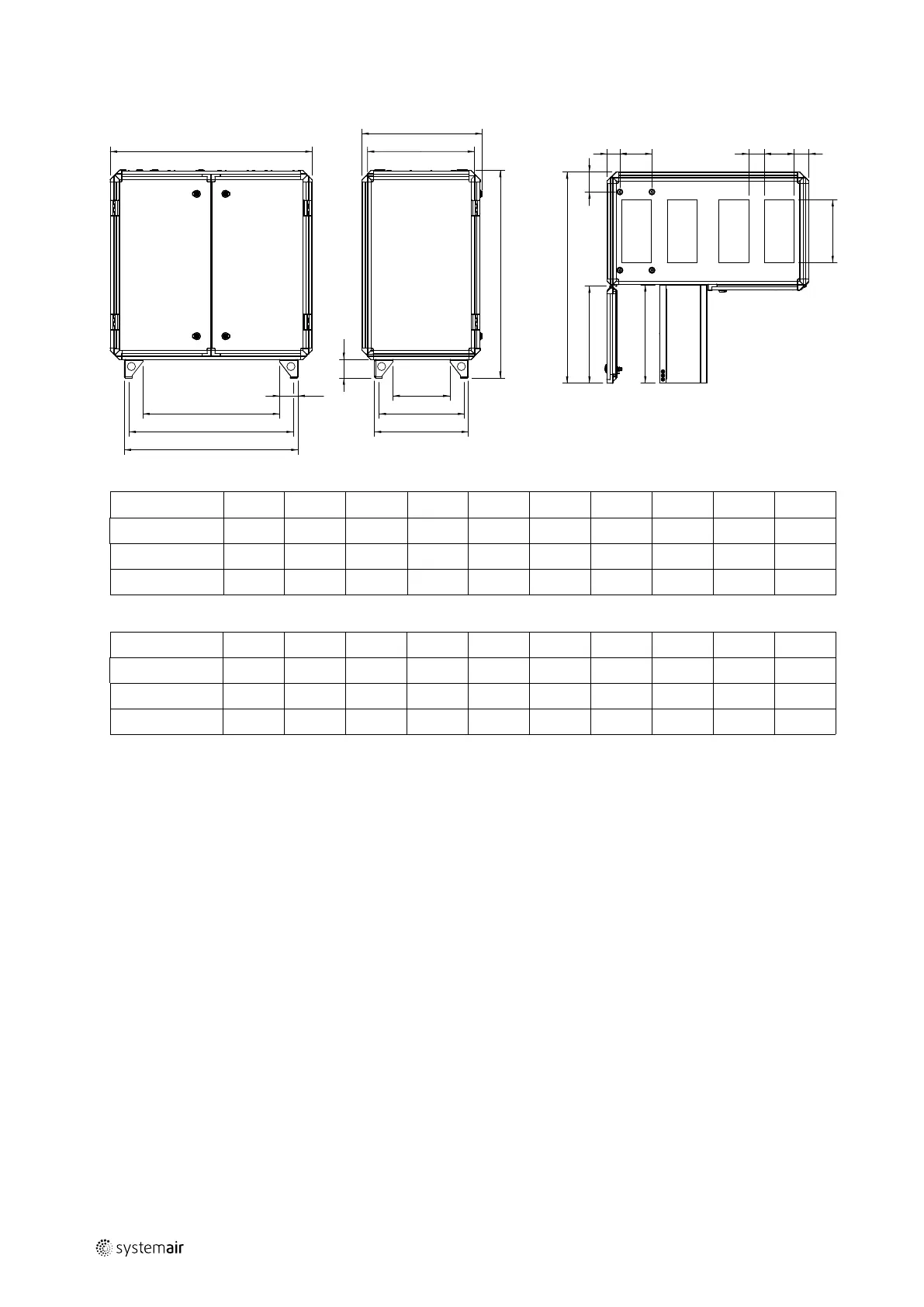

15.2 Dimensions Topvex TR
C
I
c/c H
G
B
118
A
D
c/c E
F
118
J
O
M LNR S
QK
B2
P
Fig. 35 Topvex TR20, Topvex TR25, Topvex TR35
Model
A B B2
1
C D
c/c E
F G
c/c H
I
Topvex TR20 1284 764 680 1320 1105 1055 869 598 548 362
Topvex TR25 1484 879 795 1320 1335 1285 1099 717 667 481
Topvex TR35 1604 972 888 1500 1455 1405 1219 810 760 574
1
The dimensions with front doors, hinges and back piece disassembled
Model
J K L M N O P Q R S
Topvex TR20 1344 617 92 190 100 400 624 127 81 204
Topvex TR25 1559 717 92 240 100 500 744 127 89 248
Topvex TR35 1708 775 122 250 110 500 837 127 99 268
254050 | A001
