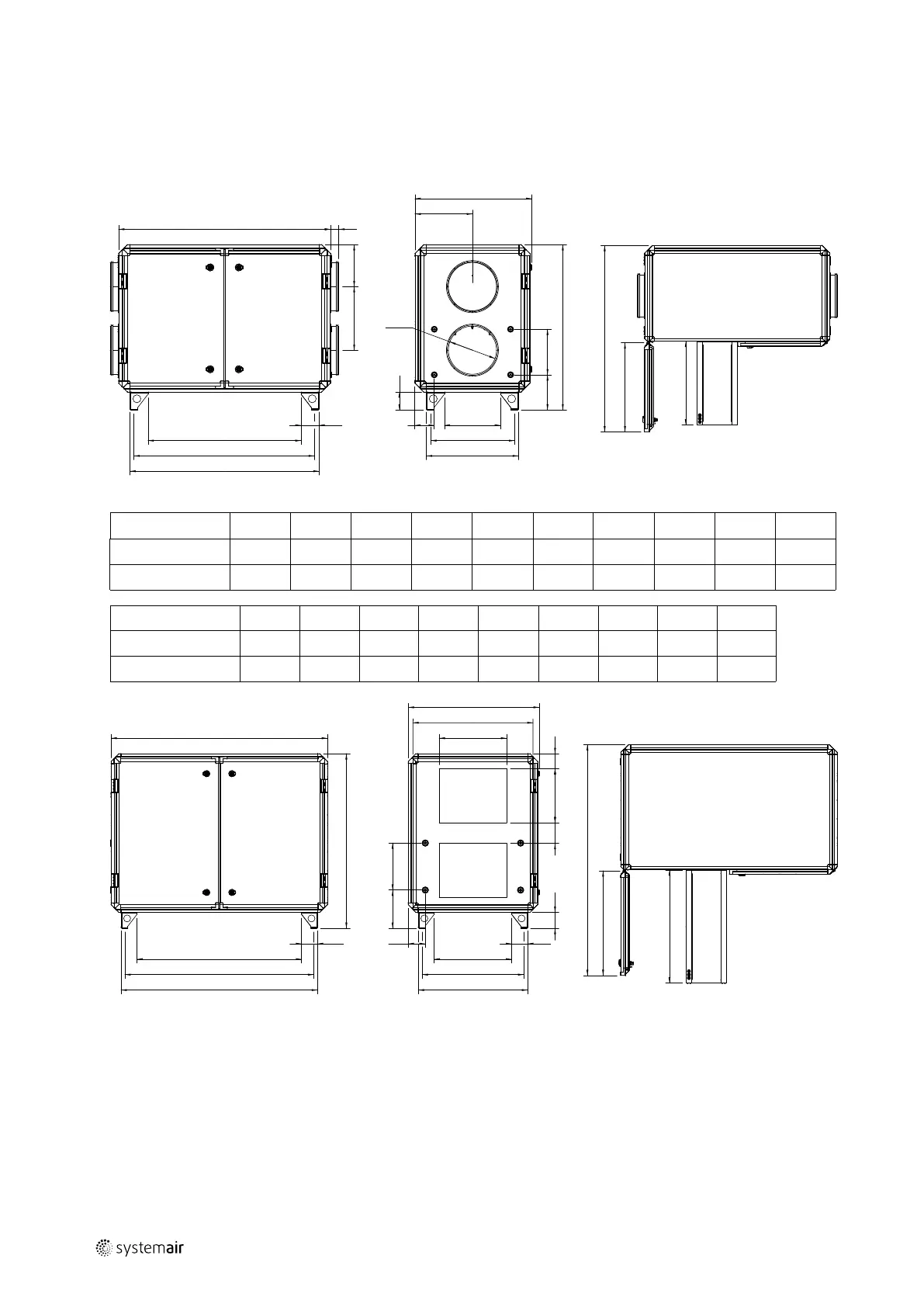

15 Technical data
15.1 Dimensions Topvex SR
All dimensions are in mm.
A
B
C
G
c/c H
I
118
F
c/c E
D
118
N
LM
Q R
55
J
øO
K
P
U
Fig. 32 Topvex SR20, Topvex SR25
Model
A B C D
c/c E
F G
c/c H
I J
Topvex SR20 1384 764 1080 1235 1185 999 602 552 366 1392
Topvex SR25 1487 878 1180 1335 1285 1099 717 667 481 1556
Model
K L M N øO P Q R U
Topvex SR20 665 274 415 375 315 624 230 295 127
Topvex SR25 715 281 500 433 400 744 230 348 127
1709
1603
1455
1219
c/c 1405
118
1293
118
810
c/c 760
574
971
127
348283
500
154 400 111
775
118
890 ¹
837
Fig. 33 Topvex SR35
1
The dimensions with front doors, hinges and back piece disassembled.
254050 | A001
