Taylor C717 Operator's Manual

Section 4
4-1
Models C709 & C717
Parts
4
Parts
Model C709

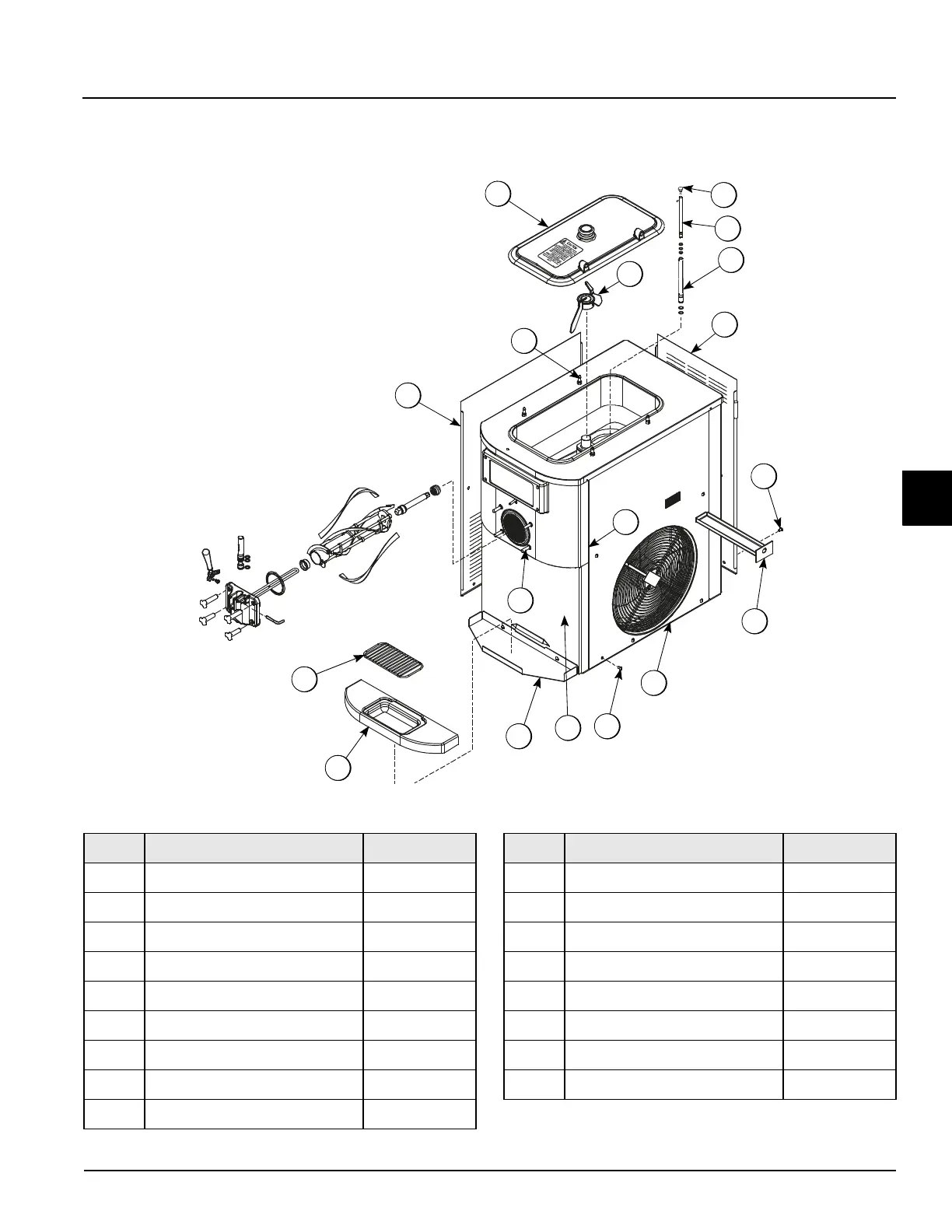

Figure 4-1
1
4
8
17
6
7
9
2
9
10
12
14
15
13
3
5
11
16
Item Description Part No.
1 Panel-Side-Left 056963-SP1
2 Pan-Drip 11-5/8 Long 027503
3 Pin-Retaining-Hopper CVR 043934
4 Kit A.-Cover-Hopper X65368
5 Blade A.-Agitator X56591
6 Tube A.-Feed-Outer-HT X34641
7 Panel-Rear 056077-SP1
8 Orifice 022465-100
9 Screw-1/4-20X3/8 RHM-SS 011694
Item Description Part No.
10 Panel A-Side-Right X57871
11 Panel A.-Front-Upper X59423
12 Panel A.-Front-Lower X58955
13 Stud-Nose Cone 055987
14 Shelf-Tray-Drip 056076
15 Tray-Drip 056858
16 Shield-Splash 049203
17 Tube A.-Feed-SC-Inner X32824-2
