Taylor C717 Operator's Manual

6-4
OPERATING PROCEDURES
Models C709 & C717
Operating Procedures
6

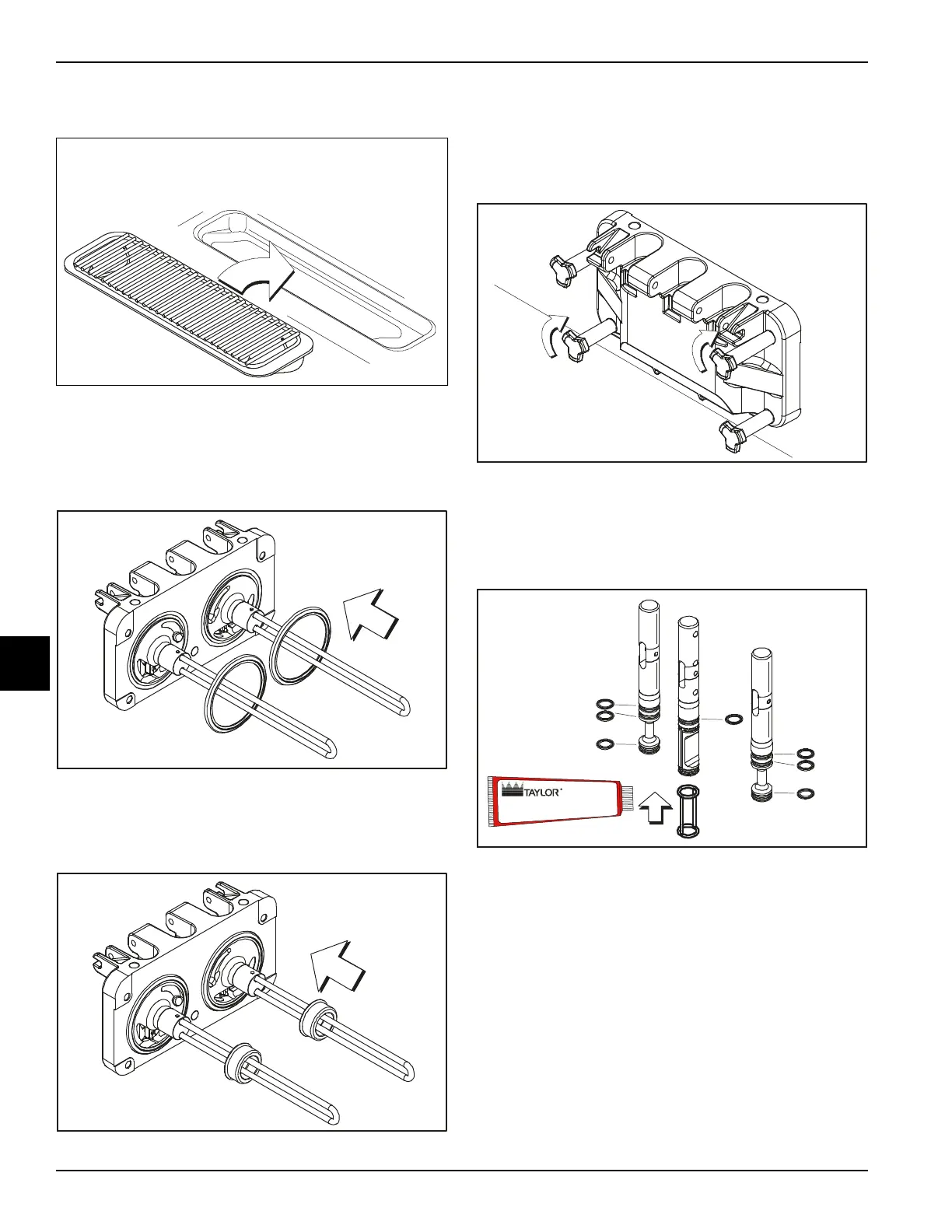

8. Install the front drip tray and splash shield under the
door spout.
Figure 6-12
Model C717 Freezer Door Assembly
1. Place the door gaskets into the grooves on the back
of the freezer door.
Figure 6-13
2. Slide the front bearings over the baffle rods. The
flanged edges should be against the door.
Do not lubricate the gaskets or bearings.
Figure 6-14
3. Insert the baffle rods through the beaters in the
freezing cylinders. With the door seated on the
freezer studs, install the handscrews with the longer
handscrews on top. Tighten equally in a crisscross
pattern to ensure the door is secure.
Figure 6-15
4. Slide the three O-rings into the grooves of each
standard draw valve. Slide the H-ring and O-ring into
the grooves of the center draw valve. Lubricate the
H-ring and O-rings.
Figure 6-16
10231
10511
10512
10514
10513
Apply the appropriate
Taylor approved food safe lubricant.
