USER INTERFACE
Models C709 & C717
User Interface
5
Symbol Definitions
To better communicate in the international arena,
symbols have replaced words on many of our operator
switches, function, and fault indicators. Your Taylor
equipment is designed with these international symbols.
The following chart identifies the symbol definitions.
Power Switch
When placed in the ON position, the power switch allows
control panel operation.
Fluorescent Display
The fluorescent display is located on the front control
panel. During normal operation, the display is blank. The
display is used to show menu options and notify the
operator if a fault is detected. On international models,
the display indicates the temperature of the mix in the
hopper.
Indicator Lights
Mix Low—When the Mix Low key is illuminated, the
mix hopper has a low supply of mix and should be refilled
as soon as possible.
Mix Out—When the Mix Out key is illuminated, the
mix hopper is almost completely exhausted and has an
insufficient supply of mix to operate the freezer. At this
time, the Auto mode is locked out and the freezer is
placed in the Standby mode. To initiate the refrigeration
system, add mix to the mix hopper and press the Auto
key
. The freezer automatically begins operation.
Heat Mode—When the Heat Cycle key is illuminated,
the freezer is in the process of a heat cycle. If enabled,
the Heat Cycle key can be pressed to start a heat cycle.
If disabled, the Heat Cycle key is inoperable. By default,
the Heat Cycle key is enabled.
Brush Clean Counter—When the Brush Clean Counter
display has counted down to 1, the machine must be
disassembled and brush-cleaned within 24 hours.
Standby Key
The standby feature maintains product temperatures in
both the hopper and the freezing cylinder below

40°F (4.4°C). This feature is useful during long “no sale”
periods to prevent overbeating and product breakdown.
If enabled, the Standby key can be pressed to place
the machine in the Standby mode. If disabled, the
Standby key is inoperable.
Remove the air orifice and turn the inner feed tube so the
pin rests on top of the outer feed tube. When Standby is
selected, the Standby key
illuminates, indicating the
Standby feature has been activated. In the Standby
mode, Wash and Auto functions are automatically
canceled.

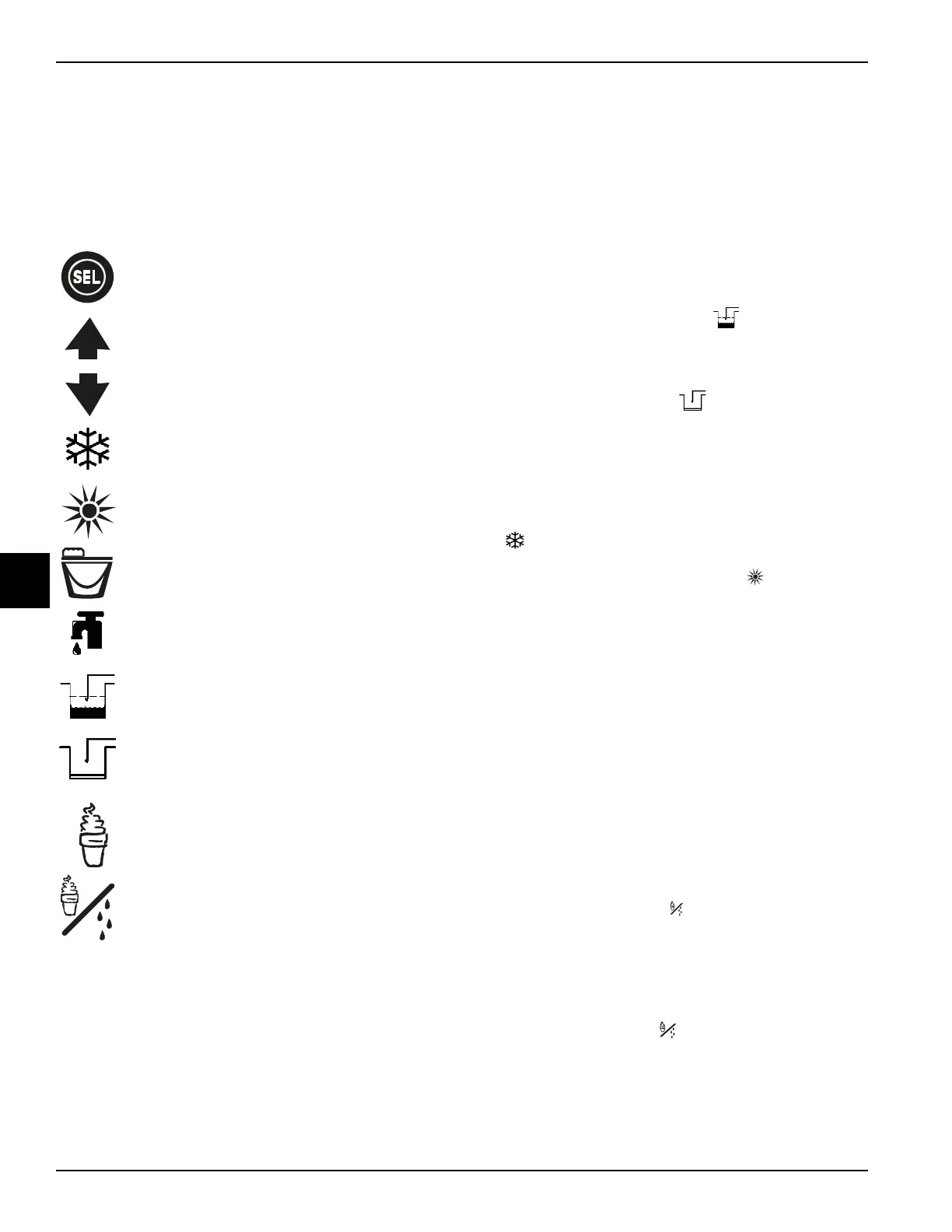

= Select
= Up Arrow
= Down Arrow
= Auto
= Heat Cycle
= Wash (Model C709)
= Wash (Model C717)
= Mix Low
= Mix Out
= Menu Display
= Standby
