Taylor C717 Operator's Manual

PARTS
4-5
Models C709 & C717
Parts
4

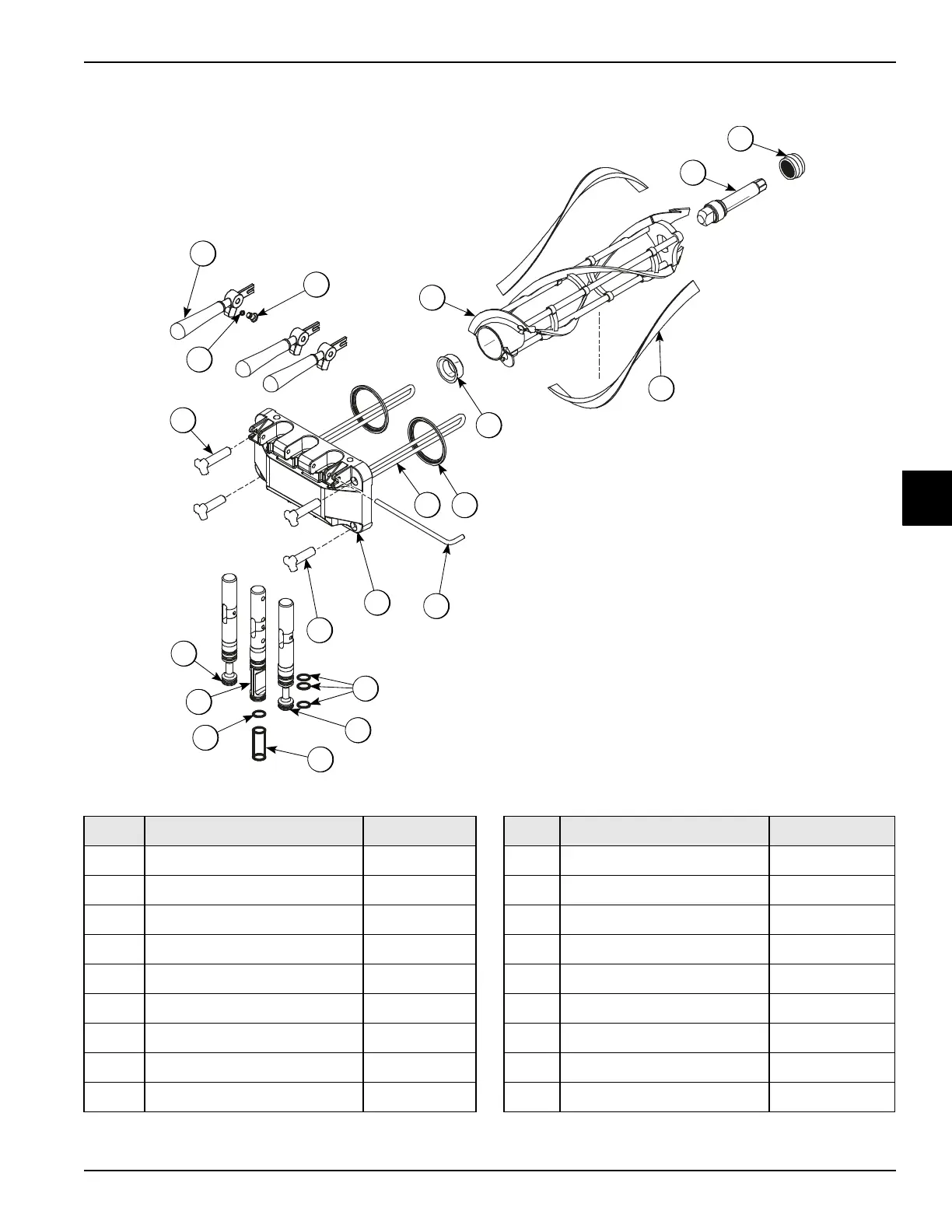

Model C717 Three-Spout Door and Beater Assembly
Figure 4-4
17
16
15
14
13
9
1
12
11
3
4
2
5
6
7
8
5
7
10
1a
Item Description Part No.
1 Door A.-3SPT*HT*LG BAF X59923-SER
1a Baffle A.-Long 4" w/Rad X50882
2 Handle A.-Draw-Welded X56421-1
3 O-ring-1/4 OD X .070W 50 015872
4 Screw-Adjustment-5/16-24 056332
5 Valve A.-Draw-L&R X59888
6 Valve A.-Draw-Center X59890
7 O-ring-7/8 OD X .103W 014402
8 Seal-Draw Valve 034698
Item Description Part No.
9 Pin-Handle-Twin 059894
10 Gasket-Door HT 4"-Double 048926
11 Nut-Stud Black 3.250 Long 058765
12 Nut-Stud Black 2.563 Long 058764
13 Bearing-Front 050216
14 Beater A.-3.4 qt.-Helicore X31761
15 Blade-Scraper-Plastic 035174
16 Shaft-Beater 032564
17 Seal-Drive Shaft 032560
