PARTS
Models C709 & C717
Parts
4

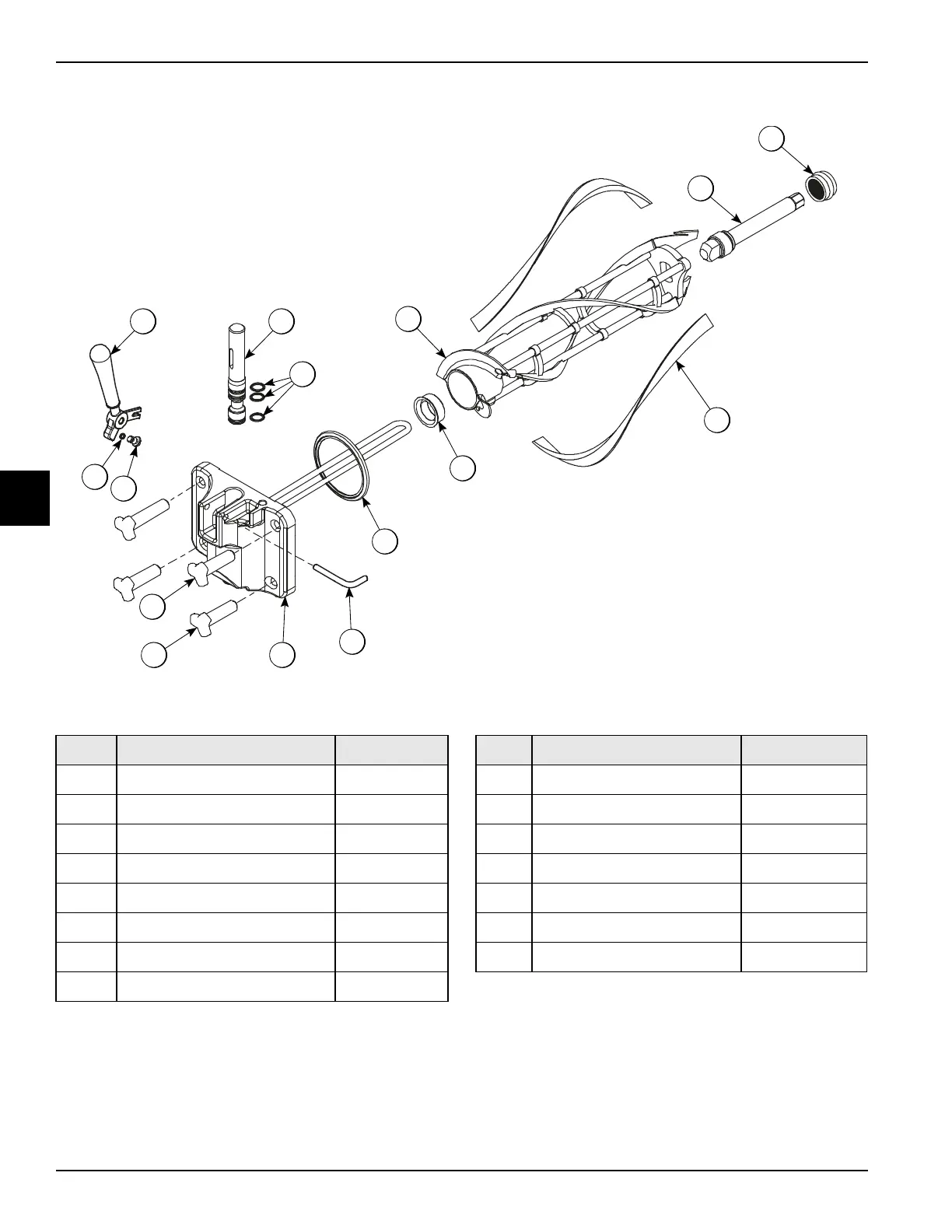

Model C709 Single-Spout Door and Beater Assembly
Figure 4-2
7
8
2
3
1
4
6
9
5
12
11
10
13
14
15
Item Description Part No.
1 Handle A.-Draw-Welded X56246
2 O-ring-1/4 OD X .070W 50 015872
3 Screw-Adjustment-5/16-24 056332
4 Nut-Stud Black 3.250” 058765
5 Nut-Stud Black 2.563“ 058764
6 Door A.-w/Baffle X57332-SER
7 Valve A.-Draw X55820
8 O-ring-Draw Valve-S.S. 014402
Item Description Part No.
9 Pin-Handle-SS 055819
10 Gasket-Door HT 4”-DBL 048926
11 Bearing-Front 050216
12 Beater A.-3.4 qt. Helicore X31761
13 Blade-Scraper-Plastic 035174
14 Shaft-Beater 056078
15 Seal-Drive Shaft 032560
