USER INTERFACE
Models C709 & C717
User Interface
5
Note: A record of Heat cycle data and lockout history
can be found in the Manager's Menu.
Manager's Menu
The Manager's Menu is used to enter the operator
function displays. To access the Manager’s Menu, press
the center of the cone key on the control panel. The
arrow keys, the SEL key, and the cone key are lit when
the Access Code screen appears.

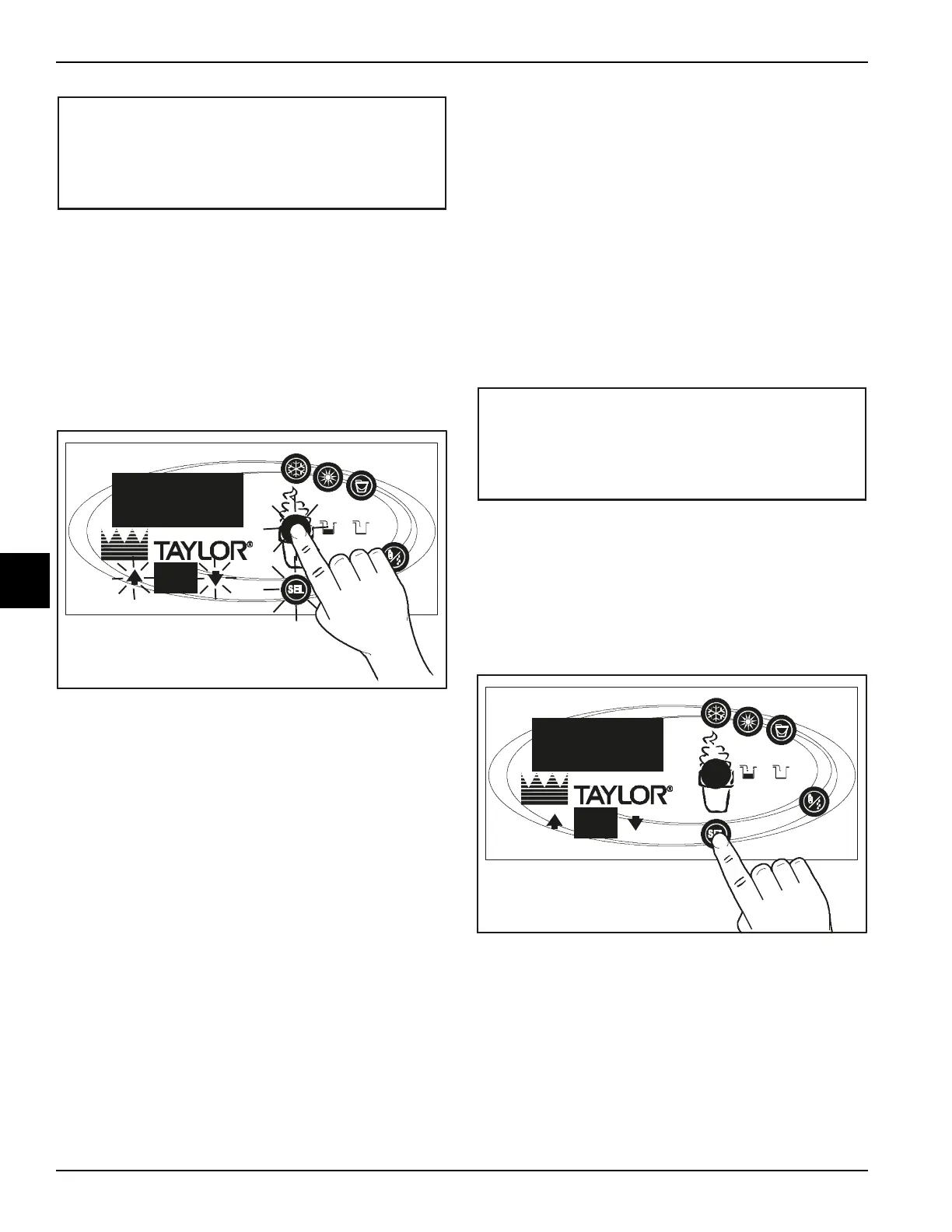

Figure 5-3
In the Manager’s Menu, the arrow keys and the SEL key
function as menu keys.
• Up Arrow—increases the value above the
cursor and is used to scroll upward in text
displays.
• Down Arrow—decreases the value above the
cursor and is used to scroll downward in text
displays.
• SEL—advances the cursor position to the right
and is used to select menu options.
There is a 2-minute timeout when you use the Manager's
Menu. While in the Manager's Menu, if no activity occurs
within a 2-minute period, the display exits to the main
menu. One exception to this timeout is for the Current
Conditions display.
Note: The machine continues operation in the mode it
was in when the Manager’s Menu was selected.
However, the control keys will not be lit and are
nonfunctional when the Manager’s Menu appears. The
control keys are functional in the Manager’s Menu when
the Current Conditions screen appears.
Entering Access Code
With the ENTER ACCESS CODE message on the
display, use the SEL key to set the first code number in
the cursor position. When the correct number is selected,
press the SEL key to move the cursor to the next number
position.
Continue to enter the proper access code numbers
(8309) until all four numbers are displayed, then press
the SEL key. The Manager's Menu list appears on the
screen, provided the correct access code is entered.
If an incorrect number is entered for the access code, the
display exits the Manager’s Menu when the SEL key is
pressed.
Figure 5-4
HEAT TREAT FAILURE
REASON
> HEAT FOR HEAT CYCLE
WASH TO BRUSH CLEAN
ENTER ACCESS CODE
83 0 9
__
To Next Page
