Model 210 Valve (I / O / S) Manual Service and Maintenance

Inspect the upper diaphragm washer for any defects. If none are present, install the

diaphragm washer. If there are visible defects (i.e. sharp edges, warpage, etc.), the

diaphragm washer should be replaced. Use caution when installing the washer and

ensure not to gall the threads.

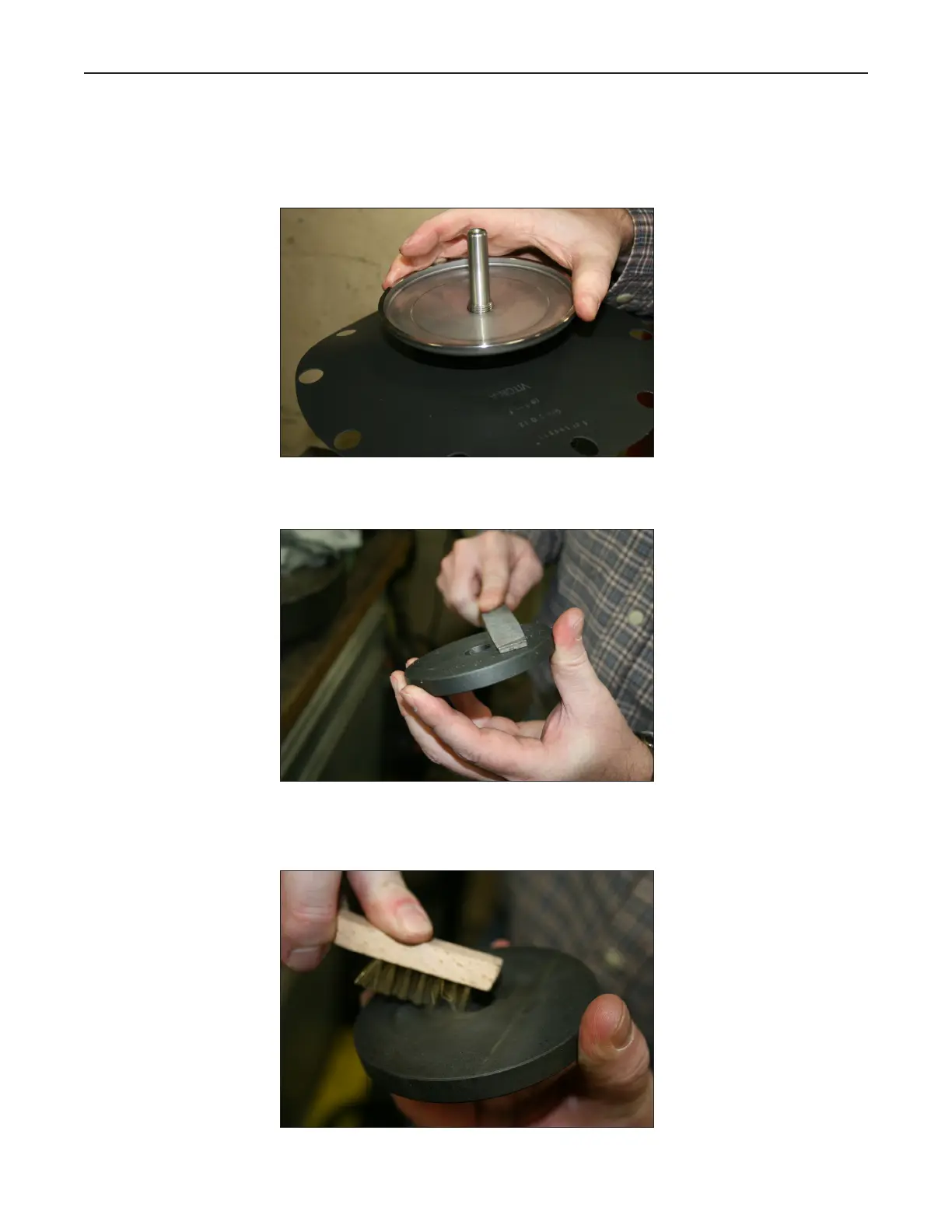

Figure 21 – Upper Diaphragm Washer

Using a fine file, dress the surfaces of the back-up plate to remove any burrs.

Figure 22 – Back-up Plate

Using a brass bristle brush, dress the inner diameter of the back-up plate to remove

any burrs.

Figure 23 – Back-up Plate
