Model 210 Valve (I / O / S) Manual Service and Maintenance

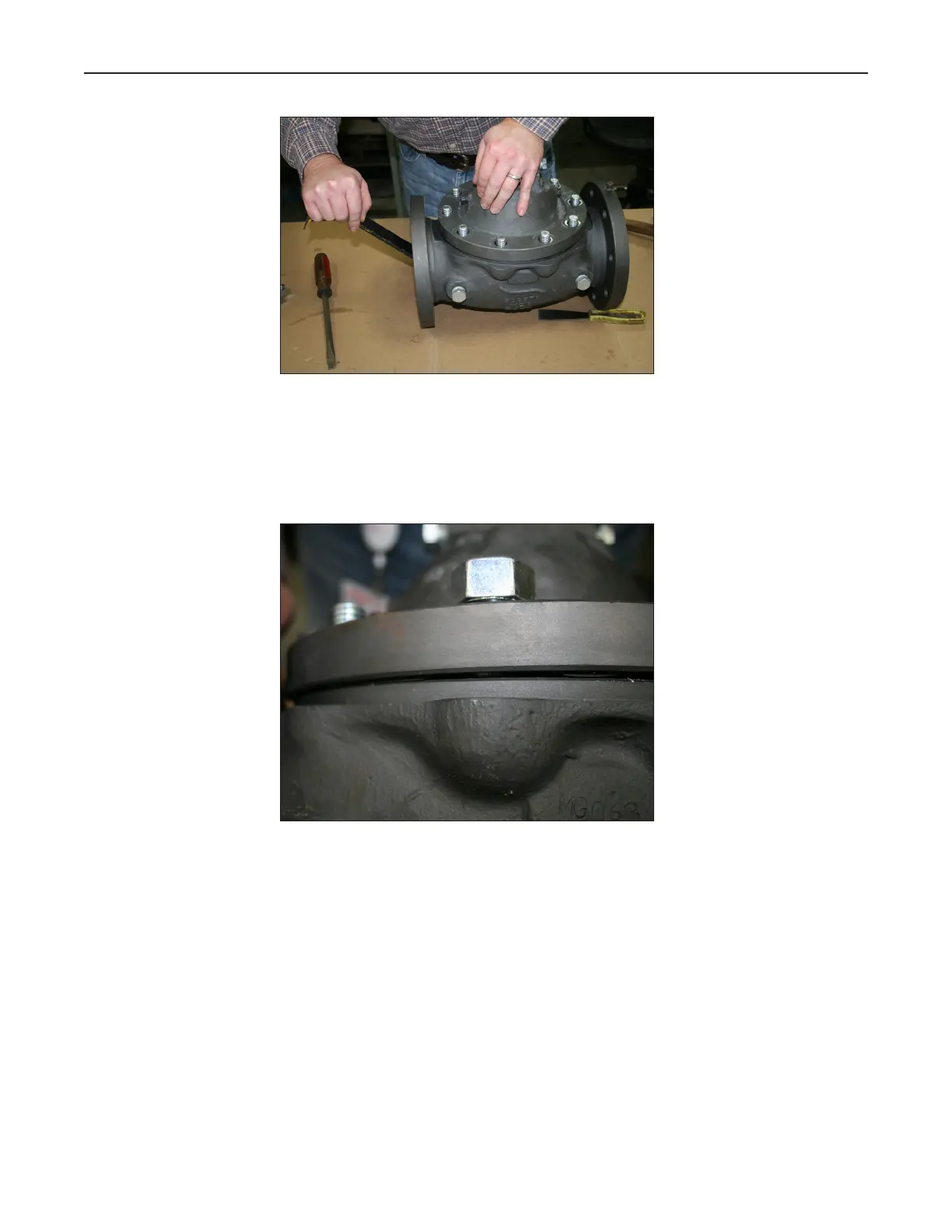

Figure 32 – Cover Installation
With the stem still lifted (if the valve has been removed from the piping), install every
other nut until pressure can be relived from the cover. While tightening the nuts, tuck
the excess of the diaphragm under the rabbit of the cover. DO NOT cut the excess
off. This can be done by using a screwdriver or a thin flat device. Ensure not to punc-
ture the diaphragm.
Figure 33 – Cover Installation
To Next Page
