Operating basics

AFG1000 Series Quick Start User Manual

Press #Cycles/Infinite to select

#Cycles. Use the general purpose

knob or the numeric keypad to set

the number of waveform cycles (from

1 to 1,000,000) in each burst.

If you select Infinite, then a

continuous waveform will be

generated at one trigger event and

will not stop until another trigger

event happens (the general purpose

knob on the front panel is pushed).

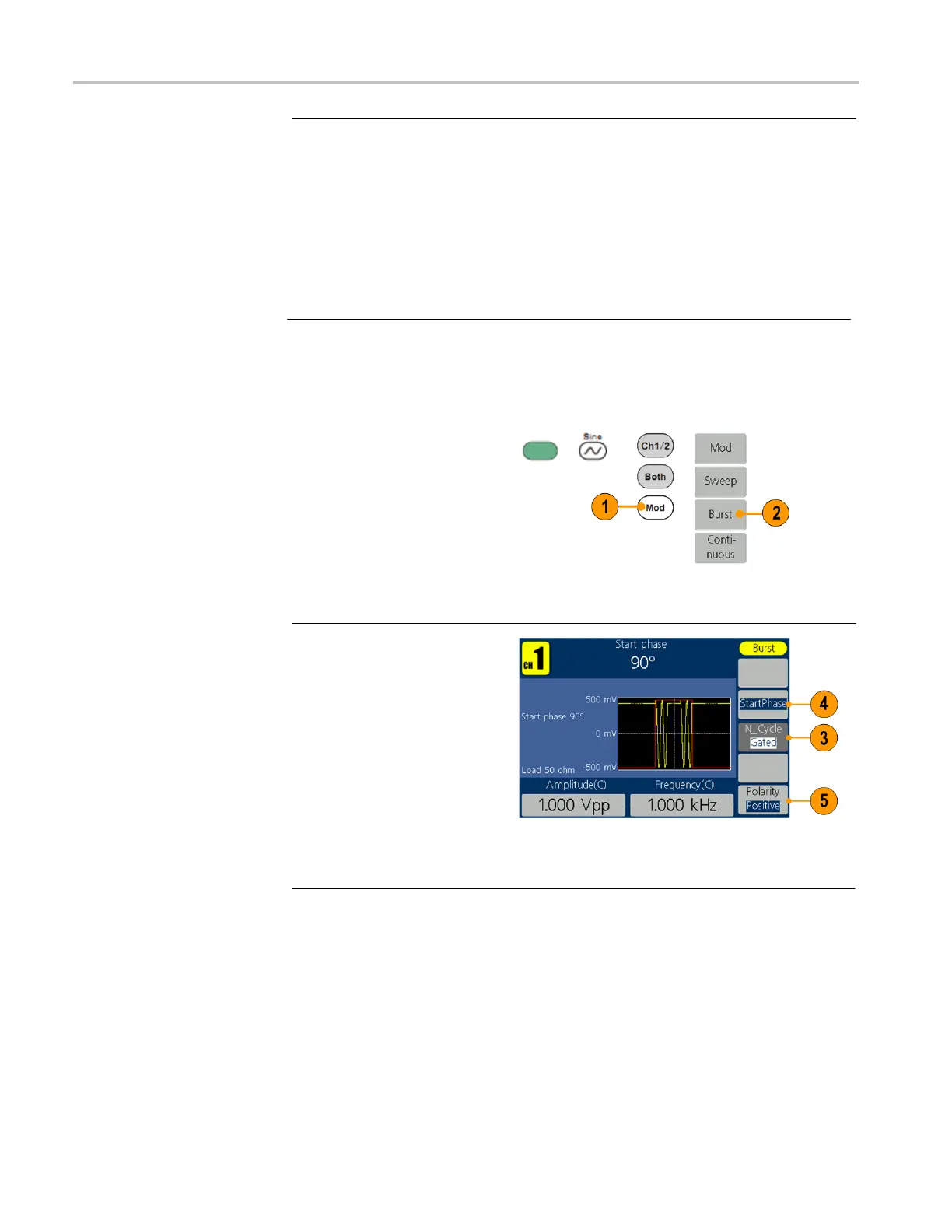

To generate a gated burst

waveform

Select a waveform and

then push the front-panel

Mod button.

In this example, use the

sine waveform as an

output waveform.

Press Burst.

NOTE: You cannot select

noise waveform as an output

waveform.

Press N_Cycle/Gated to

select Gated.

Press Start Phase to set

start phase. The start

phase defines the initial

phase where the

waveform output begins

at, and it may vary from

-360 to 360. For an

Arbitrary Waveform, 0° is

the first waveform point.

Press Polarity to set the

polarity of the gated burst

waveform.
