Tektronix AFG1022 User Manual

Getting started
AFG1000 Series Quick Start User Manual
7
Select a local language
When you power on the instrument for the first time, English is selected by
default.
After you select a desired language, all the bezel menus, pop-up
messages, and
built-in help are displayed in the specified language.

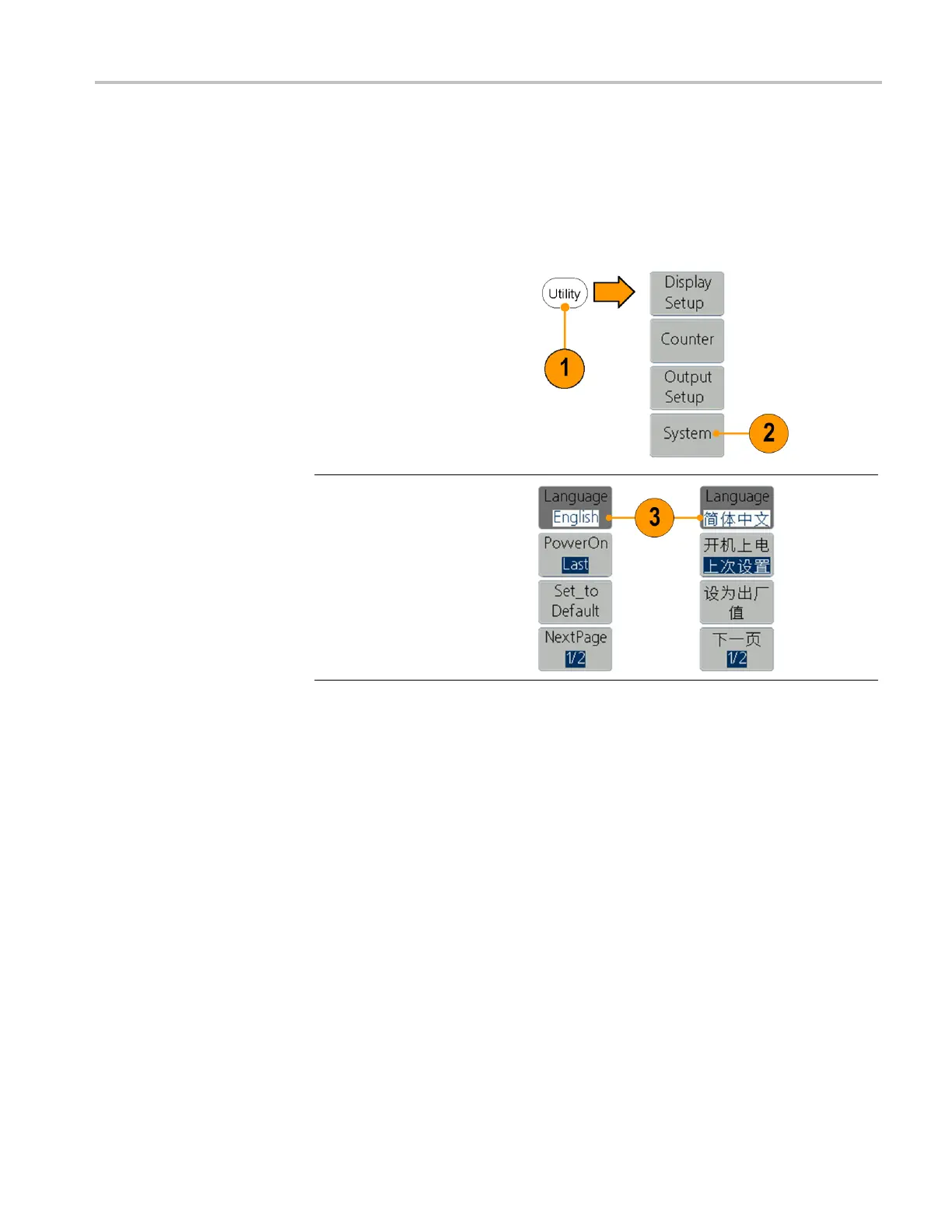

1. Push the front-panel Utility
button.
2. Press System.
3. Press Language to select
the desired language.
You can select from English,
and Simplified Chinese.
