Tektronix AFG3000 Series Technical Reference

Performance verification
Frequency/pe
riod test
This test verifies the frequency accuracy of the arbitrary function generator. All
output frequencies are derived from a single generated frequency. Only one
frequency po
int of channel 1 is required to be checked.
1. Connect the arbitrary function generator to the frequency counter as shown in
the followi
ng figure.

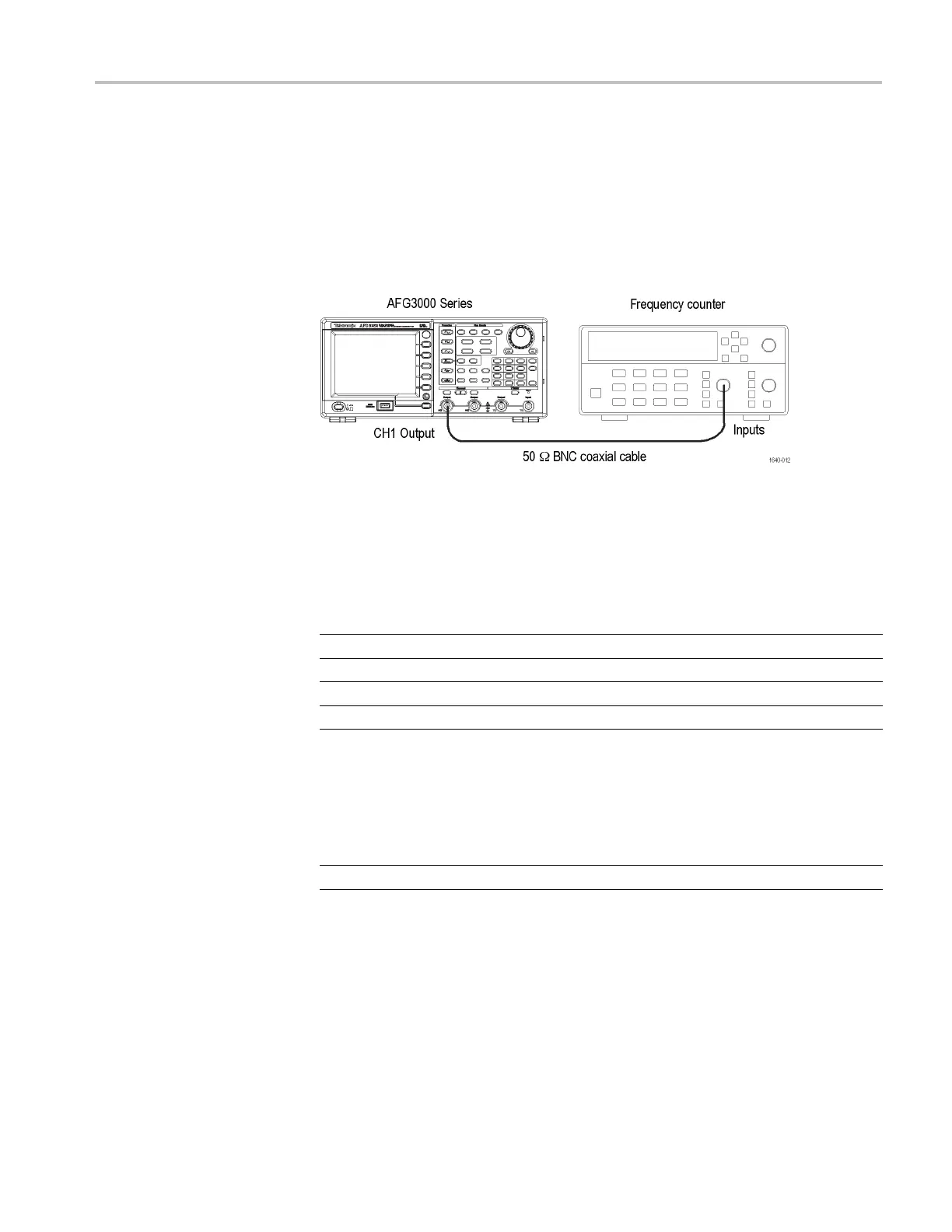

Figure 3: Frequency/period test
2. Push the D efault front-panel button and the OK menu button to rec all the
arbitrary function generator default setup.
3. Set up the arbitrary function generator using the following steps:
Select menu Setting Operation
Func
tion
Sine Sine (front)
Freq
uency
1.00
0000 MHz
Frequency/Period (front)
Amp
litude
1.0
0 Vpp
Amplitude/High (front)
Channel 1 Output On On (front)
4. Check that reading of the Frequency Counter is between 0.999999 MHz and
1.000001 MHz.
5. Set up the arbitrary function generator using the following steps:
Select menu Setting Operation
Function Pulse
Pulse (front)
6. Check that reading of the frequency counter is between 0.999999 MHz and
1.000001 MHz.
AFG3000 Series Specifications and Performance Verification 49
