Tektronix AFG3000 Series Technical Reference

Performance verification
Rise-Fall time test
This test verifies the pulse rise time of the arbitrary function genera t or.
1. Connect the arbitrary function generator to the oscilloscope as shown in the
following figure.

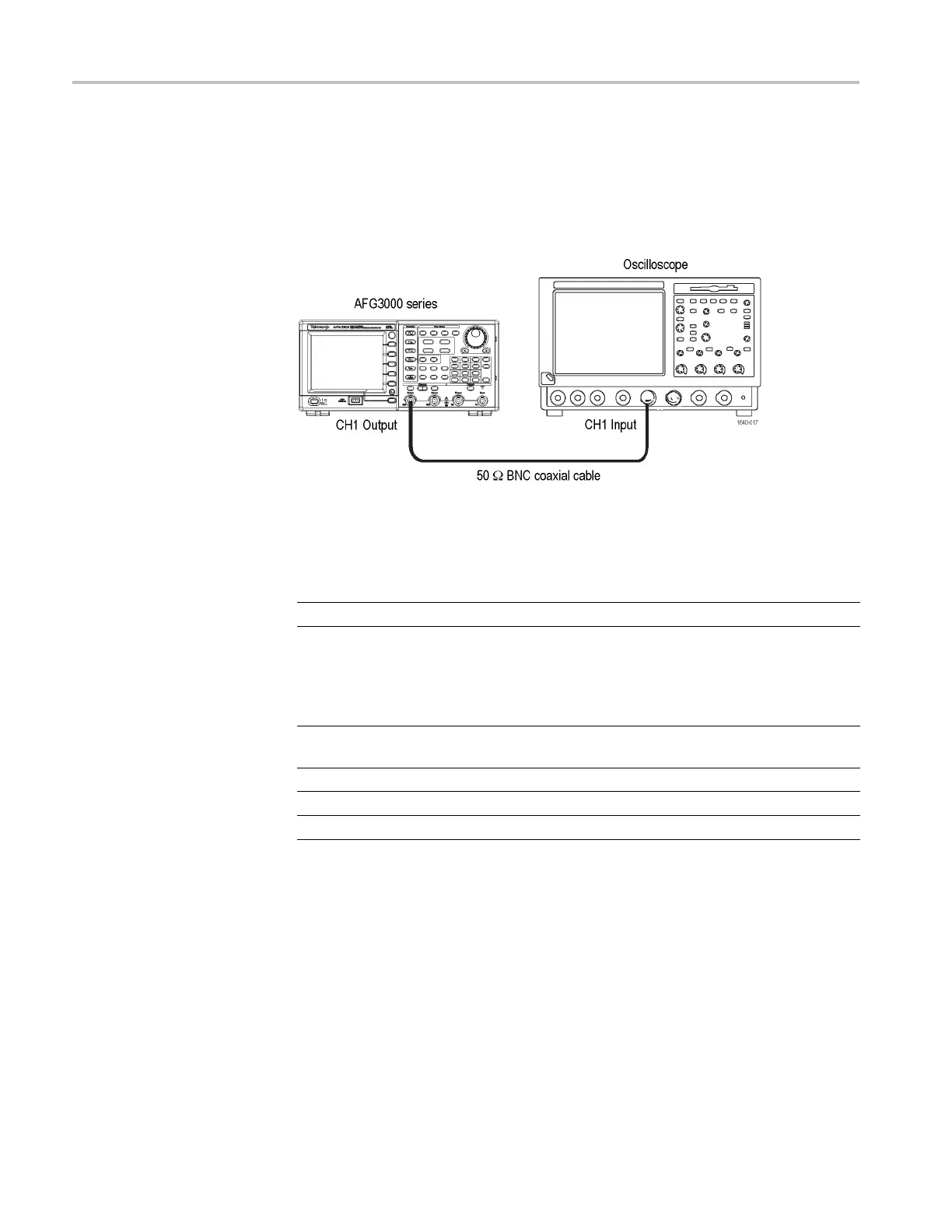

Figure 12: Rise-Fall time tests
2. Set up the arbitrary function generator using the following steps:
Select menu Setting Operation
Functi
on
Square Square (front)
Frequ
ency
2.00 MHz: AFG3011 /
3011C
10.00
MHz: AFG302xB
/ 302xC / 305xC / 310x
/ 310xC / 325x / 325xC
Frequency/Period (front)
Amplitude Units Vpp
TopMenu > Amplitude/Level Menu >
-mo
re- > Units > Vpp
Amplitude 1.0 Vpp
Amp
litude/High (front)
Of
fset
0.0 V
To
pMenu > Offset/Low (front)
Ch
annel 1 Output
On On
(front)
3. Set up the Oscilloscope so the square waveform of 5 division amplitude is
displayed.
4. Verify that the rise/fall time o f the square waveform on the oscilloscope at
each amplitude is equal to or less than the limit specified in the following
tables. Use 10-90% reference level for rise/fall time m easurement.
5. (Two channel models only) Repeat steps 2 through 4 for the channel 2 output.
64 AFG3000 Series Specifications and Performance Verification
