Analyze Wavefor
mData
Customizing an Automatic Measurement
You can customize automatic measurements by using gati ng, taking a snapshot, or setting the high and low levels.
Gating
Gating confines the m easurement to a certain portion of a waveform. To use:

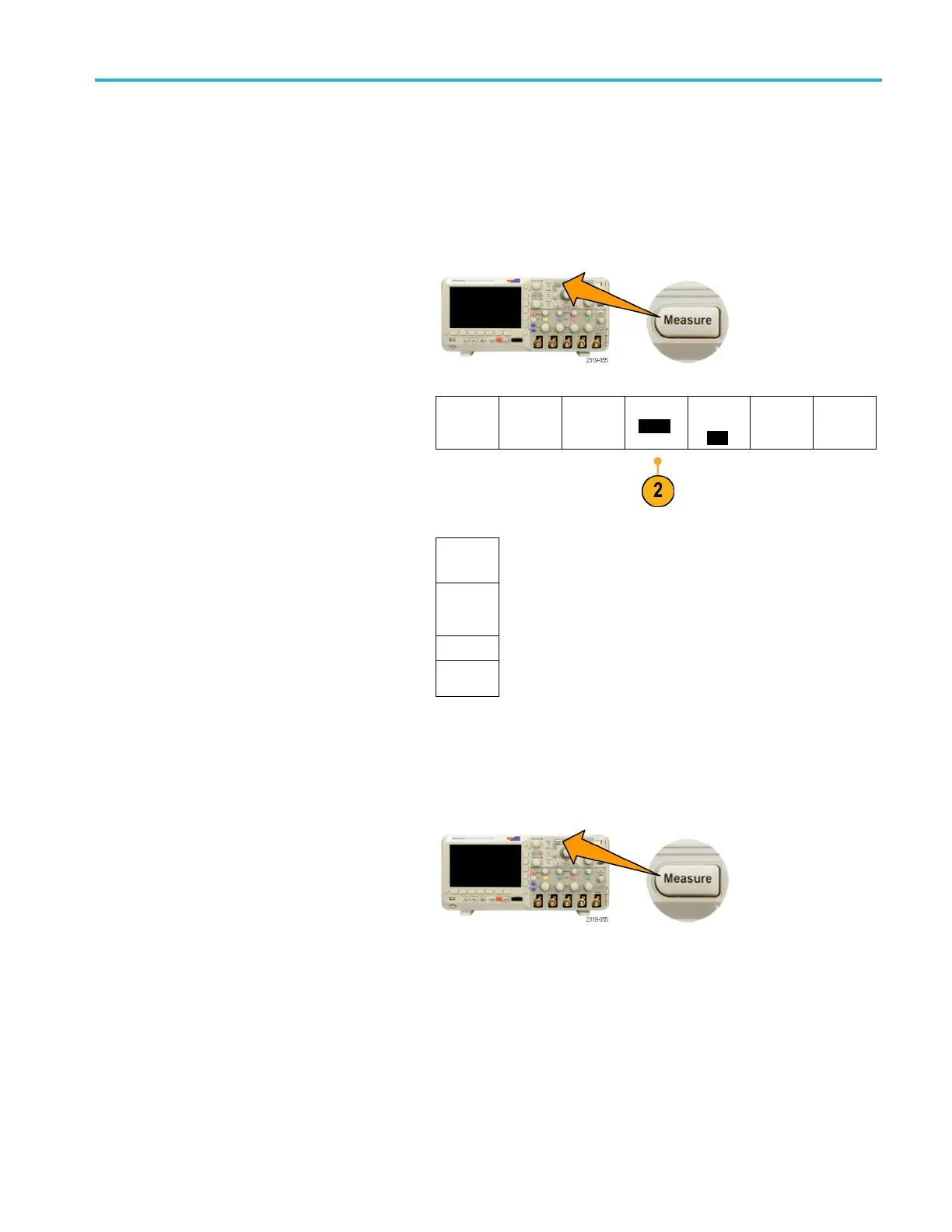

1. Push Measure.
2. Push Gating.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Gating
Screen
High-Low
Method
Auto
Bring
Cursors
On Screen
Configure
Cursors
3. Position the gates from the side-bezel menu
options.
Gating
Off
(Full
Record)
Screen
Between
Cursors
Snapshot All
To see all the single-sourced measurements at one time:
1. Push Measure.
MSO2000B and DPO2000B Series Oscilloscopes User Manual 93
