Saving and Recal
ling Information

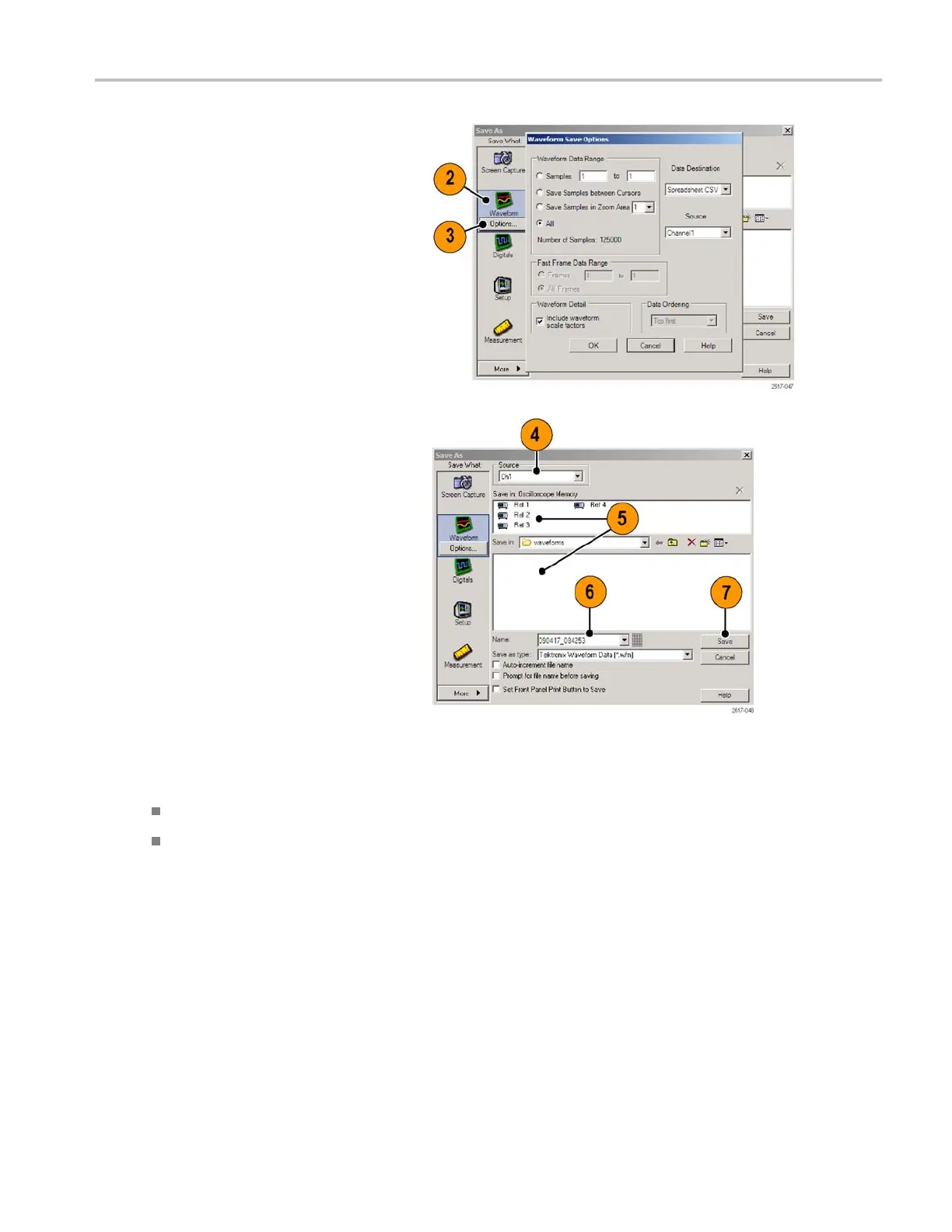

2. Click Waveform.
3. Click Options... to specify the Waveform
Data Range, FastFrame Data Range,
Waveform Deta
il, Data Destination,
Source, or Data Ordering; otherwise,
skip to step 4.
4. Select the Source.
5. You can either save the w aveform as a
reference waveform in the instrument
memory or as a .wfm file in a W indows
directory. To save the waveform as a
reference, select Ref 1–4. To save as a
.wfm file, select the location where you
want to save the waveform.
6. If you are saving as a .wfm file, type i n a
file name, or use the default.
7. Click Save.
Quick Tips
Select Auto-increment file n ame to save similar waveforms without having to retype the entire name.
To quickly save m u lti p le waveforms, select Set Front Panel Print Button to Save, and then click Save. You can now
save a waveform by pushing the front-panel Print button.
