Tektronix DPO7054 User Manual

Getting Acquain
tedwithYourInstrument
DPO7000

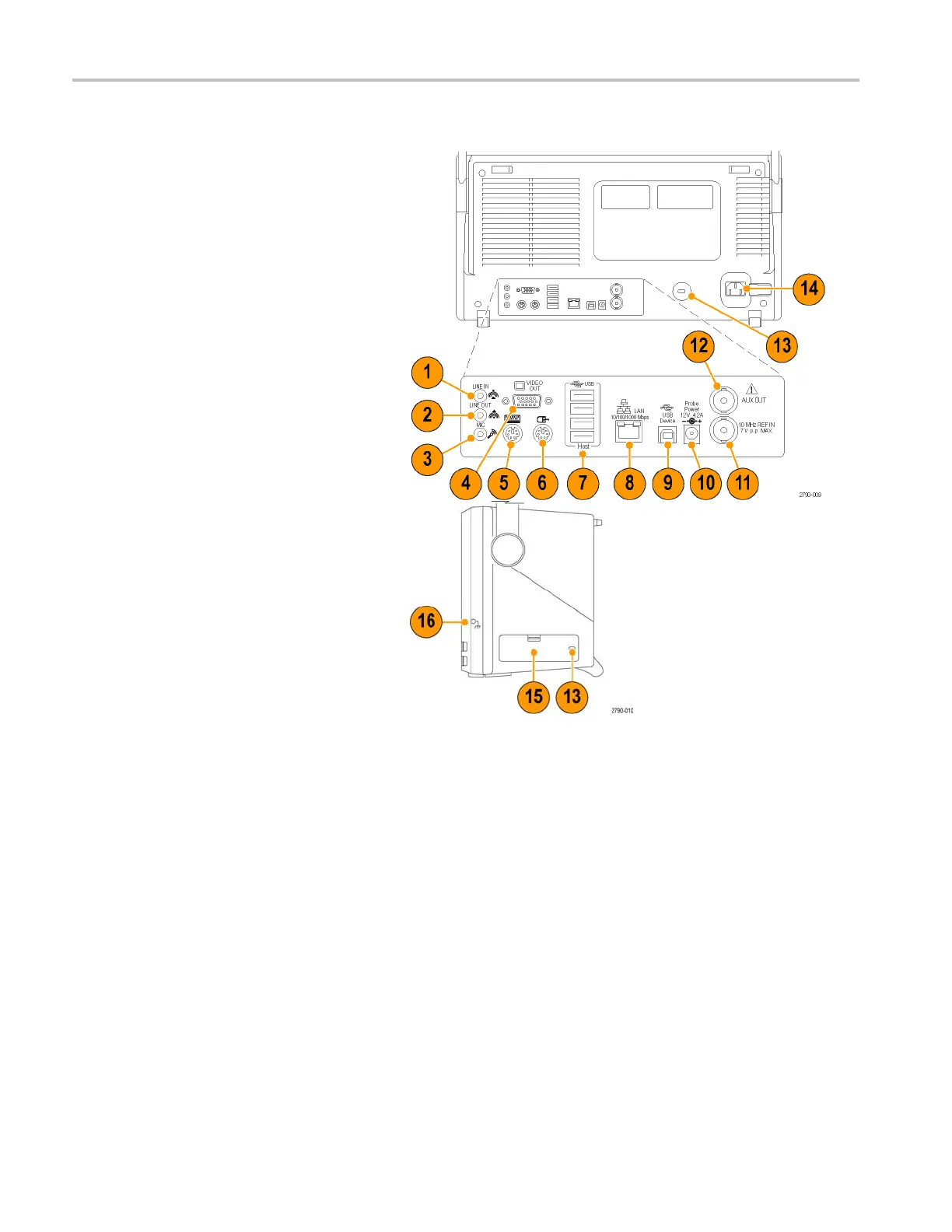

1. USB host ports
2. Video port to c
onnect a monitor
NOTE. Some instruments may have
additional audio connectors.
3. Mic connector for microphone
4. Line Out connector for speaker
5. O scilloscope Only XGA Out video port to
connect a monitor
6. Printer c onnection
7. Line In connector
8. RJ-45 LAN connector to connect to
network
9. Centroni
cs Parallel Port
10. COM 1 seri
al port
11. PS-2 con
nector for mouse
12. PS-2 con
nector for keyboard
13. Rear spe
aker out
14. Side sp
eaker out
15. CTR Bas
s speaker
16. Remova
ble hard disk drive
17. GPIB p
ort to connect to controller
18. Auxil
iary output
19. Chann
el 3 output
20. Exter
nal reference input
DPO
7000 Series
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 19

Tektronix DPO7054 Specifications

General

Brand	Tektronix
Model	DPO7054
Category	Test Equipment
Language	English
