Tektronix Phaser 740 User Manual

Service Guide
115
Table 2 FRU part list of the printer cabinet
Fig 2
parts
Part
number
Serial number
Effective Discont’d
Qty Name and description
1 118-9891-00 1 Lower rear cover
2
118-9889-00
118-9890-00
116-0850-00
116-0851-00
1
1
1
1
Phaser 740
Upper rear cover (110 VAC)
Upper rear cover (220 VAC)
Phaser 750
Upper rear cover (110 VAC)
Upper rear cover (220 VAC)
3 118-9888-00
116-0849-00
1
1
Top cover with Phaser 740 logo
Top cover with Phaser 750 logo
4 118-9979-00
116-0853-00
1
1
Left side cover (Phaser 740)
Left side cover (Phaser 750)
5 118-9522-00 1 Multi-purpose feed tray assy
6 118-9543-00
116-0939-00
1
1
Left side door assy (Phaser 740)
Left side door assy (Phaser 750)

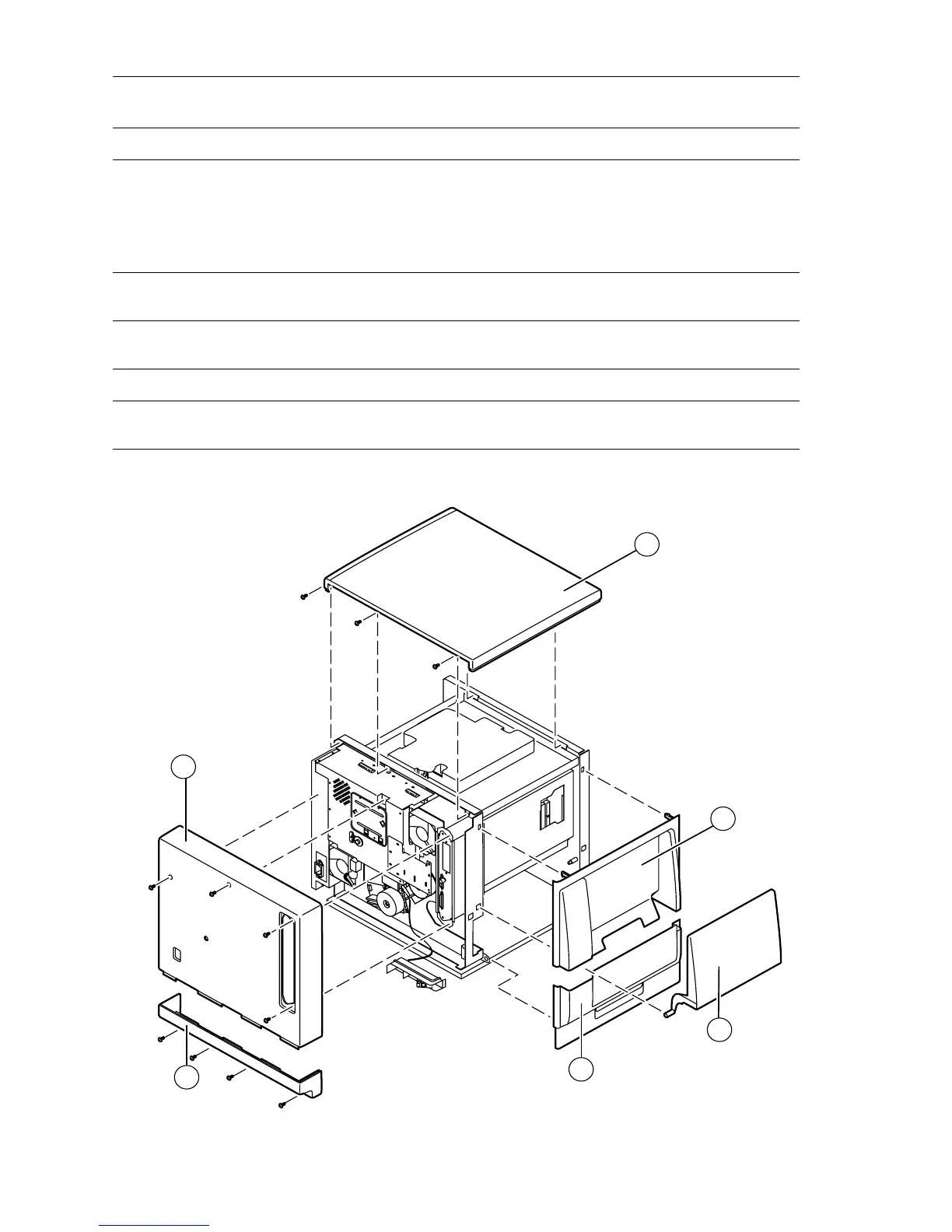

Figure 2 Cabinet FRUs
3102-27
3
4
6
5
2
1
